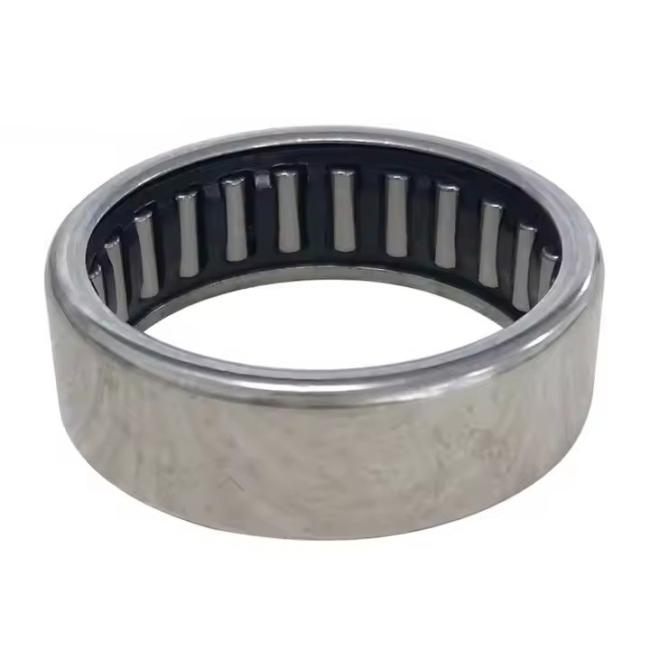

Bearing Needle 17x24x15 mm Sizes Needle Roller Bearings HK 17X24X15

Price Negotiable

Price: 1-50USD/PC

MOQ: 500

Delivery Time: 45 days

Brand: SFT

Product Description

Bearing Needle 17x24x15 mm Sizes Needle Roller Bearings HK 17X24X15

Product Description

Data Sheet

Item	HK
Material	ST14
Inner dia.	17 mm
Outer dia.	24 mm
Width	15 mm
Delivery time	7-10days
Package	Wooden box, tube, pulley, etc
Application	fishing machinery, ATM, Counting machine, Printer, copier, etc
OEM	Accept

Feature

HK is a one way needle clutch which applied flexibly of the technology of small bearings ,and

make the structure more compact as well as higher performance.

Different Sizes For Your Reference

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimension			Basic Load Rating		Limiting Speed
Shaft Diameter	Curent Code	Original Code	Mass Approx	Fw	D	C	Dynamic	Static	Oil
mm	Curent Code	Original Code	g	mm			N		rpm
15	HKl5X20X12	7941/15	8.4	15	20	12	5800	6000	14000
	HKl5X20X16	7942/15	11.4	15	20	16	6000	6200	14000
	HKl5X20X20	7943/15	13.8	15	20	20	6100	6400	14000
	HKl512	37941/15	11.1	15	21	12	7000	8400	14000
	BKl512	35941/15	12.7	15	21	12	7000	8400	14000
	HKl514	47941/15	12.7	15	21	14	8500	10400	13000
	HKl515		14.2	15	21	15	9100	11400	13000
	BKl515			15	21	15	9800	11400	14000
	TAl515			15	22	15		11400	11400
	TAl515Z			15	22	15		11400	11400
	HMKl515			15	22	15
	HKl516	57941/15	15	15	21	16	9800	11400	14000
	BKl516	55941/15	16.5	15	21	16	9800	11400	14000
	HKl518			15	21	18
	HKl520			15	21	20
	HMKl520			15	22	20
	HKl522	SZ-439	20.4	15	21	22	10400	16500	14000
	BKl522		22	15	21	22	10400	16500	14000
	HKl5X22X12	7948/15	12.5	15	22	12	14300	18400	13000
	HKl5X22X12.5	7948/15K	13.5	15	22	12.5	14300	18400	13000
16	HKl6X21X06		5.5	16	21	6	4200	5300	12000
	HKl6X21X09		7.5	16	21	9	4400	5600	12000
	HKl610	27941/16		16	22	10
	HKl612	37941/16	11.7	16	22	12	7100	9200	14000
	BKl612	35941/16	13.8	16	22	12	7100	9200	14000
	HKl612K			16	22	12
	HKl614	47941/16	14.4	16	22	14	8800	9900	12000
	HKl616	57941/16	15.8	16	22	16	10100	14300	14000
	BKl616	55941/16	17.6	16	22	16	10100	14300	14000
	HKl616-Asl			16	22	16
	HKl617	SZ-435	18	16	22	17	12900	17200	12000
	HKl620	77941/20		16	22	20
	HKl622	87941/16	21.7	16	22	22	11100	17400	14000
	BKl622	85941/16	23.4	16	22	22	11100	17400	14000
17	HKl7X21.5X15	17BTMl5	10	17	21.5	15	6300	8600	11000
	HKl712	37941/17	12.2	17	23	12	6900	9300	13000
	BKl712	35941/17	14.5	17	23	12	6900	9300	13000
	HKl714	7941/17	14	17	23	14	6800	10200	10000
	HKl716	57941/17	15.9	17	23	16	8500	12500	10000
	BKl716			17	23	16	8500	12500	10000
	HKl718	7942/17	19	17	23	18	9500	10600	10000
	HKl720			17	23	20	10000	11800	10000
	HKl722	7943/17	17	17	23	22
	HK17X24X15		17	17	24	15	11200	12800	10000
	HKl7X25X14	37942/17K	17.7	17	25	14	13100	14700	10000
	HKl7X25X15.5		20	17	25	15.5	9320	10400	10000
	HKl7X25X18	57942/17K	23.5	17	25	18	9500	10600	11000
