FC 20 Needle Type One Way Lock Bearing FC20 Needle Roller Clutch Bearing

Price Negotiable

Price: 1-50USD/PC

MOQ: 500

Delivery Time: 45 days

Brand: SFT

Product Description

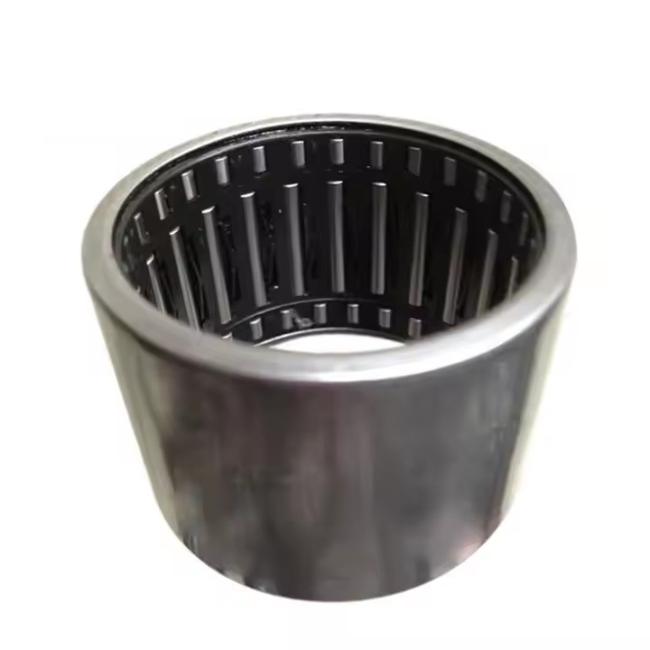

Needle Type One Way Lock Bearing FC20

Product Description

Features of FC one way lock bearing

♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .

SPECIFICATIONS
Model	FC20
Material	Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner diameter	20mm
Outer diameter	16mm
Thickness	16mm
Torque capacity	28.5Nm
Weight	17g
Package	roll pack
Delivery time	1 days for sample, 5-7 day for big order
Payment Terms	TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of fc one way lock bearing for your choice

Type	Weight(g)	Dimension
Type	Weight(g)	Fw	D	C	Rotational torque
FC4K	1	4	8	6	0.34
FC6	3	6	10	12	1.76
FC6K	3	6	10	12	1.76
FC8	4	8	14	12	5.3
FCL8K	3.5	8	12	12	5
FC10	4.8	10	16	12	6
FCL10K	4	10	14	12	5.3
FC12	11	12	18	16	12.2
FC14K	13	14	20	16	17.3
FC16	14	16	22	16	20.5
FC20	17	20	26	16	28.5
FC25	30	25	32	20	66
FC30	36	30	37	20	90
FC35	40	35	42	20	121
FCB8	10	14	14	20	5
FCB10	15	16	16	20	10
FCB12	18	18	18	26	12.2
FCB16	22	22	22	26	20.5
FCB20	27	26	26	26	28.5
FCB25	44	32	32	30	66
FCB30	51	37	37	30	90
FCB35	58	42	42	30	121
