1WC1216 One Way Needle Clutch Bearings for Fishing Reels
Price:
1-50USD/PC
MOQ:
500
Delivery Time:
45 days
Brand:
SFT
Product Description

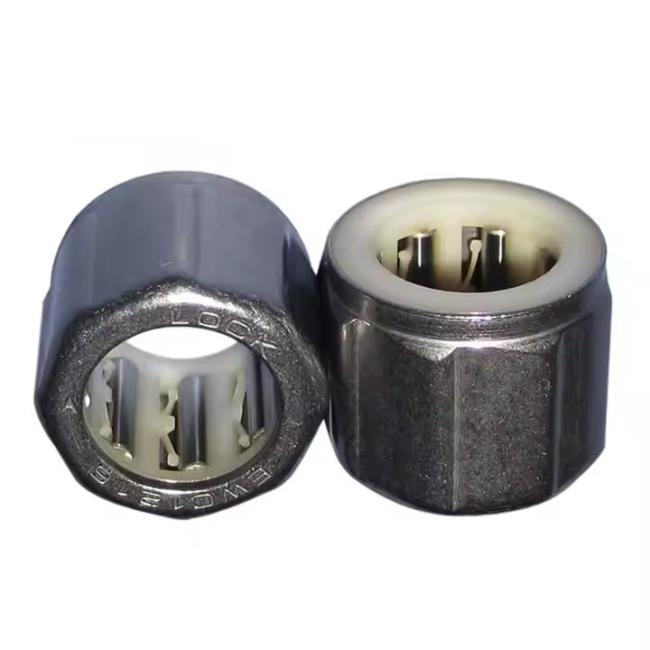

1WC1216 One Way Needle Clutch Bearings for Fishing Reels
Product Description
Features of 1WC1216 one way bearings
EWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
| Product name | EWC One way bearings |
| Model | 1WC1216 |
| Material | Outer ring: ST14, Shelf strength: nylon |
| Shaft diameter | 12mm |
| Outer diameter | 19mm |
| Thickness | 16mm |
| Torque capacity | 7.3Nm |
| Weight | 13g |
| Package | Plastic Bags + Carton Box |
Catalogue of ewc One way bearings for your choice
| Shaft Dia. | Model | Weight | DIMENSION | Torque Capacity | |||
| MM | g | Inner Dia. FW | Outer Dia. | Height | (N.m) | (kgf.cm) | |
| D1-D2 | B | ||||||
| 4 | EWC0406 | 1.2 | 4 | 8-8.4 | 6 | 0.08 | 0.8 |
| 1WC0406 | 1.5 | 4 | 8-8.4 | 6 | 0.15 | 1.5 | |
| 6 | EWC0606 | 2 | 6 | 8-8.4 | 6 | 0.19 | 1.9 |
| 1WC0606 | 2.2 | 6 | 8-8.4 | 6 | 0.33 | 3.5 | |
| EWC0608 | 2.2 | 6 | 10-10.4 | 8 | 0.25 | 2.5 | |
| 1WC0608 | 2.5 | 6 | 10-10.4 | 8 | 0.45 | 4.5 | |
| 1WC0612 | 3 | 6 | 10-10.4 | 12 | 0.9 | 9.5 | |
| 8 | EWC088.5 | 2.5 | 8 | 12-12.4 | 8.5 | 0.5 | 5.5 |
| EWC0809 | 2.5 | 8 | 12-12.4 | 9 | 0.88 | 9 | |
| EWC0812 | 5.5 | 8 | 14.2-15 | 12 | 1.18 | 12 | |
| 1WC0812 | 6 | 8 | 14.2-15 | 12 | 1.96 | 20 | |
| 1WC0815 | 8 | 8 | 14.2-15 | 15 | 2.65 | 27 | |
| 10 | EWC1007 | 7 | 10 | 16-17 | 7 | 1.2 | 10 |
| EWC1008 | 8 | 10 | 16-17 | 8 | 1.85 | 19 | |
| 1WC1009 | 8.5 | 10 | 14-14.4 | 9 | 2.25 | 23 | |
| EWC1010 | 8 | 10 | 16-17 | 10 | 1.18 | 12 | |
| 1WC1010 | 9 | 10 | 16-17 | 10 | 1.98 | 20 | |
| EWC1012 | 10 | 10 | 16-17 | 12 | 1.37 | 14 | |
| 1WC1012 | 11 | 10 | 16-17 | 12 | 2.35 | 24 | |
| 12 | EWC1209 | 10 | 12 | 18-19 | 9 | 3.04 | 31 |
| EWC1216 | 12 | 12 | 18-19 | 16 | 6.29 | 64 | |
| 1WC1216 | 13 | 12 | 18-19 | 16 | 7.3 | 75 | |
