High Speed Car Bearings NU408.C4 NUP2311.C3 Cylindrical Roller Bearing

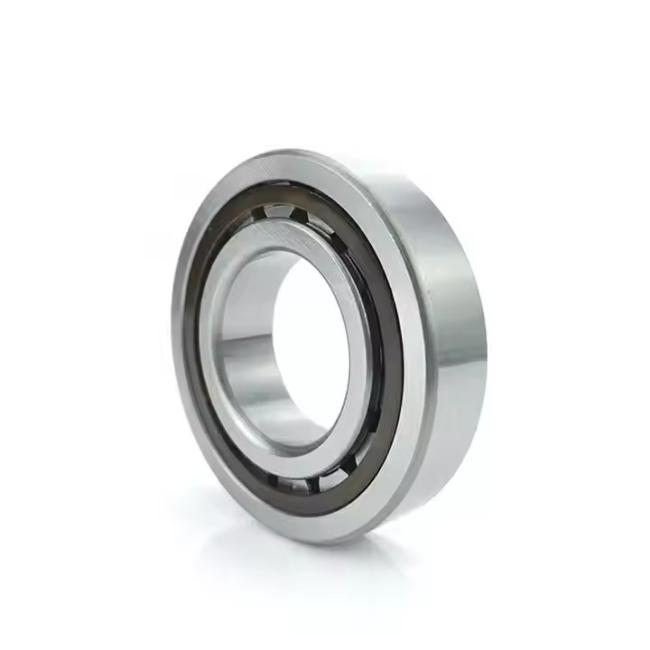

Chrome steel bearing NU408.C4 NUP2311.C3 cylindrical roller bearing

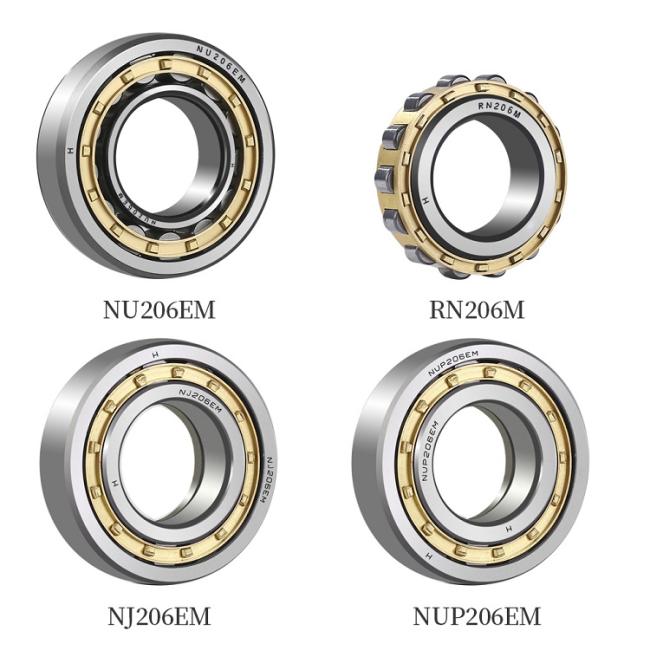

Types of cylindrical roller bearing:
N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.

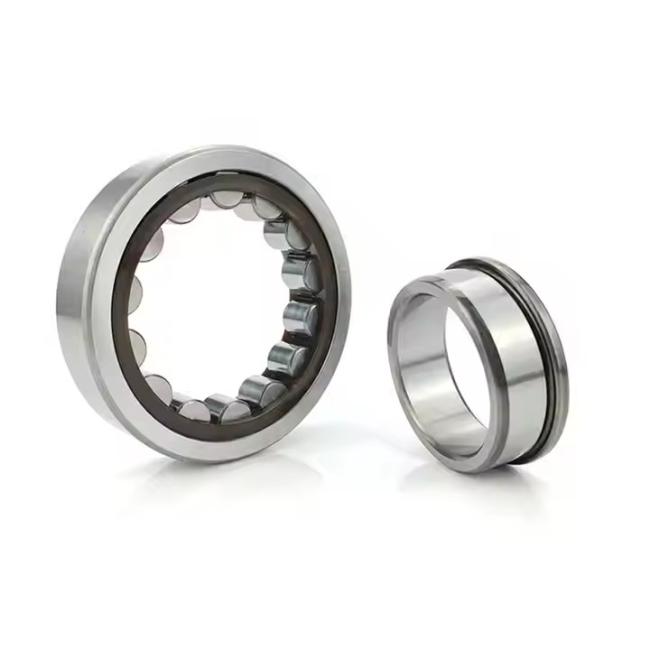

NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.
NJ Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and a fixed rib on the inner ring which can guide the shaft in a single direction (axially).
NUP Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and, on the inner ring, a fixed rib and a support washer. This way they can be used as locating bearings, guiding the shaft axially in both directions.
RNU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and has no inner ring. Instead, it uses the shaft as the opposing raceway.
NF Series - Also able to carry incidental thrust loads, this bearing type features two integral ribs on the inner ring and a single rib on the outer ring.
NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.
NNU Series - Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.

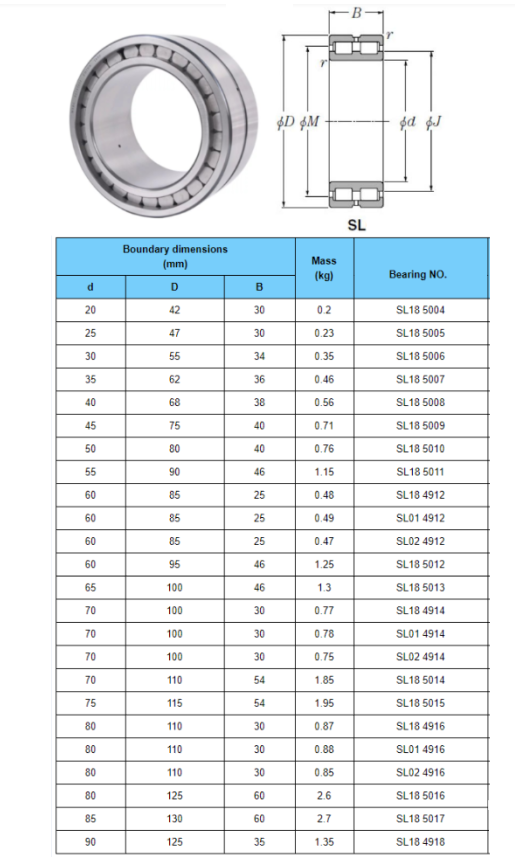

Cylindrical Roller Bearings such as NU, NJ, NUP, N, NF, and double row cylindrical roller Cylindrical Roller Bearingss such as NNU and NN. The Cylindrical Roller Bearings is a structure in which the inner ring and the outer ring are separable.SL Type Cylindrical Roller Bearings can be relubricated via the inner or outer ring. For this purpose, both Cylindrical Roller Bearings rings have an integral circumferential lubrication groove and axial lubrication holes.
| Name |
Cylindrical Roller Bearings |
| Material | Chrome steel |
| Seal Type | Open |
| Precision Rating | ABEC1, ABEC3, ABEC5, ABEC7,ABEC9 |
| Number of Row | Single Row, Double Row, Four Row |
| OEM | Acceptable |
| Samples | Available |
| Certification | ISO9001:2000 |
| Features |
1.High quality and good service 2.Less friction and low noise 3.Competitve price 4.Ability to carry heavy loads 5.Less coefficient of friction 6.High limiting speed 7.Large size range:inner diameter from 20mm-800mm. 8.Variations of structure:NU,N,NJ,NF,NUP,NH,NCL...V,NB,NU...V,NNU,NNCF,NNCL,NNCS,FC,FCD,FCDP... |
Cylindrical Roller Bearing Model Number:
| Model no | d(mm) | D(mm) | T(mm) | W(KG) |
| NU204 | 20 | 47 | 14 | 0.11 |
| NU205 | 25 | 52 | 15 | 0.137 |
| NU206 | 30 | 62 | 16 | 0.211 |
| NU207 | 35 | 72 | 17 | 0.3 |
| NU208 | 40 | 80 | 18 | 0.382 |
| NU209 | 45 | 85 | 19 | 0.438 |
| NU210 | 50 | 90 | 20 | 0.493 |
| NU211 | 55 | 100 | 21 | 0.648 |
| NU212 | 60 | 110 | 22 | 0.84 |
| NU213 | 65 | 120 | 23 | 1.07 |
| NU214 | 70 | 125 | 24 | 1.16 |
| NU215 | 75 | 130 | 25 | 1.25 |
| NU216 | 80 | 140 | 26 | 1.5 |
| NU217 | 85 | 150 | 27 | 2.5 |
| NU218 | 90 | 160 | 30 | 2.35 |
| NU219 | 95 | 170 | 32 | 2.8 |
| NU220 | 100 | 180 | 34 | 3.42 |
| NU221 | 105 | 190 | 36 | 4.07 |
| NU222 | 110 | 200 | 38 | 4.73 |
| NU224 | 120 | 215 | 40 | 5.65 |
| NU226 | 130 | 230 | 40 | 6.5 |
| NU228 | 140 | 250 | 42 | 8.2 |
| NU230 | 150 | 270 | 45 | 10.4 |
| NU232 | 160 | 290 | 48 | 14.4 |
| NU234 | 170 | 310 | 52 | 17.7 |
| NU236 | 180 | 320 | 52 | 18.4 |
| NU238 | 190 | 340 | 55 | 22.3 |
| NU240 | 200 | 360 | 58 | 26.6 |
| NU244 | 220 | 400 | 65 | 37.3 |
| NU248 | 240 | 440 | 72 | 50.5 |
| NU252 | 260 | 480 | 80 |
