Tapered Roller Bearing 130611H 80611K1 Bearing With Forklift Bearings 60x150x33 For Agricultural Equipment

Name: Tapered Roller Bearing 130611H 80611K1 Bearing With Forklift Bearings 60x150x33 For Agricultural Equipment
Brand: Shaanxi Fortune Industries Co.ltd

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 20-45DAYS

Brand: SFT

Product Description

Tapered roller bearings are designed so the tapered vertex of the raceway surfaces of the inner and outer rings and rollers converge at one point on the centerline of the bearing.The tapered rollers are guided by the combined force of the inner and outer raceway surfaces which keep the rollers pressed up against the large rib on the inner ring. A large variety of these bearings, including single, double, and four row arrangements, are available in both metric and inch series. These bearings are constructed to have a high capacity for radial loads, axial loads, and combined loads. The larger the contact angle, the greater the axial load capacity. When a pure radial load is applied to a tapered roller bearing, an induced load in the axial direction is also generated, so these bearings are generally used in pairs.Single row tapered roller bearings are separable, so both the inner and outer rings can be used with tight fits.

Features & Benefits

* High load carrying capacity
* Designed for axial loads in one direction
* Relatively high stiffness
* Surface finish on the contact surfaces of the rollers and raceways that enhances operational reliability

Specification

Item #	d	D	T	r	Static Load Rating	Dynamic Load Rating
32010A	50.000 mm	80.000 mm	20.000 mm	1.000 mm	95.00 kN	69.00 kN
32010X	50.000 mm	80.000 mm	20.000 mm	1.000 mm	98.00 kN	62.50 kN
32010XP5	50.000 mm	80.000 mm	20.000 mm	1.000 mm	98.00 kN	62.50 kN
32010XUP4	50.000 mm	80.000 mm	20.000 mm	1.000 mm	98.00 kN	62.50 kN
32011A	55.000 mm	90.000 mm	23.000 mm	1.500 mm	117.00 kN	82.00 kN
32011X	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32011XP4	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32011XP5	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32011XSTPX4	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32012X	60.000 mm	95.000 mm	23.000 mm	1.500 mm	123.00 kN	82.00 kN
32012XUP5	60.000 mm	95.000 mm	23.000 mm	1.500 mm	123.00 kN	82.00 kN
32013X	65.000 mm	100.000 mm	23.000 mm	1.500 mm	128.00 kN	83.00 kN
32013XE4	65.000 mm	100.000 mm	23.000 mm	1.500 mm	128.00 kN	83.00 kN
32013XP5	65.000 mm	100.000 mm	23.000 mm	1.500 mm	128.00 kN	83.00 kN

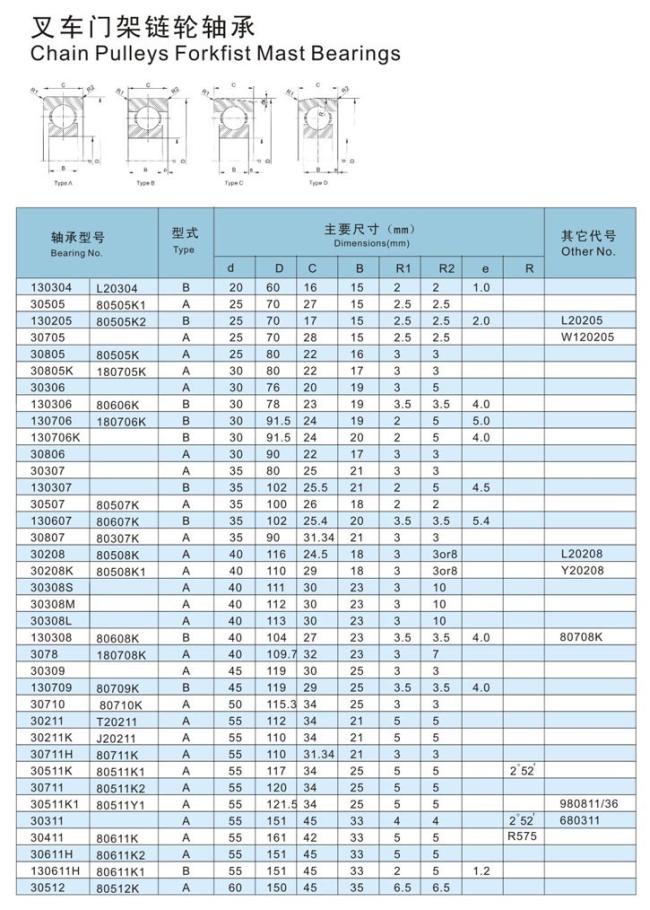

Bearing No.		Dimensions(mm)						Bearing No.
I	II	d	D	C	B	R1	R2	III
I	II	d	D	C	B	R1	R2	III
130304	L20304	20	60	16	15	2	2
30505	80505K1	25	70	27	15	2.5	2.5
130205	80505K2	25	70	17	15	2.5	2.5	L20205
30705		25	70	28	15	2.5	2.5	W120205
30805	80505K	25	80	22	16	3	3
30805K	180705K	30	80	22	17	3	3
30306		30	76	20	19	3	5
130306	80606K	30	78	23	19	3.5	3.5
110306F		30	77	23	19	3	5	L10306
110306H		30	78	23	19	3	5	L10306
110306L		30	79	23	19	3	5	L10306
130706	180706K	30	91.5	24	19	2	5
130706K		30	91.5	24	20	2	5
30806		30	90	22	17	3	3
30307		35	80	25	21	3	3
130307		35	102	25.5	21	2	5
30507	80507K	35	100	26	18	2	2
130607	80607K	35	102	25.4	20	3.5	3.5
30807	80307K	35	90	31.34	21	3	3
30208	80508K	40	116	24.5	18	3	3 or 8	L20208
30208K	80508K1	40	110	29	18	3	3 or 8	Y20208
30208K1	80508Y1	40	112.3	29	18	3	3 or 8	Y30208
30508K	80508Y	40	112.3	24.5	18	3	3 or 8
30308	S20308	40	115	32	23	6	6
30308S		40	111	30	23	3	10
110308S		40	103	27	23	3	5.5	L40308
110308M		40	104	27	23	3	5.5	L40308
110308L		40	105	27	23	3	5.5	L40308
10308S		40	99	30	23	3	7	780308
10308M		40	100	30	23	3	7	780308
10308L		40	101	30	23	3	7	780308
30308M		40	112	30	23	3	10
30308L		40	113	30	23	3	10
130308	80608K	40	104	27	23	3.5	3.5
130308K		40	109.7	28	23	7	5
30708	180708K	40	109.7	32	23	3	7	80708K
30309		45	119	30	25	3	3
130309K		45	118.5	26	25	5	5
130709	80709K	45	119	29	25	3.5	3.5
10709S		45	114	35	25	3	8	960709S
10709M		45	115	35	25	3	8	960769M
10709L		45	116	35	25	3	8	960709L
10309S		45	117	40	25	5	8
10309M		45	118	40	25	5	8
10309L		45	119	40	25	5	8
30710	80710K	50	115.3	34	25	3	3
30810K1	30810K	50	117.5	34	25	5	5

Item #	d	D	T	r	Static Load Rating	Dynamic Load Rating
32010A	50.000 mm	80.000 mm	20.000 mm	1.000 mm	95.00 kN	69.00 kN
32010X	50.000 mm	80.000 mm	20.000 mm	1.000 mm	98.00 kN	62.50 kN
32010XP5	50.000 mm	80.000 mm	20.000 mm	1.000 mm	98.00 kN	62.50 kN
32010XUP4	50.000 mm	80.000 mm	20.000 mm	1.000 mm	98.00 kN	62.50 kN
32011A	55.000 mm	90.000 mm	23.000 mm	1.500 mm	117.00 kN	82.00 kN
32011X	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32011XP4	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32011XP5	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32011XSTPX4	55.000 mm	90.000 mm	23.000 mm	1.500 mm	118.00 kN	80.50 kN
32012X	60.000 mm	95.000 mm	23.000 mm	1.500 mm	123.00 kN	82.00 kN
32012XUP5	60.000 mm	95.000 mm	23.000 mm	1.500 mm	123.00 kN	82.00 kN
32013X	65.000 mm	100.000 mm	23.000 mm	1.500 mm	128.00 kN	83.00 kN
32013XE4	65.000 mm	100.000 mm	23.000 mm	1.500 mm	128.00 kN	83.00 kN
32013XP5	65.000 mm	100.000 mm	23.000 mm	1.500 mm	128.00 kN	83.00 kN

Bearing No.		Dimensions(mm)						Bearing No.
I	II	d	D	C	B	R1	R2	III
I	II	d	D	C	B	R1	R2	III
130304	L20304	20	60	16	15	2	2
30505	80505K1	25	70	27	15	2.5	2.5
130205	80505K2	25	70	17	15	2.5	2.5	L20205
30705		25	70	28	15	2.5	2.5	W120205
30805	80505K	25	80	22	16	3	3
30805K	180705K	30	80	22	17	3	3
30306		30	76	20	19	3	5
130306	80606K	30	78	23	19	3.5	3.5
110306F		30	77	23	19	3	5	L10306
110306H		30	78	23	19	3	5	L10306
110306L		30	79	23	19	3	5	L10306
130706	180706K	30	91.5	24	19	2	5
130706K		30	91.5	24	20	2	5
30806		30	90	22	17	3	3
30307		35	80	25	21	3	3
130307		35	102	25.5	21	2	5
30507	80507K	35	100	26	18	2	2
130607	80607K	35	102	25.4	20	3.5	3.5
30807	80307K	35	90	31.34	21	3	3
30208	80508K	40	116	24.5	18	3	3 or 8	L20208
30208K	80508K1	40	110	29	18	3	3 or 8	Y20208
30208K1	80508Y1	40	112.3	29	18	3	3 or 8	Y30208
30508K	80508Y	40	112.3	24.5	18	3	3 or 8
30308	S20308	40	115	32	23	6	6
30308S		40	111	30	23	3	10
110308S		40	103	27	23	3	5.5	L40308
110308M		40	104	27	23	3	5.5	L40308
110308L		40	105	27	23	3	5.5	L40308
10308S		40	99	30	23	3	7	780308
10308M		40	100	30	23	3	7	780308
10308L		40	101	30	23	3	7	780308
30308M		40	112	30	23	3	10
30308L		40	113	30	23	3	10
130308	80608K	40	104	27	23	3.5	3.5
130308K		40	109.7	28	23	7	5
30708	180708K	40	109.7	32	23	3	7	80708K
30309		45	119	30	25	3	3
130309K		45	118.5	26	25	5	5
130709	80709K	45	119	29	25	3.5	3.5
10709S		45	114	35	25	3	8	960709S
10709M		45	115	35	25	3	8	960769M
10709L		45	116	35	25	3	8	960709L
10309S		45	117	40	25	5	8
10309M		45	118	40	25	5	8
10309L		45	119	40	25	5	8
30710	80710K	50	115.3	34	25	3	3
30810K1	30810K	50	117.5	34	25	5	5
