BS65 BS75 BS85 BS95 BS110 Sprag Freewheels One Way Bearing Holdback Backstop Cam Clutch
Price:
negotiable
MOQ:
negotiable
Delivery Time:
20-45DAYS
Brand:
SFT
Product Description

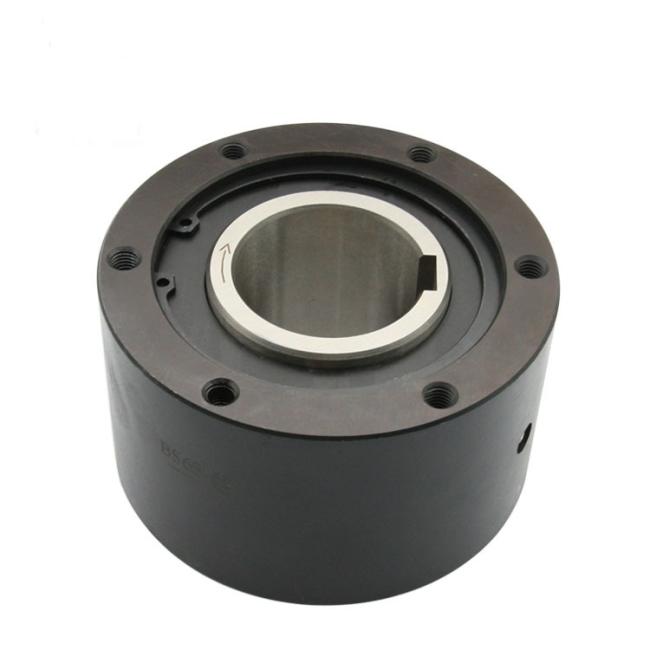

BS85 BS 85 Freewheel Backstop One-Way Clutch Bearing
Product Description
Features of BS one-way clutch bearing
The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).
| Product name | Cam Clutch bearing |
| Model | BS85 |
| Material | GCr15 |
| Inner diameter | 85mm |
| Outer diameter | 210mm |
| Thickness | 115mm |
| Torque capacity | 5850Nm |
| Overrunning speed | 300r/min |
| Application | low speed conveyor , bucket elevator |
| Package | Carton Box / Wooden box |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 10-15 Days |
| Model | Torque | Max overrunning |
Drag Torque (N-m) |
A | B | C | PCD | E | S |
H-M Size× Pitch ×No.of Tapped Holes |
| Capacity (Nm) | (r/min) Inner race | D | ||||||||
| BS30 | 294 | 350 | 0.58 | 64 | 90 | 64 | 80 | 45 | 13 | M 6 ×P1.0×4 |
| BS50 | 784 | 300 | 0.98 | 67 | 125 | 67 | 110 | 70 | 16 | M 8 ×P1.25×4 |
| BS65 | 1570 | 340 | 3.92 | 90 | 160 | 85 | 140 | 90 | 20 | M10 ×P1.5×6 |
| BS75 | 2450 | 300 | 5.88 | 90 | 170 | 85 | 150 | 100 | 20 | M10 ×P1.5×6 |
| BS85 | 5880 | 300 | 7.84 | 115 | 210 | 110 | 185 | 115 | 30 | M12 ×P1.75×6 |
| BS95 | 7840 | 250 | 9.8 | 115 | 230 | 110 | 200 | 130 | 30 | M14 ×P2.0× 6 |
| BS110 | 10800 | 250 | 14.7 | 115 | 270 | 110 | 220 | 150 | 30 | M16 ×P2.0× 6 |
| BS135 | 15700 | 200 | 19.6 | 135 | 320 | 130 | 280 | 180 | 30 | M16 ×P2.0× 8 |
