MZ30 Sprag One Way Backstop MZ Cam Clutch Bearing 3010082mm for Heavy Duty

Name: MZ30 Sprag One Way Backstop MZ Cam Clutch Bearing 30*100*82mm for Heavy Duty
Brand: Shaanxi Fortune Industries Co.ltd

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 20-45DAYS

Brand: SFT

Product Description

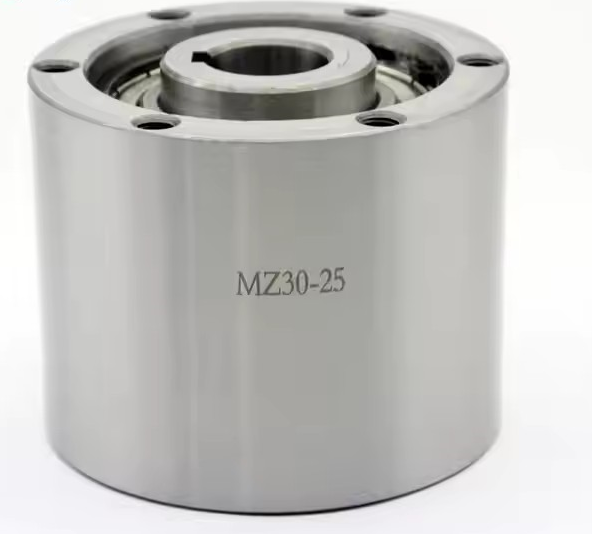

MZ30 Sprag One Way Backstop MZ Cam Clutch Bearing 30*100*82mm

Technical Datas

Item	MZ30
Material	GCr15
Bore dia.	30 mm
Outer dia.	100 mm
Width	82 mm
Torque capacity	735 N.m
Drag torque	0.39 N.m
Weight	3.7 kg
Package	Carton box, wooden box or as your requirements

Dimensions and Capacities

Model	Capacity Torque (Nm)	Torque Drag (Nm)	Over running (r/min) Max. Inner Race	Over running (r/min) Max. Outer Race	indexing Max. (cycle /min)	Bore Size Dia (H7)	Key way	A	B	C	PCDD	(M6) E	F	G	H-M No. of Tapped x HolesSize× Pitch	S	Wt (kg)
MZ15	186	0.20	2,200	900	150	15	5*2.3	62	68	60	58	47	25	5.5	6M5P0.8	10	1.4
MZ17	215	0.20	2,000	800	150	17	5*2.3	66	75	64	64	52	28	6.3	6M5P0.8	10	1.8
MZ20	323	0.29	1,900	700	150	20	6*2.8	67	80	65	68	55	30	7.6	6M6P1.0	12	2.0
MZ30-22	735	0.39	1,800	500	150	22	6*2.8	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30-25	735	0.39	1,800	500	150	25	8*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30	735	0.39	1,800	500	150	30	10*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ35	1,080	0.49	1,700	300	150	35	10*3.3	87	110	85	95	80	50	8.7	6M8P1.25	16	4.8
MZ45-40	1,620	0.69	1,700	300	150	40	12*3.3	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ45	1,620	0.69	1,700	300	150	45	14*3.8	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ60-50	2,110	0.98	1,600	250	150	50	14*3.8	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60-55	2,110	0.98	1,600	250	150	55	16*4.3	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60	2,110	0.98	1,600	250	150	60	18*4.4	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ70-65	3,040	1.27	1,300	250	150	65	18*4.4	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2
MZ70	3,040	1.27	1,300	250	150	70	20*4.9	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2
