FXM140-50SX/H65 China Sprag Lift off Backstop Clutch Backstop Gearbox FXM140-50
Price:
negotiable
MOQ:
negotiable
Delivery Time:
30-45DAYS
Brand:
SFT
Product Description

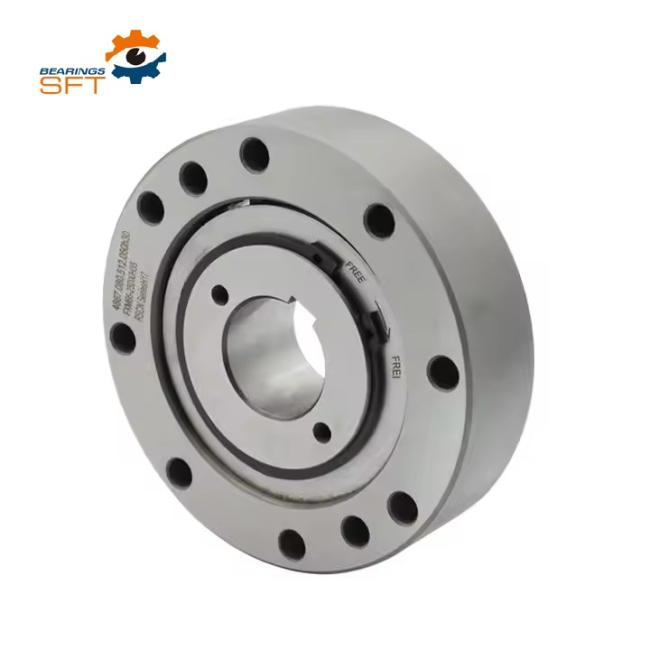

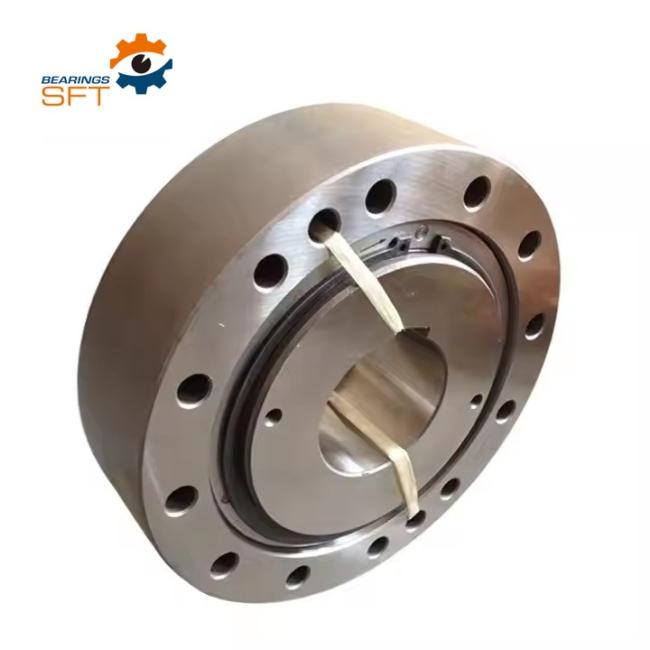

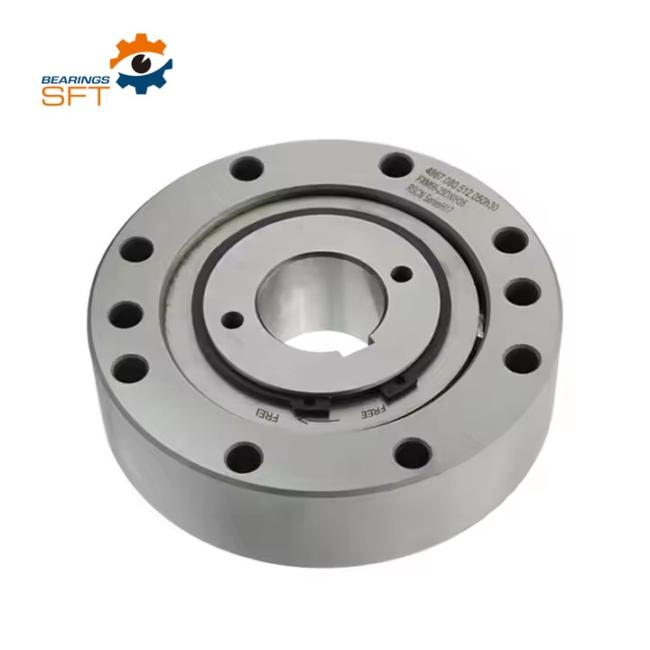

China Sprag Lift off Backstop Clutch FXM140-50 Backstop Gearbox
Product Description
Features of one-way bearing
Structure: FXM is a integrated sprag freewheels. It is equipped with sprag lift off X. The lift off X is used for backstop and overrunning clutches.
Lubrication: no special lubrication is required.
Catalogue of one-way bearing for your choice
Catalogue of one-way bearing for your choice
|

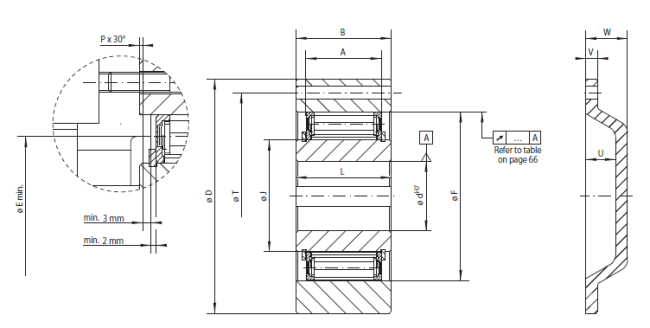

Freewheel Size |
mm | mm |
Stan mm |
Bore d dard mm | mm | mm |
max. mm |
A mm |
B mm |
D mm |
E min. mm |
F mm |
J mm |
L mm |
T mm |
V mm |
W mm |
Weight kg |
| FXM31 -17 | 20* | 20* | 17 | 25 | 85 | 41 | 55 | 31 | 24 | 70 | 6 | 21 | 0,8 | |||||
| FXM38 -17 | 25* | 25* | 17 | 25 | 90 | 48 | 62 | 38 | 24 | 75 | 6 | 21 | 0,9 | |||||
| FXM46 -25 | 25 | 30 | 25 | 35 | 95 | 56 | 70 | 46 | 35 | 82 | 6 | 21 | 1,3 | |||||
| FXM51 -25 | 25 | 30 | 35 | 36 | 25 | 35 | 105 | 62 | 75 | 51 | 35 | 90 | 6 | 21 | 1,7 | |||
| FXM56 -25 | 35 | 40 | 25 | 35 | 110 | 66 | 80 | 56 | 35 | 96 | 6 | 21 | 1,8 | |||||
| FXM61 -19 | 30 | 35 | 40 | 45* | 19 | 27 | 120 | 74 | 85 | 61 | 25 | 105 | 6 | 21 | 1,8 | |||
| FXM66 -25 | 35 | 40 | 45 | 48* | 25 | 35 | 132 | 82 | 90 | 66 | 35 | 115 | 8 | 23 | 2,8 | |||
| FXM76 -25 | 45 | 55 | 60* | 25 | 35 | 140 | 92 | 100 | 76 | 35 | 125 | 8 | 23 | 3,1 | ||||
| FXM86 -25 | 40 | 45 | 50 | 60 | 65 | 70* | 25 | 40 | 150 | 102 | 110 | 86 | 40 | 132 | 8 | 23 | 4,2 | |
| FXM101 -25 | 55 | 70 | 80* | 25 | 50 | 175 | 117 | 125 | 101 | 50 | 155 | 8 | 28 | 6,9 | ||||
| FXM85 -40 | 45 | 50 | 60 | 65 | 65 | 40 | 50 | 175 | 102 | 125 | 85 | 60 | 155 | 8 | 28 | 7,4 | ||
| FXM100 -40 | 45 | 50 | 55 | 60 | 70 | 75 | 80* | 40 | 50 | 190 | 130 | 140 | 100 | 60 | 165 | 10 | 35 | 8,8 |
| FXM120 -50 | 60 | 65 | 70 | 75 | 80 | 95 | 95 | 50 | 60 | 210 | 150 | 160 | 120 | 70 | 185 | 10 | 35 | 12,7 |
| FXM140 -50 | 65 | 90 | 100 | 110 | 110 | 50 | 70 | 245 | 170 | 180 | 140 | 70 | 218 | 12 | 35 | 19,8 | ||
| FXM170 -63 | 70 | 85 | 90 | 100 | 120 | 130 | 63 | 80 | 290 | 200 | 210 | 170 | 80 | 258 | 12 | 38 | 33,0 | |
| FXM200 -63 | 130 | 155 | 63 | 80 | 310 | 230 | 240 | 200 | 80 | 278 | 12 | 42 | 32,0 |
