Precision One Way Clutch Bearings FWD331808 BRS Motorcycle Clutch
Price:
negotiable
MOQ:
negotiable
Delivery Time:
30-45DAYS
Brand:
SFT
Product Description
C

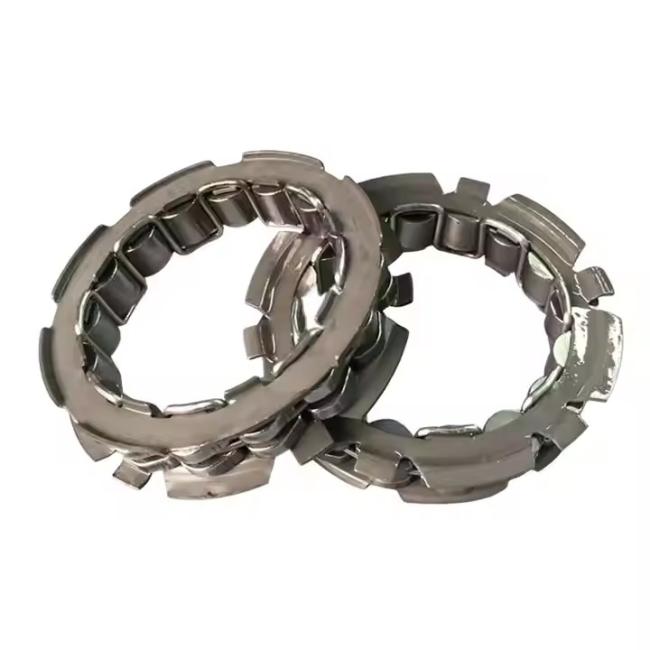

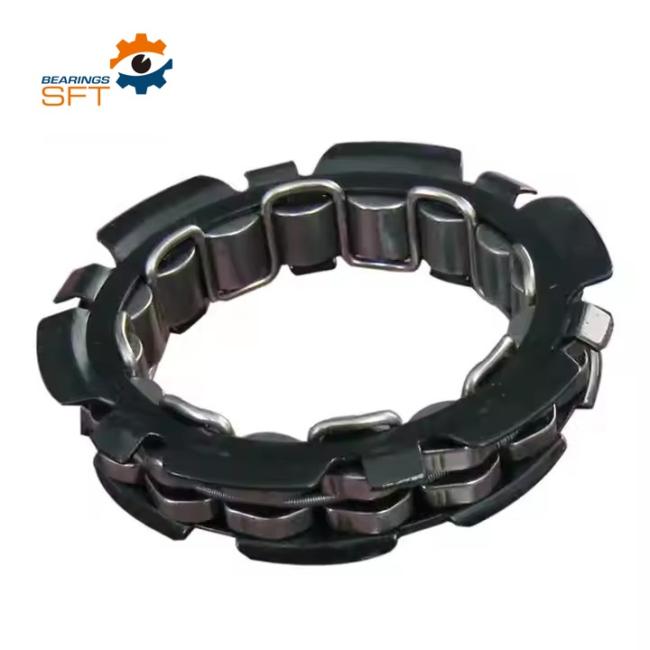

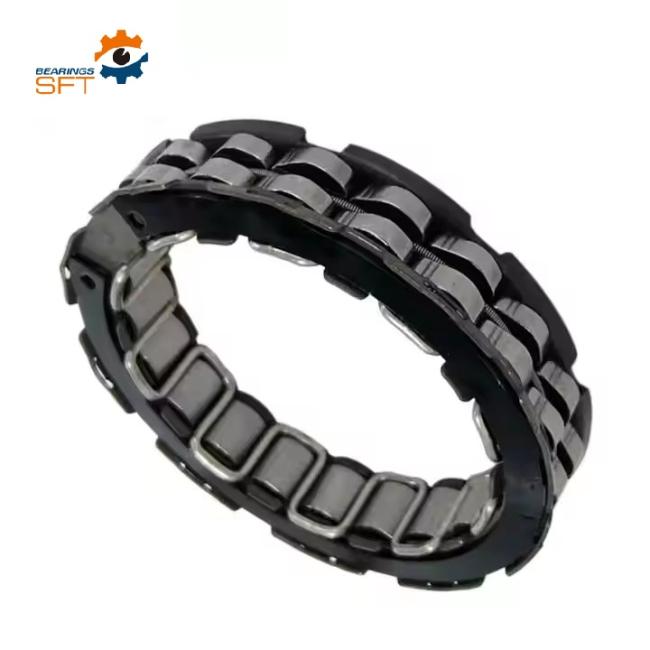

One Way Sprag Clutch FWD331808 BRS Motorcycle Clutch
Product Description
Feature
1.Germany Technology Introduction
2.Core Technical Team
3.Professional Manufacture Factory
4.Superior Equipment Support
5.OEM / Customization Available
Products Parameters
|

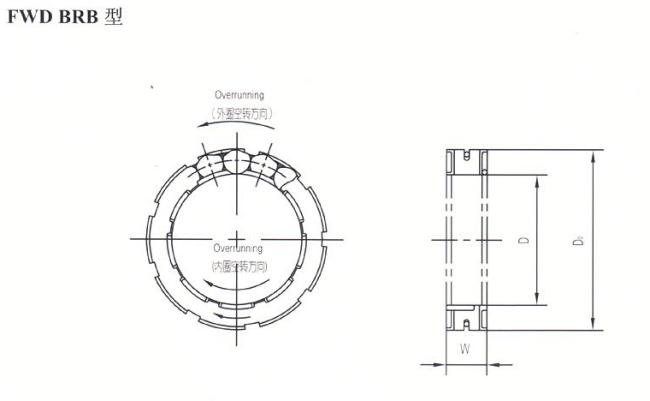

Type
|
Inner race
|
Outer race
|
Wmin
|
Tkn | Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | (Kgf-m) | (g) | |
| (mm) | |||||
| (mm) | |||||
| FWD331608BRB | 39.627 | 56.294 | 13 | 27 | 73 |
| FWD331808BRB | 45.665 | 62.332 | 13.3 | 35 | 82 |
| FWD332008BRB | 51.71 | 68.377 | 13.3 | 45 | 91 |
| FWD332211BRB | 57.76 | 74.427 | 16.3 | 78 | 134 |
|

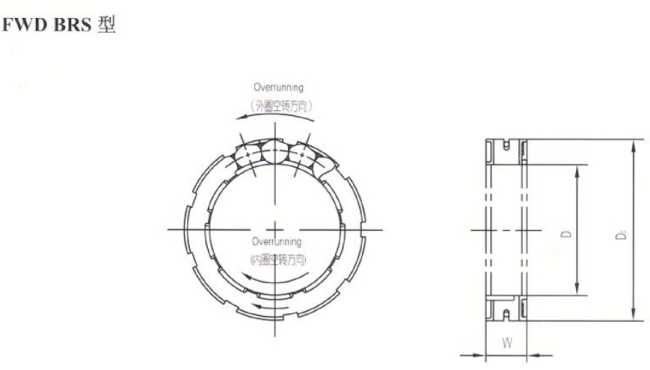

Type
|
Inner race
|
Outer race
|
Wmin
|
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | (Kgf-m) | (g) | |
| (mm) | |||||
| (mm) | |||||
| FWD331608BRS | 39.627 | 56.294 | 13 | 27 | 77 |
| FWD331808BRS | 45.665 | 62.332 | 13.3 | 35 | 87 |
| FWD332008BRS | 51.71 | 68.377 | 13.3 | 45 | 97 |
| FWD332211BRS | 57.76 | 74.427 | 16.3 | 78 | 134 |
|
Type
|
Inner race
|
Outer race
|
Wmin
|
Wmin
|
DC |
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | W1 | (Kgf-m) | (g) | ||
| (mm) | (mm) | (mm) | (mm) | ||||
| FWD331608PRB | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 70 |
| FWD331808PRB | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 80 |
| FWD332008PRB | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 89 |
| FWD332211PRB | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 130 |
