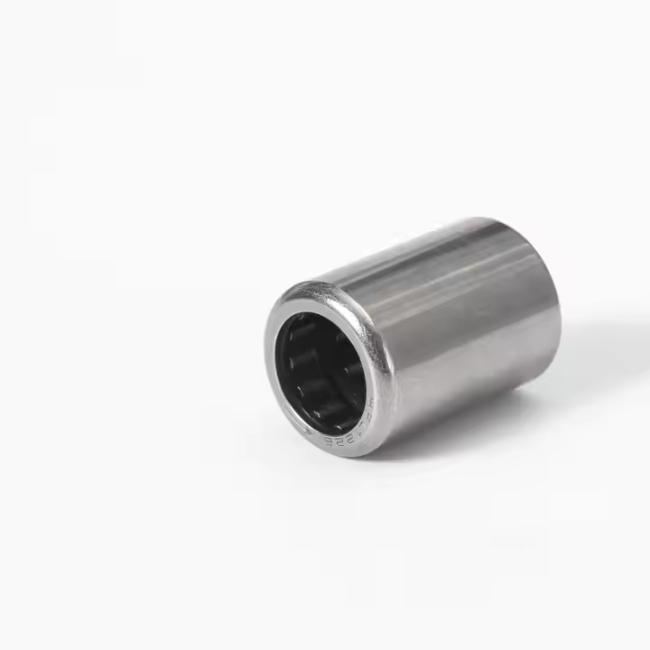

GCr15 Needle Material HFL 1426 One Way Roller Needle Bearing with 3 Rows ST14 Cage Material
Price:
1-50USD/PC
MOQ:
500
Delivery Time:
45 days
Brand:
SFT
Product Description
Product Description
Structure of Drawn Cup Bearngs :
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.
Catalogue of Drawn Cup Bearings for your choice
|
Shaft Diameter |
Mass Approx |
Torgue Ma |
Basic Load Ratings | ||||||||
| Clutch Designation | Borndary Dimensions | Limiting Speed | |||||||||
| Fw | D | C |
Rotating Shaft Min-1 |
Rotatng Outer Ring Min-1 |
C | Co | |||||
| KN | |||||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
- High-Quality Construction: The HFL 1426 One Way Roller Needle Bearing with 3 rows features a sturdy construction, with a cage made from high-quality ST14 material and needles made from GCR15, ensuring durability and reliability in heavy-duty applications.
- Wide Range of Applications: This needle bearing is suitable for various industries, including manufacturing plants, machinery repair shops, printing shops, construction works, and energy & mining, making it a versatile solution for diverse needs.
- Customization Options: As an OEM-approved product, we accept customization requests, allowing you to tailor the bearing to your specific requirements, whether it's for a new project or a replacement part.
- Long-Lasting Performance: With a one-year warranty and a precision rating of P0, this bearing is designed to provide long-lasting performance and minimize maintenance, reducing the need for frequent replacements and associated costs.
