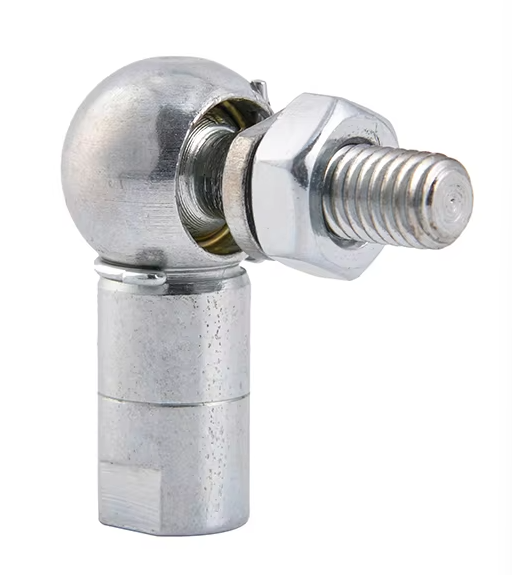

Socket CS5/1 Metric Size Ball Joint Rod Ends for Pneumatic Accessories Durable Carbon Steel Zinc Plated Body

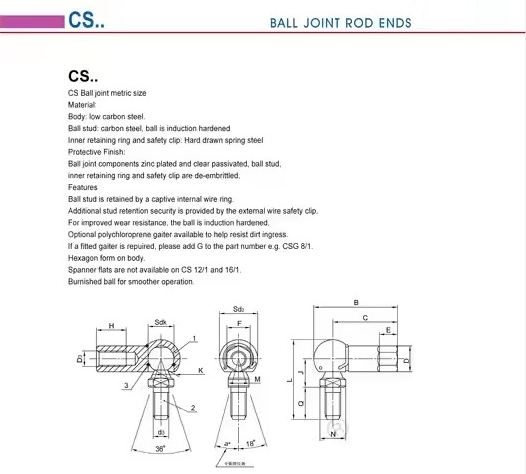

LDK studded socket CS5/1 metric size ball joint rod ends for Pneumatic Accessories
| Bearing No. | Dimensions(mm) | weight Per 100 in kg |
||||||||||||||||
| Sd2 | H | D3 | sdk | d3 | K | F | M | a | B | c | E | D | L | Q | J | N | ||
| CS5/1 | 12.8 | 10.2 | M5 | 8 | M5 | 4 | 7 | 7 | 10 | 28.4 | 22 | 5 | 8 | 25.4 | 10.2 | 9 | 8 | 1.3 |
| CS6/1 | 14.8 | 11.5 | M6 | 10 | M6 | 5 | 9 | 8 | 15 | 32.4 | 25 | 7 | 10 | 30.4 | 12.5 | 11 | 10 | 2.2 |
| CS8/1 | 19.3 | 14 | M8 | 13 | M8 | 6.5 | 11 | 11 | 15 | 39.6 | 30 | 9 | 13 | 38.6 | 16.5 | 13 | 13 | 4.5 |
| CS10/1 | 24 | 15.5 | M10 | 16 | M10 | 8 | 13 | 13 | 15 | 47 | 35 | 9 | 16 | 47 | 20 | 16 | 16 | 8.6 |
| CS12/1 | 24 | 15.5 | M12 | 16 | M12 | 8 | 13 | 13 | 15 | 47 | 35 | 9 | 16 | 47 | 20 | 16 | 16 | 8.6 |
| CS14/1 | 30 | 21.5 | M14 | 19 | M14 | 10 | 19 | 16 | 15 | 60 | 45 | 12 | 22 | 63 | 28 | 20 | 19 | 19.2 |
| CS16/1 | 30 | 21.5 | M16 | 19 | M16 | 10 | 19 | 16 | 15 | 60 | 45 | 12 | 22 | 63 | 28 | 20 | 19 | 19.2 |
1.Ball joint rod ends Series
CS5-CS16
R103G-R111G
2.More details
1)Can supply other rod ends with different pitch or accuracy of thread.
2)The left-hand thread is available
3.Features:
1).Ball stud is retained by a captive internal wire ring.Addtional stud retention security is provided by the external wire safety clip. For improved wear resistance,the ball is induction hardened,Optional polychloroprene gaiter available to help resist dirt ingress.If a fitted gaiter is requireied,please add G to the part numbers eg. CSG 8/1.
2).Hexagon form on body.Spanner flats are not available on CS12/1 and CS16/1.
3).Burnish ball for smoother operation.
4).For R..G series,per SAE J490/Type G/Style 2
