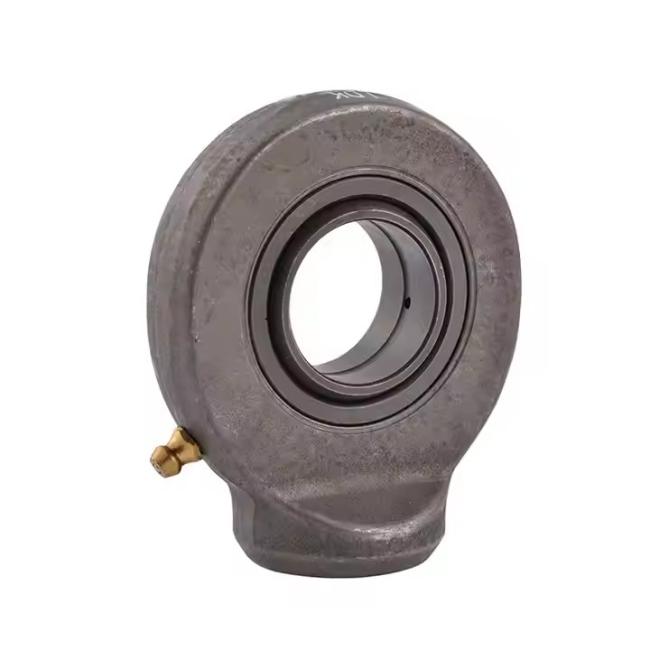

SK30ES Hydraulic Rod End Bearings for Material Handling Industry High Precision Welded OEM

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 20-45DAYS

Brand: SFT

Product Description

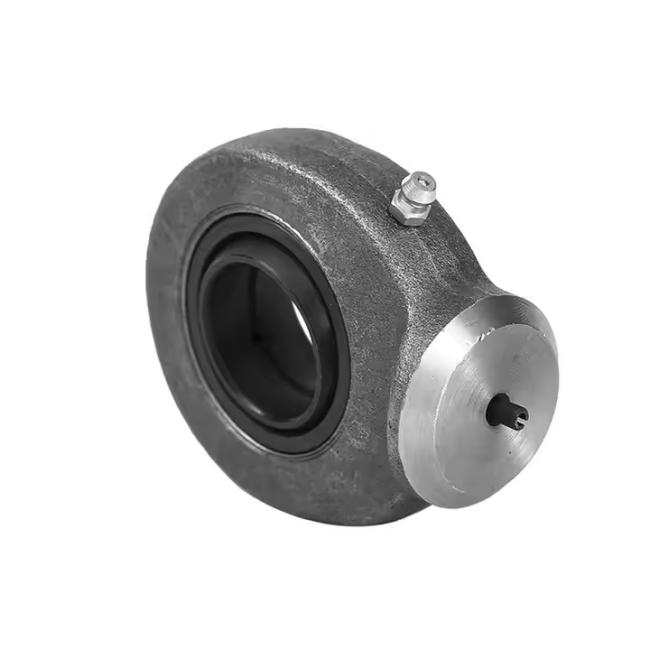

High Precision OEM Wholesale Welded SK30ES Hydraulic Cylinder Rod End Bearings for Material Handling Industry

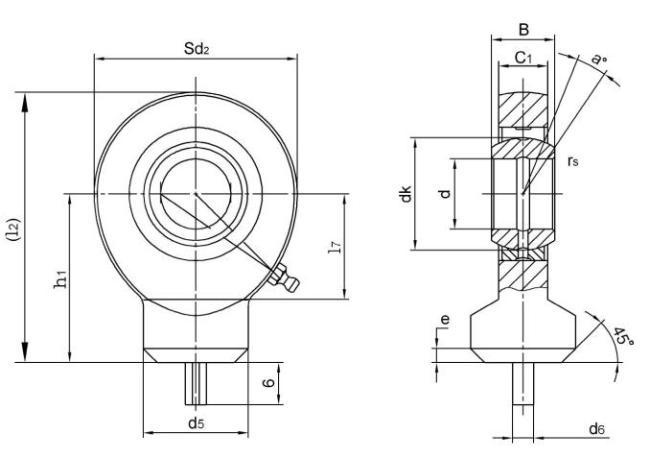

Bearing No.	Dimensions(mm)											a° mis. angle	Load ratings (KN)		Weight ≈kg
Bearing No.	d	B	dk	C1	d2	d5	d6	h1	e	l7	(l2)	a° mis. angle	Dynamic	Static	Weight ≈kg
SK10E 1)	10	9	16	7	29	15	3	24	2	15	38.5	12	8.1	15	0.041
SK12E 1)	12	10	18	8	34	17.5	3	27	2	18	44	10	10	21	0.066
SK15ES2)	15	12	22	10	40	21	4	31	2.5	20	51	8	16	32	0.12
SK17ES 2)	17	14	25	11	46	24	4	35	2.5	23	58	10	21	40	0.19
SK20ES	20	16	29	13	53	27.5	4	38	2.5	27	64.5	9	30	54	0.26
SK25ES	25	20	35.5	17	64	33.5	4	45	3	32	77	7	48	72	0.45
SK30ES	30	22	40.7	19	73	40	4	51	3	37	87.5	6	62	95	0.067
SK35ES	35	25	47	21	82	47	4	61	3	42	102	6	79	125	1.02
SK40ES	40	28	53	23	92	52	4	69	4	48	115	7	99	156	1.04
SK45ES	45	32	60	27	102	58	6	77	5	52	128	7	127	208	1.93
SK50ES	50	35	66	30	112	62	6	88	5	60	144	6	156	250	2.68
SK60ES	60	44	80	38	135	70	6	100	5	75	167.5	6	245	390	4.6
SK70ES	70	49	92	42	160	80	6	115	6	87	195	6	313	510	7.0
SK80ES	80	55	105	47	180	95	6	141	6	100	231	6	400	620	11.0

1.Series

- Series SK..E/SK..ES

- Series SF..ES

- Series SIR..ES

- Series SIGEW..ES

- Series SIQ..ES

2.Specification of SIR..ES

1).Body: Mild Steel
2).SIR..ES: Mounted with GE..ES type of radial spherical plain bearings.
3).Sliding contact surfaces: Steel/Steel

3.Notes of SIR..ES

1).Can supply rod ends with maintenance-free spherical bearings.
2).For left-hand thread, suffix "L" is added to bearing number and thread sign. E.g.:SILR40ES M35×1.5L-6H

4.Size range

1)SK..E 10,12

2)SK..ES 15-80mm

2)SF..ES 20-120mm

3)SIR..ES 20-50mm or 60-120mm

4)SIQ..ES 12-60mm

5)SIGEW..ES 12-50mm or 63-125mm
