High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing For Construction Equipments
Price:
negotiable
MOQ:
negotiable
Delivery Time:
20-45DAYS
Brand:
SFT
Product Description

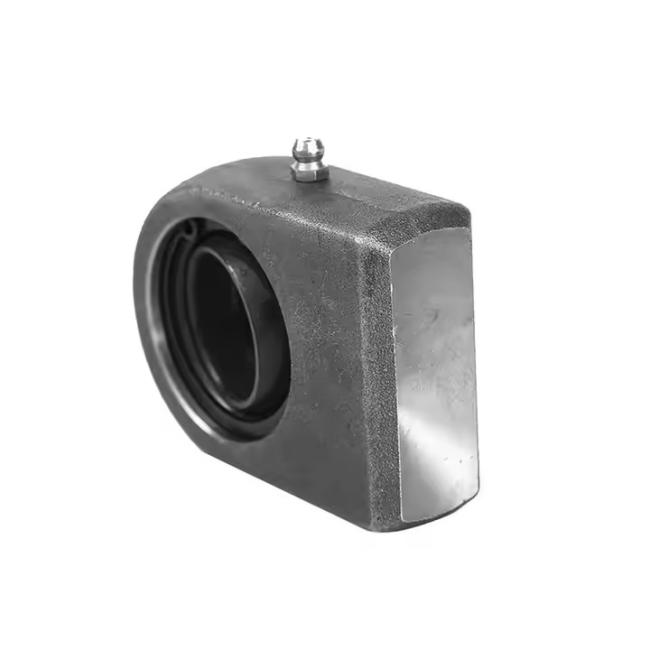

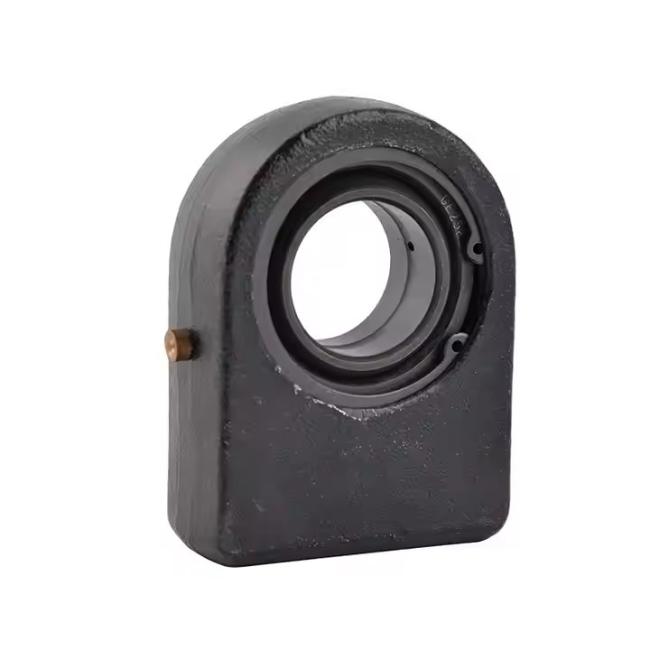

High Performance SF20ES Weldable Steel Hydraulic Cylinder Rod End Bearing for Construction Equipments

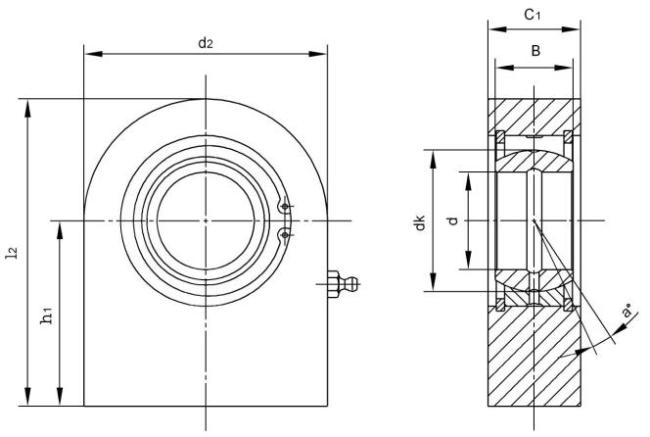

| Bearing No. | Dimensions(mm) | a° mis. angle |
Load ratings (KN) |
Weight ≈ kg |
|||||||
| d | B | dk | C1 | d2 | h1 | (l2) | Dynamic | Static | |||
| SF20ES | 20 | 16 | 29 | 19 | 50 | 38 | 63 | 9 | 30 | 67 | 0.36 |
| SF25ES | 25 | 20 | 35.5 | 23 | 55 | 45 | 72.5 | 7 | 48 | 69 | 0.53 |
| SF30ES | 30 | 22 | 40.7 | 28 | 65 | 51 | 83.5 | 6 | 62 | 118 | 0.85 |
| SF35ES | 35 | 25 | 47 | 30 | 83 | 61 | 102.5 | 6 | 79 | 196 | 1.5 |
| SF40ES | 40 | 28 | 53 | 35 | 100 | 69 | 119 | 7 | 99 | 305 | 2.42 |
| SF45ES | 45 | 32 | 60 | 40 | 110 | 77 | 132 | 7 | 127 | 386 | 3.39 |
| SF50ES | 50 | 35 | 66 | 40 | 123 | 88 | 149.5 | 6 | 156 | 441 | 4.24 |
| SF60ES | 60 | 44 | 80 | 50 | 140 | 100 | 170 | 6 | 245 | 570 | 7.10 |
| SF70ES | 70 | 49 | 92 | 55 | 164 | 115 | 197 | 6 | 313 | 724 | 10.7 |
| SF80ES | 80 | 55 | 105 | 60 | 180 | 141 | 231 | 6 | 400 | 804 | 15.1 |
| SF90ES | 90 | 60 | 115 | 65 | 226 | 150 | 263 | 5 | 488 | 1340 | 23.4 |
| SF100ES | 100 | 70 | 130 | 70 | 250 | 170 | 295 | 7 | 607 | 1516 | 33.1 |
| SF110ES | 110 | 70 | 140 | 80 | 295 | 185 | 332.5 | 6 | 654 | 2340 | 48.5 |
| SF120ES | 120 | 85 | 160 | 90 | 360 | 210 | 390 | 6 | 950 | 3210 | 79.5 |
Advantages
1.High quality
2.Competitive price
3.Various specification
4.Promotly delivery
Features
1.Ball joint housing with right or left-hand thread
2.Ball joint housing made of znic ealloy
3.With rubber dust seal
