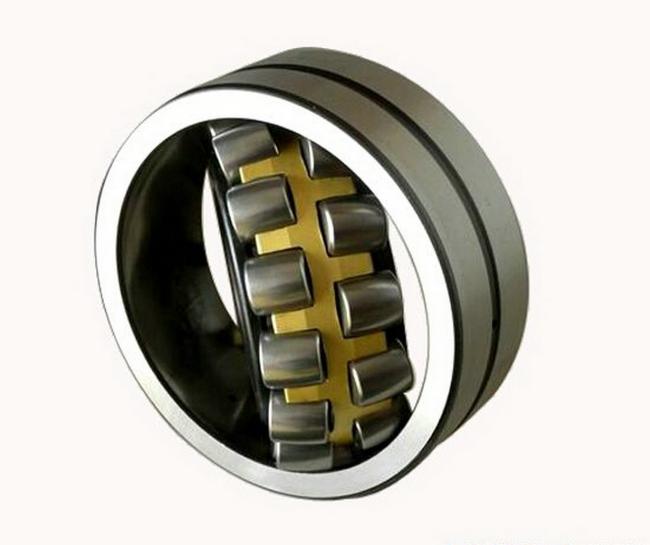

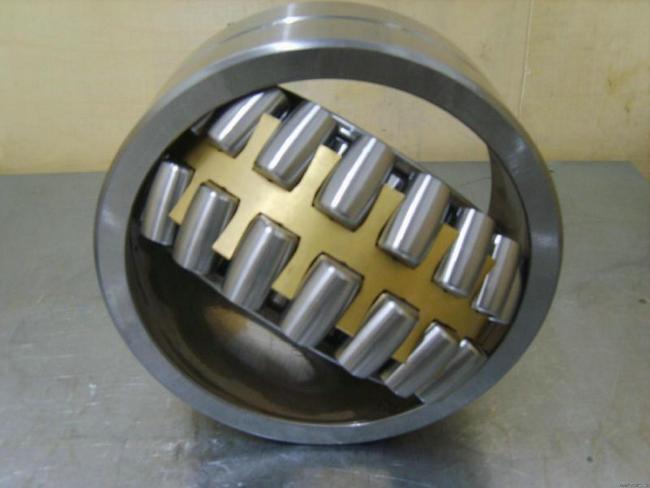

Auto Spare Parts Single Row Axial Spherical Roller Bearing With Steel Cage
Auto spare parts car used spherical roller bearing
Spherical roller bearings mainly used to bear the radial and axial joint load.The general should not be alone to bear the axial load,The bearing can be respectively arranged on inner ring(with a full set of roller and the retainer and the outer ring).The bearings do not allow the shaft relative to the casing having an inclined load in the radial direction, appointment would produce an additional axial force.This kind of axial clearance of bearing size, can work closely, When the axial clearance is too small, high temperature rise; axial clearance of bearing large, easily damaged.
Feature of spherical roller bearing:
With low operation temperature and long service life
With a larger radial internal clearance of cylindrical or conical hole design
| Material | Chrome Steel, Carbon Steel, Stainless steel |
| Precision Grade | P0, P6, P5 |
| Seal type | Open |
| Cage material | Steel, nylon , Brass |
| Package | Single box or according to buyers requirement |
| Details | 1.Low price |
| 2.Low vibration | |
| 3.high rolling accuracy | |
| Payment Term | TT or L/C or Western Union |
| Service | 1.OEM |
| 2.Good Service Offered | |
| 3.Buyer Label Offered | |
| Port | Tianjin Shanghai Ningbo |
| model list | d(mm) | D(mm) | B(mm) | Cr( N) | C0r(N) | m(kg) |
| 22308 | 40 | 90 | 33 | 73500 | 90500 | 1.041 |
| 22309 | 45 | 100 | 36 | 108000 | 140000 | 1.387 |
| 22310 | 50 | 110 | 40 | 140800 | 170000 | 1.827 |
| 22311 | 55 | 120 | 43 | 170500 | 198000 | 2.299 |
| 22312 | 60 | 130 | 46 | 184800 | 225000 | 2.881 |
| 22313 | 65 | 140 | 48 | 206800 | 252000 | 3.494 |
| 22314 | 70 | 150 | 51 | 253000 | 315000 | 4.212 |
| 22315 | 75 | 160 | 55 | 288200 | 388000 | 5.225 |
| 22316 | 80 | 170 | 58 | 316800 | 405000 | 6.296 |
| 22317 | 85 | 180 | 60 | 338800 | 440000 | 7.36 |
| 22318 | 90 | 190 | 64 | 401500 | 542000 | 8.878 |
| 22319 | 95 | 200 | 67 | 423500 | 570000 | 10.38 |
| 22320 | 100 | 215 | 73 | 495000 | 668000 | 12.941 |
| 22322 | 110 | 240 | 80 | 599500 | 832000 | 17.85 |
| 22324 | 120 | 260 | 86 | 709500 | 992000 | 22.378 |
| 22326 | 130 | 280 | 93 | 794200 | 1140000 | 28.13 |
| 22328 | 140 | 300 | 102 | 907500 | 1340000 | 34.84 |
| 22330 | 150 | 320 | 108 | 1230000 | 1600000 | 43.6 |
| 22332 | 160 | 340 | 114 | 1380000 | 1790000 | 51.9 |
| 22334 | 170 | 360 | 120 | 1420000 | 2060000 | 60.75 |
| 22336 | 180 | 380 | 126 | 1470000 | 2270000 | 68.08 |
| 22338 | 190 | 400 | 132 | 1529000 | 2530000 | 83.22 |
Applications of spherical roller bearing:
Engineering machinery, large-scale transportation equipment, chemical machinery, petroleum machinery, metallurgical industry, large-scale steel mills, cement plants, energy industry and so on.
