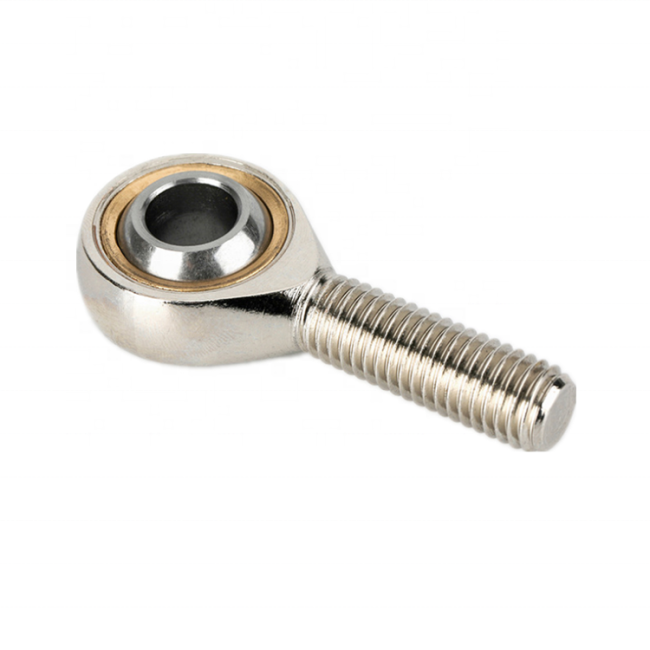

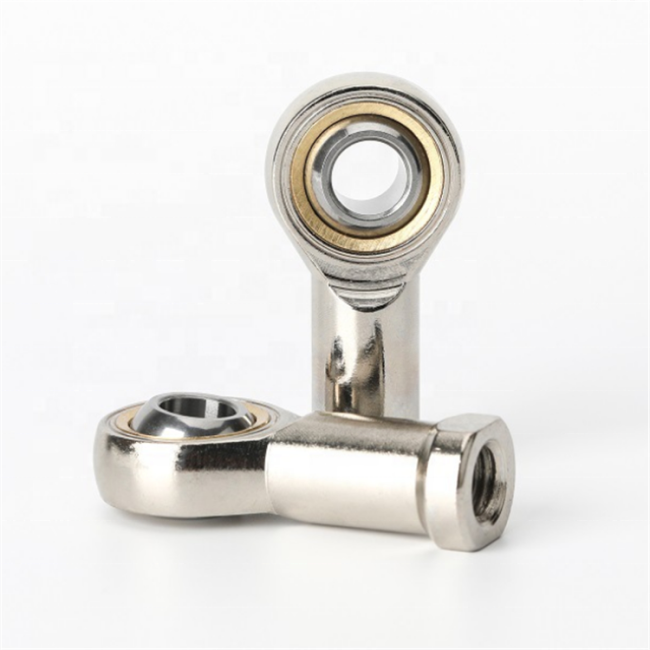

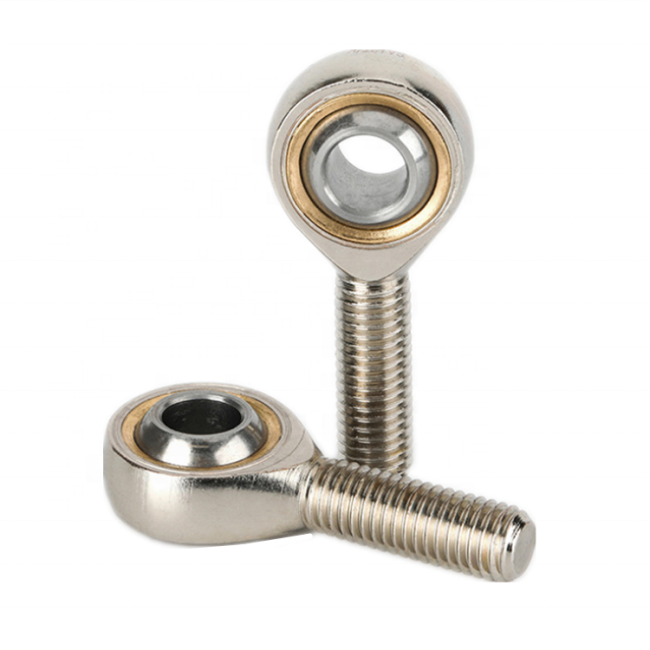

POS16 Female Left Male Rod Ends Bearing Chrome Steel Rod End Joint
POS16 female male rod end right left hand joint bearing
Features of rod end right left bearing:
• Maitenance-required
• Housing: carbon steel and white zinc plated
• Steel Ball: 52100 chrome steel, precision ground hardened and chrome plated
• Race: Bronze
Dimensions of rod end right left bearing:
• Inside Diameter(Bore): 5mm
• Outside Diameter(Head): 16mm
• Thread: M5x0.8(Right Hand)
• Total Length: 35mm
• Maximum Angular Misalignment: 13 Degree
• Center of Ball to Bottom of Shank: 27mm
• Length Through Bore: 8mm
• Thread Length: 10mm
|
SFT Number |
Dimensions mm | Load ratings KN | Weight ≈kg |
||||||||||||||
| d | d3 | B | C1 max |
W | l3 min |
d2 max |
l4 max |
h1 | l5 max |
d4 max |
d5 max |
dk | α° ≈ |
C | Co | ||
| PHS5 | 5 | M5 | 8 | 6 | 9 | 14 | 18 | 36 | 27 | 4 | 8.5 | 11 | 11.11 | 13 | 3.25 | 5.7 | 0.016 |
| PHS6 | 6 | M6 | 9 | 6.75 | 11 | 14 | 20 | 40 | 30 | 5 | 10 | 13 | 12.7 | 13 | 4.3 | 7.2 | 0.022 |
| PHS8 | 8 | M8 | 12 | 9 | 14 | 17 | 24 | 48 | 36 | 5 | 12.5 | 16 | 15.875 | 14 | 7.2 | 11.6 | 0.047 |
| PHS10 | 10 | M10 | 14 | 10.5 | 17 | 21 | 26 | 56 | 43 | 6.5 | 15 | 19 | 19.05 | 13 | 10 | 14.5 | 0.077 |
| PHS12 | 12 | M12 | 16 | 12 | 19 | 24 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 13 | 13.4 | 17 | 0.1 |
| PHS14 | 14 | M14 | 19 | 13.5 | 22 | 27 | 34 | 74 | 57 | 8 | 20 | 26 | 25.4 | 16 | 17 | 24 | 0.16 |
| PHS16 | 16 | M16 | 21 | 15 | 24 | 33 | 40 | 84 | 64 | 8 | 22 | 28 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
| PHS18 | 18 | M18X1.5 | 23 | 16.5 | 27 | 36 | 44 | 93 | 71 | 10 | 25 | 31 | 31.75 | 15 | 26 | 42.5 | 0.32 |
| PHS20 | 20 | M20X1.5 | 25 | 18 | 30 | 40 | 48 | 101 | 77 | 10 | 27.5 | 35 | 34.925 | 14 | 31.5 | 42.5 | 0.42 |
| PHS22 | 22 | M22X1.5 | 28 | 20 | 32 | 43 | 54 | 111 | 84 | 12 | 30 | 38 | 38.1 | 15 | 38 | 57 | 0.54 |
| PHS25 | 25 | M24X2 | 31 | 22 | 36 | 48 | 60 | 124 | 94 | 12 | 33.5 | 42 | 42.85 | 15 | 47.5 | 68 | 0.73 |
| PHS28 | 28 | M27X2 | 35 | 24 | 41 | 53 | 66 | 136 | 103 | 14 | 37 | 46 | 47.6 | 15 | 58 | 75 | 0.98 |
| PHS30 | 30 | M30X2 | 37 | 25 | 46 | 56 | 70 | 145 | 110 | 15 | 40 | 50 | 50.8 | 17 | 64 | 88 | 1.1 |
Joint rod end bearing applications:
Joint rod end bearings are widely used in hydraulic engineering , metal forming machine tools, engineering machinery, automation equipment , automotive shock absorbers , irrigation machinery and other industries.
