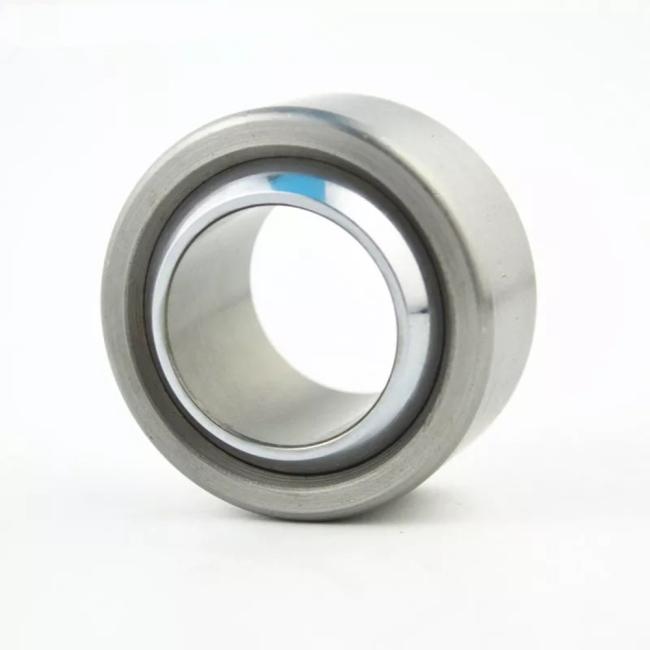

20*35*16mm spherical plain bearing GE 20 ES series

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.

Processing technology of spherical plain bearing:
It is made of surface phosphating, explosion, padding, spraying and other special processing methods.

Advantage of spherical plain bearing:
Joint bearing has the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning and good lubrication.

Product Application spherical plain bearings:

01. Steel Industry
02. Mining & Construction
03. Paper Making Machinery
04. Wind Turbines
05. Semiconductors
06. Machine Tools
07. Gearboxes
08. Electric Motors
09. Pumps & Compressors
10. Office Equipment
11. Injection Molding
12. Motorcycles
13. Railways
14. Medical Devices
15. Food Processing Machinery
16. Agricultural Machinery
