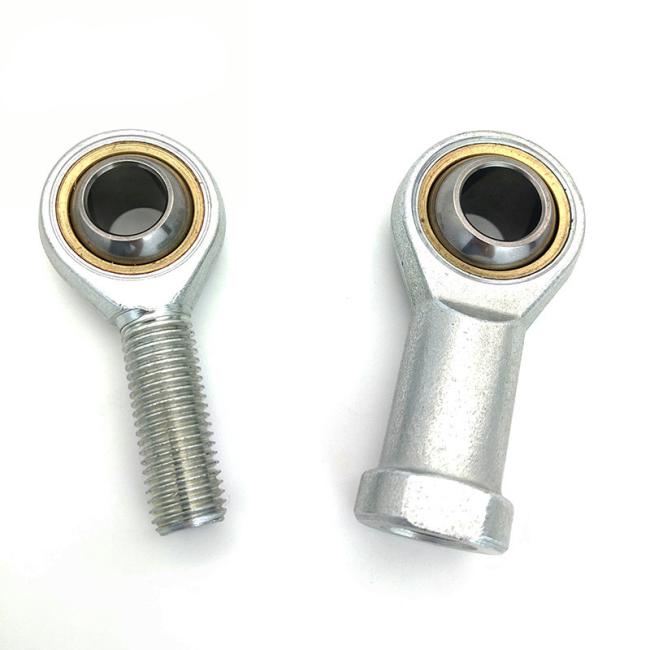

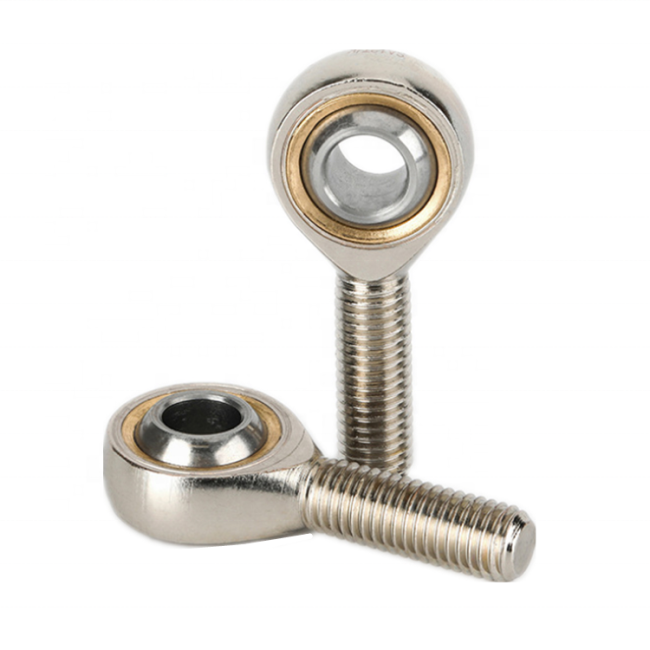

zinc plated Ball joint bearing rod end bearing SA15ES

Rod end bearing consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-PTFE plastic.

1. Bearings with a stretching rod, stretching with right or left-hand male thread.

2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.

3. Rod ends permissible operating temperature, are available on - 30 °C to + 80 °C temperature range of use, and keep the right to bear ability.

Joint rod end bearing applications:

Joint rod end bearings are widely used in hydraulic engineering , metal forming machine tools, engineering machinery, automation equipment , automotive shock absorbers , irrigation machinery and other industries.
