SS304 Housing Agricultural Rod Ends Bearings Self Lubricating

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 20-45DAYS

Brand: SFT

Product Description

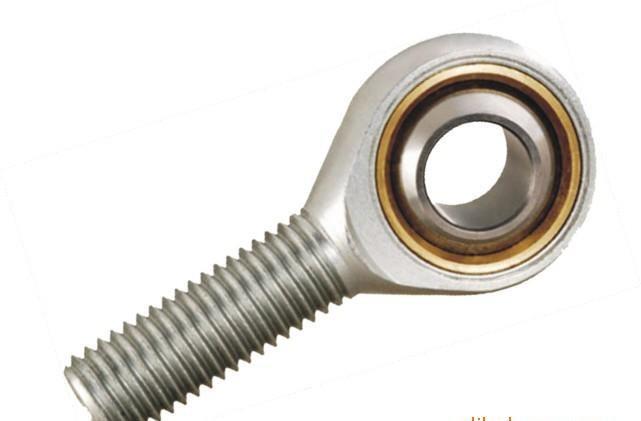

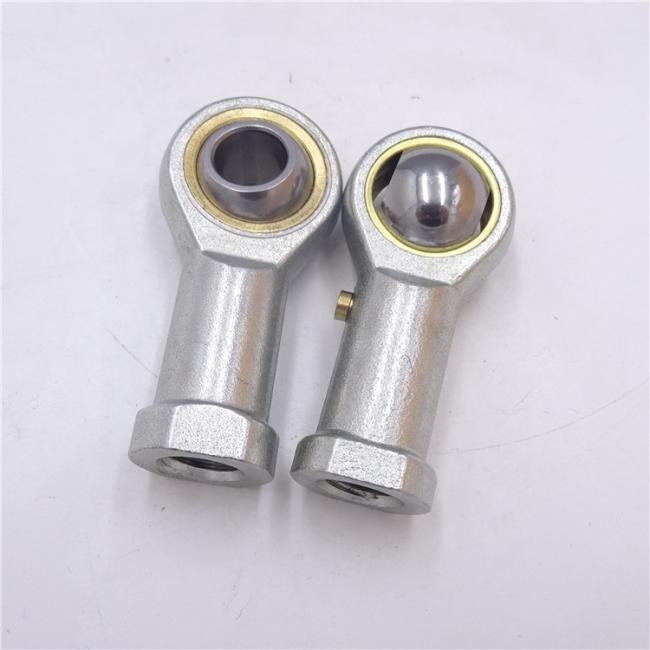

Self-lubricating rod end bearing on free series POSA SA20ES

1.Features of rod end bearing

• Sliding contact surface: steel/PTFE

• Lubricating: Maintenance-free

• Housing: 304 stainless steel

• Inner ring: 420 stainless steel, heat treated HRC54-60

• Outer Ring: 304 stainless steel

• Liner: PTFE

2. Rod end bearing application

Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate, navigation lock, textile machinery.

PHS series rod end bearing

type	Dimensions(mm)												a	weight
type	d	d3	d2	d5	S	B	L5	C1	h1	L3	d4	L4	a	(g )
PHSA5	5	M5x0.8	18	12.5	10	8	4	6	27	10	9	36	13	25
PHSA6	6	M6x1	20	13	11	9	5	6.75	30	12	10	45	13	27
PHSA8	8	M8x1.25	24	16	14	12	5	9	36	16	12.5	48	13	46
PHSA10	10	M10x1.5	28	19	17	14	6.5	10.5	43	20	15	57	13	76
PHSA12	12	M12x1.75	32	22	19	16	6.5	12	50	22	17.5	66	13	115
PHSA14	14	M14x2	36	25	55	19	8	13.5	57	25	20	75	13	170
PHSA16	16	M16x2	42	27	25	21	8	15	64	28	22	84	13	230
PHSA18	18	M18x1.5	46	31	27	23	10	16.5	71	32	25	94	13	320
PHSA20	20	M20x1.5	50	34	30	25	10	18	77	33	27.5	102	13	420
PHSA22	22	M22x1.5	54	37	32	28	12	20	84	37	30	111	13	540
PHSA25	25	M24x2	60	42	30	31	12	22	94	42	33.5	124	13	750
PHSA28	28	M27x2	66	46	41	35	14	24	103	41	37	136	13	820
PHSA30	30	M30x2	70	50	41	37	15	25	110	51	40	145	13	1300
