PTFE G5 Seals Full 6802 Bicycle Hub Bearing Anti Wear For Bicycle Hub

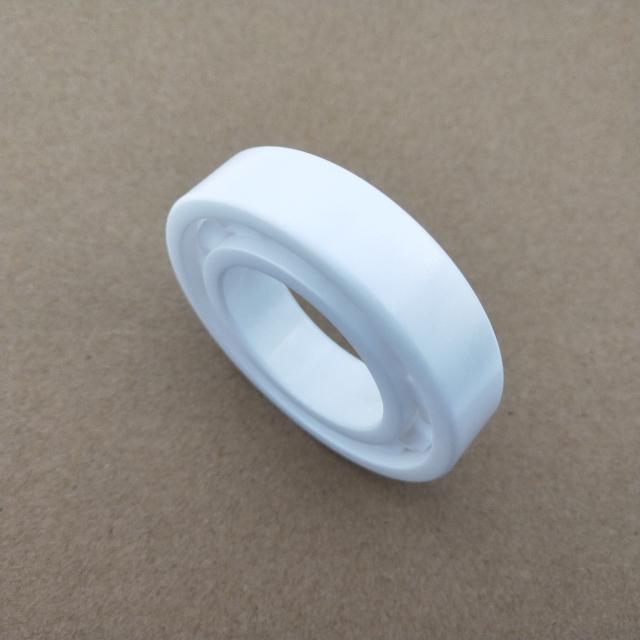

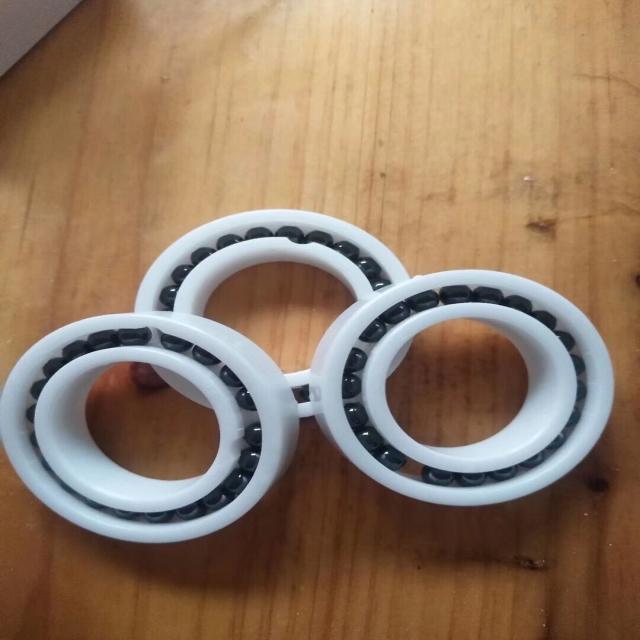

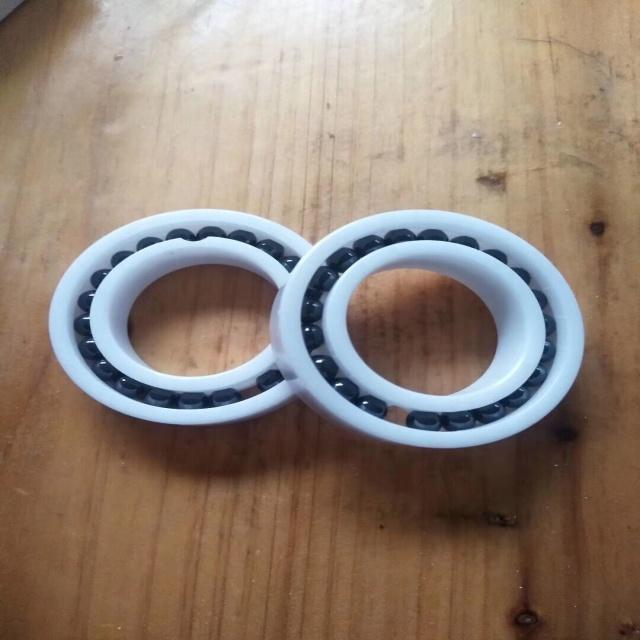

ZrO2 full ceramic bearing 6802 2RS for bicycle hub
Ceramic material composition:
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
...
The properties of ceramic:
·Excellent physical & chemical stability ·High temperature resistance
·Excellent wear & pressure & corrosion& insulation resistance and thermal conductivity.
Applications:
Full Ceramic bearings are used in specialty applications like chemical baths, vacuum environments, semiconductor manufacturing, food processing industries and more. Any extreme environment that requires non-corrosive, non-conductive or non-magnetic bearings is ideal for full ceramic bearings.
Related with ZrO2 full ceramic bearing 6802 2RS for bicycle hub
| Bearing No. | Dimensions | Load Ratings | Weight | ||||||
| Open | ZZ | 2RS | d | D | B | r | Dynamic | Static | |
| 61802 | 61802ZZ | 61802-2RS | 15 | 24 | 5 | 0.3 | 1.92 | 1.18 | 0.008 |
| 61803 | 61803ZZ | 61803-2RS | 17 | 26 | 5 | 0.3 | 2.18 | 1.28 | 0.008 |
| 61804 | 61804ZZ | 61804-2RS | 20 | 32 | 7 | 0.3 | 3.45 | 2.25 | 0.02 |
| 61805 | 61805ZZ | 61805-2RS | 25 | 37 | 7 | 0.3 | 3.7 | 2.65 | 0.022 |
| 61806 | 61806ZZ | 61806-2RS | 30 | 42 | 7 | 0.3 | 4 | 3.15 | 0.026 |
| 61807 | 61807ZZ | 61807-2RS | 35 | 47 | 7 | 0.3 | 4.12 | 3.45 | 0.03 |
| 61808 | 61808ZZ | 61808-2RS | 40 | 52 | 7 | 0.3 | 4.4 | 3.5 | 0.034 |
| 61809 | 61809ZZ | 61809-2RS | 45 | 58 | 7 | 0.3 | 4.65 | 4.32 | 0.04 |
| 61810 | 61810ZZ | 61810-2RS | 50 | 65 | 7 | 0.3 | 5.1 | 4.68 | 0.057 |
| 61811 | 61811ZZ | 61811-2RS | 55 | 72 | 9 | 0.3 | 6.72 | 6.5 | 0.083 |
| 61812 | 61812ZZ | 61812-2RS | 60 | 78 | 10 | 0.3 | 9.15 | 8.75 | 0.11 |
| 61813 | 61813ZZ | 61813-2RS | 65 | 85 | 10 | 0.6 | 10 | 9.32 | 0.114 |
| 61814 | 61814ZZ | 61814-2RS | 70 | 90 | 10 | 0.6 | 10.5 | 10.8 | 0.13 |
| 61815 | 61815ZZ | 61815-2RS | 75 | 95 | 10 | 0.6 | 10.6 | 11 | 0.15 |
| 61816 | 61816ZZ | 61816-2RS | 80 | 100 | 10 | 0.6 | 11 | 11.8 | 0.16 |
| 61903 | 61903ZZ | 61903-2RS | 17 | 30 | 7 | 0.3 | 4.3 | 2.32 | 0.02 |
| 61904 | 61904ZZ | 61904-2RS | 20 | 37 | 9 | 0.3 | 6.55 | 3.6 | 0.04 |
| 61905 | 61905ZZ | 61905-2RS | 25 | 42 | 9 | 0.3 | 7.36 | 4.55 | 0.05 |
| 61906 | 61906ZZ | 61906-2RS | 30 | 47 | 9 | 0.3 | 7.55 | 5.08 | 0.06 |
| 61907 | 61907ZZ | 61907-2RS | 35 | 55 | 10 | 0.6 | 9.55 | 6.85 | 0.086 |
| 61908 | 61908ZZ | 61908-2RS | 40 | 62 | 12 | 0.6 | 12 | 8.98 | 0.11 |
| 61909 | 61909ZZ | 61909-2RS | 45 | 68 | 12 | 0.6 | 12.3 | 9.72 | 0.14 |
| 61910 | 61910ZZ | 61910-2RS | 50 | 72 | 12 | 0.6 | 12.8 | 11.2 | 0.14 |
| 61911 | 61911ZZ | 61911-2RS | 55 | 80 | 13 | 1 | 13 | 13.5 | 0.19 |
| 61912 | 61912ZZ | 61912-2RS | 60 | 85 | 13 | 1 | 14 | 14.2 | 0.22 |
| 61913 | 61913ZZ | 61913-2RS | 65 | 90 | 13 | 1 | 14.5 | 17 | 0.23 |
| 61914 | 61914ZZ | 61914-2RS | 70 | 100 | 16 | 1 | 16.5 | 17.2 | 0.35 |
| 61915 | 61915ZZ | 61915-2RS | 75 | 105 | 16 | 1 | 18 | 17.5 | 0.42 |
| 61916 | 61916ZZ | 61916-2RS | 80 | 110 | 16 | 1 | 27.57 | 25.2 | 0.44 |
