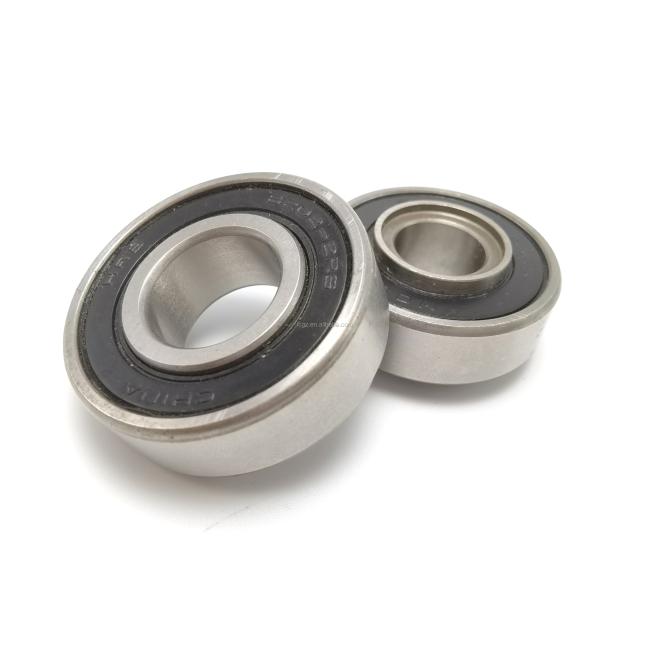

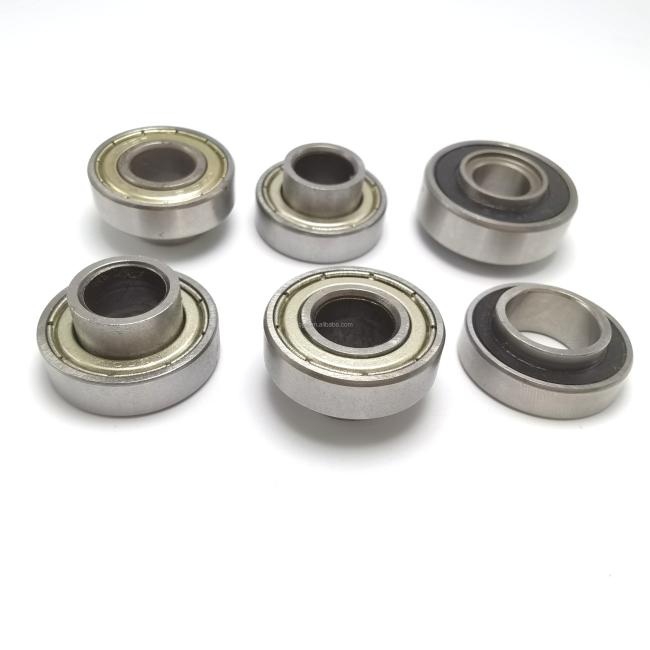

Flanged Deep Groove Ball Bearing F6011-2RS/ZZ Conductive Miniature
Flanged Bearing in Deep Groove Ball Bearing F6011-2RS/ZZ Conductive Miniature
Product Description of Flanged Bearing in Deep Groove Ball Bearing:
These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds.
Feature of deep groove ball bearing:
1. AISI420C stainless steel races
2. AISI304 stainless steel cage/Nylon cage
3. Stainless steel balls
4. Dry lube/ Grease/ Oil
5. Rubber seals/ ZZ metal shields
6. High speed
7. Long spin time
8. Low friction
9. Rustproof and corrosion resistance
10. Durable
11. Easy to maintenance
6000 Series Bearings
|
Bearing No. |
Bore d mm in. |
O.D d mm In. |
width B mm in. |
chamfer |
(KN) load rating |
||||
|
rmin mm |
Dynamic cr |
Static |
|||||||
|
6000 |
10 |
0.3937 |
26 |
1.0236 |
8 |
0.315 |
0.3 |
4.55 |
1.95 |
|
6001 |
12 |
0.4724 |
28 |
1.1024 |
8 |
0.315 |
0.3 |
5.1 |
2.39 |
|
6002 |
15 |
0.5906 |
32 |
1.2598 |
9 |
0.3543 |
0.3 |
5.6 |
2.84 |
|
6003 |
17 |
0.6693 |
35 |
1.378 |
10 |
0.3937 |
0.3 |
6.8 |
3.35 |
|
6004 |
20 |
0.7874 |
42 |
1.6535 |
12 |
0.4724 |
0.6 |
9.4 |
5.05 |
|
6005 |
25 |
0.9843 |
47 |
1.8504 |
12 |
0.4724 |
0.6 |
10.1 |
5.85 |
|
6006 |
30 |
1.1811 |
55 |
2.1654 |
13 |
0.5118 |
1 |
13.2 |
8.3 |
|
6007 |
35 |
1.3779 |
62 |
2.4409 |
14 |
0.5512 |
1 |
16 |
10.3 |
|
6008 |
40 |
1.5748 |
68 |
2.6772 |
15 |
0.5906 |
1 |
16.8 |
11.5 |
|
6009 |
45 |
1.7716 |
75 |
2.9528 |
16 |
0.6299 |
1 |
21 |
15.1 |
|
6010 |
50 |
1.965 |
80 |
3.1496 |
16 |
0.6299 |
1.1 |
21.8 |
16.6 |
|
6011 |
55 |
2.1653 |
90 |
3.5433 |
18 |
0.7087 |
1.1 |
28.3 |
21.2 |
|
6012 |
60 |
2.362 |
95 |
3.74 |
18 |
0.7087 |
1.1 |
29.5 |
23.2 |
|
6013 |
65 |
2.559 |
100 |
3.937 |
18 |
0.7087 |
1.1 |
30.5 |
25.2 |
|
6014 |
70 |
2.7559 |
110 |
4.3307 |
20 |
0.7874 |
1.1 |
38 |
31 |
|
6015 |
75 |
2.9528 |
115 |
4.5276 |
20 |
0.7874 |
1.1 |
39.5 |
33.5 |
|
6016 |
80 |
3.1496 |
125 |
4.9213 |
22 |
0.8661 |
1.1 |
47.5 |
40 |
|
6017 |
85 |
3.3465 |
130 |
5.1181 |
22 |
0.8661 |
1.1 |
49.5 |
43 |
|
6018 |
90 |
3.5433 |
140 |
5.5118 |
24 |
0.9449 |
1.5 |
58 |
49.5 |
|
6019 |
95 |
3.7402 |
145 |
5.7087 |
24 |
0.9449 |
1.5 |
60.5 |
54 |
|
6020 |
100 |
3.937 |
150 |
5.9055 |
24 |
0.9449 |
1.5 |
60 |
54 |
Application of deep groove ball bearing:
Deep groove ball bearings can be used for: transmission, instrumentation, motors, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo.
