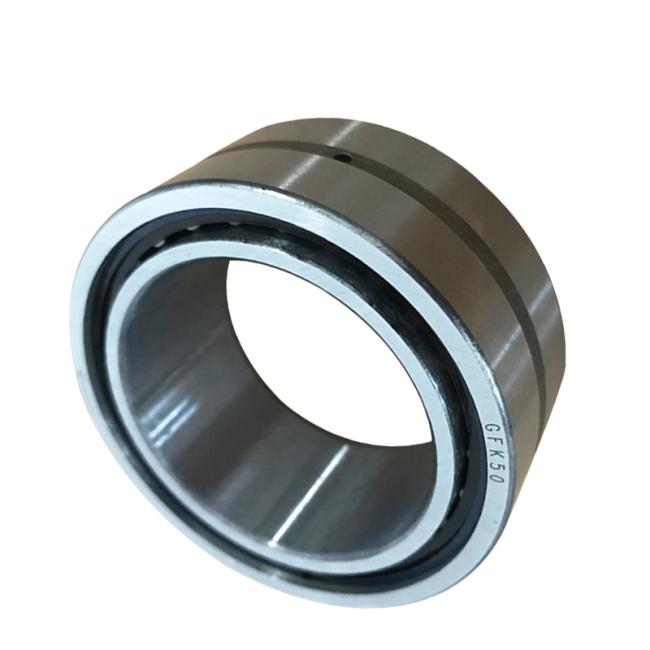

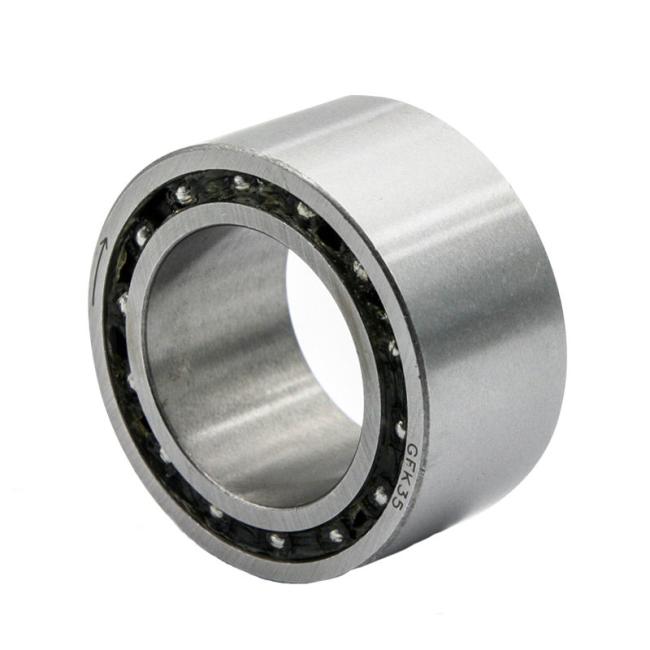

GFK20 One Way Freewheel Sprag Clutch Bearing Cam Clutch Bearing GFK 20
Price:
negotiable
MOQ:
negotiable
Delivery Time:
20-45DAYS
Brand:
SFT
Product Description
GFK20 One Way Freewheel Sprag Clutch Bearing Cam Clutch Bearing GFK 20
Product Description
Delivery detail: It is delivered grease lubricated ready for installation.
Advantage: Maintenance Free, Easy Installation
The main function is to prevent the reverse, accurate positioning, transmission torque, cutting torque, also known as non-return device or one-way bearing.
GFK20 one-way overrunning clutch is mainly used in general machinery, packaging machinery, printing machinery, textile machinery, transmission machinery, food machinery, plastic machinery, petrochemical machinery, lifting transportation machinery, high voltage switch, fan, deceleration machine, compressor, machine tools and so on.
Technical Datas
GFK20 Overrunning Clutch Can be used as :
1.overrunning clutch
2.backstop clutch
3.indexing clutch
Dimensions and Capacities
|
Item |
GFK20 overrunning clutch |
|
Brand |
SUMA or OEM |
|
Precision |
P6 |
|
Type |
Sprag |
|
Type of support |
bearing support |
|
Bore Dia. (mm) |
20 |
|
Torque (Nm) |
51 |
|
Inner race overrunning speed (min-1) |
5500 |
|
Outer race overrunning speed (min-1) |
4000 |
|
Weight(kgs) |
0.09 |
| Type | Size |
TKN1) |
Overrunningspeeds |
Bearing series
|
Loads | ||||||||
|
Rollers dyn. |
Balls dyn. |
Rollers stat. |
Balls stat. |
||||||||||
GFK |
d | n imax2) | n amax3) | C | C | C0 | C0 | D | L | r | |||
| [mm] | [Nm] | [min-1] | [min-1] | [N] | [N] | [N] | [N] | [mm] | [mm] | [mm] | [kg] | ||
| 20 | 51 | 5500 | 4000 | 5904 | 5600 | 4400 | 2900 | 2750 | 37 | 23 | 0.5 | 0.09 | |
| 25 | 65 | 5300 | 3800 | 5905 | 6300 | 5300 | 3450 | 3350 | 42 | 23 | 0.5 | 0.11 | |
| 30 | 95 | 5000 | 3500 | 5906 | 7700 | 5500 | 4600 | 3650 | 47 | 23 | 0.5 | 0.13 | |
| 35 | 204 | 4600 | 3200 | 5907 | 8200 | 8500 | 5200 | 5700 | 55 | 27 | 1 | 0.2 | |
| 40 | 315 | 4200 | 3000 | 5908 | 8650 | 9300 | 5750 | 6700 | 62 | 30 | 1 | 0.3 | |
| 45 | 370 | 3800 | 2500 | 5909 | 9200 | 9700 | 6350 | 7300 | 68 | 30 | 1 | 0.34 | |
| 50 | 460 | 3400 | 2200 | 5910 | 9650 | 10000 | 6950 | 7800 | 72 | 30 | 1 | 0.36 | |
Mounting and Coupling
