AV70 AV Series Roller Type One Way Miler Overrunning Clutch Bearing For Food Machinery
AV70 AV Series Roller Type One Way Miler Overrunning Clutch Bearing For Food Machinery

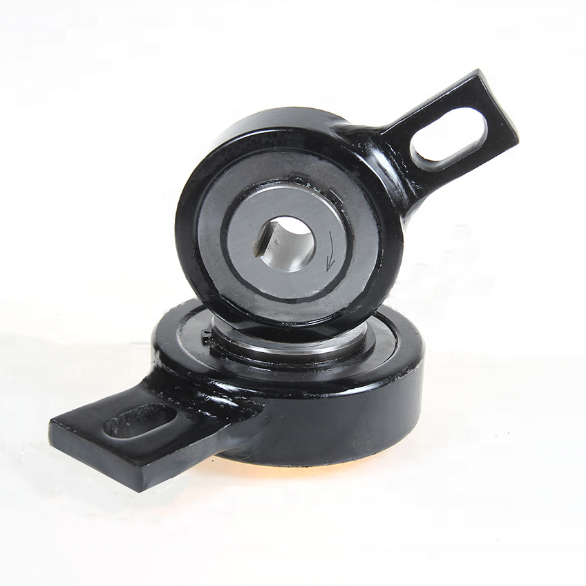

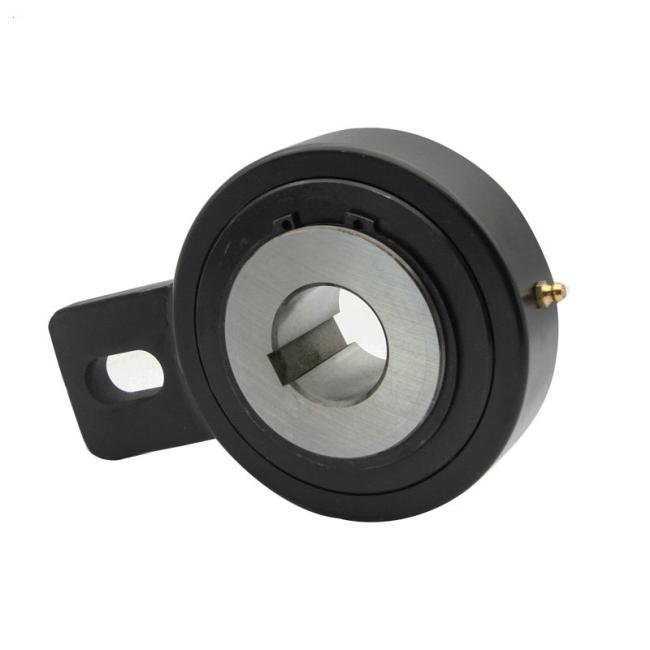

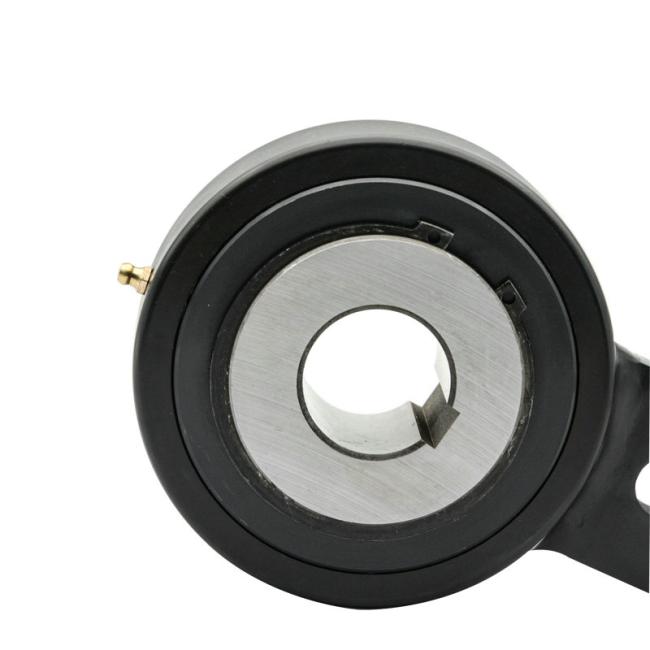

Type AV is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds , and sealed using shield protected metallic labyrinth seals.
Unit is delivered grease lubricated, ready to install in a horizontal or vertical position. Primarily used as a backstop, the torque capacity is high for a minimum space requirement. This design is suitable for use in difficult environments. A bolt, secured to a fixed part of the machine and passing
through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt
should be equal to 1-3 % of the slot width.
The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.
| Item | AV70 |
| Material | GCr15 |
| Outer dia. | 155 mm |
| Bore dia. | 70 mm |
| Weight | 5 kg |
| Torque | 2150 Nm |
| Drag Torque | 240 Ncm |
| Width | 20 mm |
| Port | Shanghai;Ningbo |
| Delivery time | 10-15 days |
Dimensions and Capacities
| Type | Size | TKN1) | Overrunning speed | Weight | Drag torque | ||||||||||
| AV | dH7 | nimax | D | D2 | L 1 | L | B | F | bB11 | N | E | f | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
| 20 | 265 | 450 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 0.8 | 1.3 | 18 | |
| 25 | 265 | 450 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 0.8 | 1.3 | 18 | |
| 30 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 110 | 15 | 35 | 8 | 1 | 3.5 | 130 | |
| 35 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 110 | 15 | 35 | 8 | 1 | 3.4 | 130 | |
| 40 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 110 | 15 | 35 | 8 | 1 | 3.3 | 130 | |
| 45 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.5 | 240 | |
| 50 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.4 | 240 | |
| 55 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.3 | 240 | |
| 60 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.2 | 240 | |
| 70 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5 | 240 | |
| 80 | 2900 | 200 | 190 | 110 | 64 | 20 | 80 | 155 | 20 | 40 | 10 | 1.5 | 8.7 | 360 | |
| 90* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | 220 | – | – | – | 3 | 24.5 | 360 | |
| 100* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | 220 | – | – | – | 3 | 23.5 | 360 | |
| 110* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | 220 | – | – | – | 3 | 22.5 | 360 | |
| 120* | 11000 | 130 | 300 | 180 | 110 | 30 | 140 | 260 | – | – | – | 3 | 42 | 600 | |
