Workshop Platform Steel Grating Plate 8mm Thick Skid Proof Electro Galvanizing
Workshop Platform Steel Grating Plate 8mm Thick Skid Proof Electro Galvanizing
Steel Walkway Of Workshop Platform Is Skid Proof Steel Grille Plate

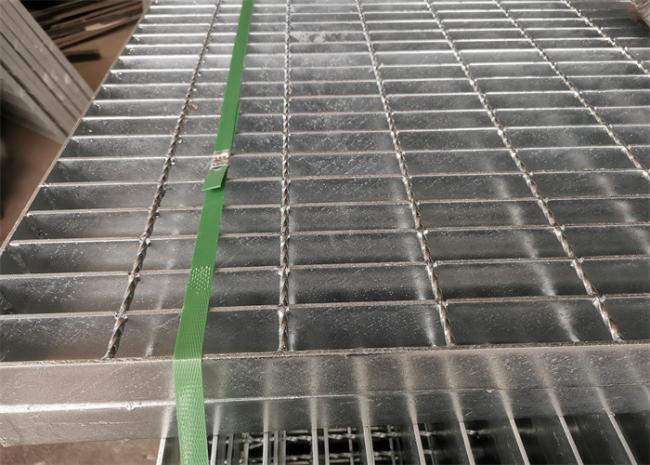

Steel Grating Plate Introduction
Stair step plate is steel grid plate processing (steel grid plate is made of flat steel in accordance with a certain spacing and cross bar arrangement, and welded into the middle with a square grid of steel products), also known as steel grid step plate.The surface of the product is generally treated with hot dip galvanizing or electric galvanizing.
Steel Grating PlateSpecifications
|
Product Name
|
Stair Tread
|
||
|
Grating style
|
1. Flat
2. Serrated 3. I bar 4. IS bar |
||
|
Bearing bar size
|
25*3 mm , 25*4 mm, 25*5 mm, 30*3 mm, 30*5 mm, 32*3 mm, 32*5 mm, 40*3 mm, 75*5 mm, 100*10 mm
|
||
|
Bearing bar pitch
|
Custom:15-90 mm
Routine Use: 25 mm, 30 mm, 35 mm, 40 mm
|
||
|
Twisted Cross Bar Pitch
|
50, 100 mm or according to your requirements
|
||
|
Surface process of gratings
|
1. Hot-dipped galvanizing
2. lacquering 3. Elector galvanizing 4. Untreated |
||
|
Standard
|
1. China: YB/T 4001.1-2007.
2. USA: ANSI/NAAMM (MBG531-88). 3. UK: BS4592-1987. 4. Australia: AS1657-1985. |
||
1. According to the installation form of the stair step board, it is divided into the welded fixed step and the bolted fixed step.
Among them, the welded fixed ladder pedal is ordinary steel grid plate, and the bolted fixed ladder pedal needs to be added to the steel grid plate 65X5mm(other specifications can be customized) flat steel as the side plate.
2. According to the skid resistance of the stair step board, it is divided into the ladder pedal with front guard board (pattern board or bar steel) and the steel ladder step board without front guard board.
Based on the safety consideration, it is recommended that customers use the stair step board with front guard board.
Steel Grating Plate Application
Purposes: stair step plate is mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.
Steel Grating Plate Advantages
1, the installation of the stepping plate is very simple, do not need complex installation;
2, ventilation, lighting, heat dissipation, explosion-proof, anti-slip performance is good;
3, high strength, light structure, long;
4, durable appearance, beautiful surface gloss;
5, maintenance is very simple, prevent accumulation of dirt.
Package delivery:
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.
Pre-sale service:
After the customer orders, we will have professional technical personnel to contact with the customer, in order to meet the customer's technical inquiry and production schedule.
After-sales:
After the goods are shipped, we will have professional technical personnel to docking with customers, so that when the goods arrive, there will be unloading problems, storage and installation problems. Our technical personnel will reply online within 24 hours. If there is a problem, we will docking within 2 hours and help customers solve the problem within 5 hours.
