Anti Slip Perforated Stair Treads Steel Grating Hot Dip Galvanized 65X5mm

Anti Slip Perforated Stair Treads Steel Grating Hot Dip Galvanized 65X5mm

Anti-Slip For Industrial Platform Perforated Stair Treads Steel Grating

Steel Grate Stair Treads Introduction

Stair step board is made of steel grid plate processing (steel grid is made of flat steel in accordance with a certain spacing and cross bar arrangement, and welded into a square grid in the middle of a steel product).
The surface of the product is generally treated with hot dip galvanizing and electric galvanizing.
The type of stair step board:
(1) According to the installation of the stair steel grid plate, it is divided into the welded fixed ladder pedal and the bolt fixed ladder pedal.
The welded and fixed ladder pedal is the steel grid plate, and the bolted ladder pedal needs to add 65X5mm flat steel to the steel grid plate as the side plate.
(2) according to the anti-skid requirements of the stair steel grid plate, it can be divided into two kinds: the ladder pedal with front guard plate (pattern plate or bar steel) and the ladder pedal without front guard plate.
T325/30/100(For step width greater than 215mm but not greater than 305mm) For safety reasons, it is recommended that the customer use the step with front guard.

Steel Grate Stair Treads Specifications

Steel Grate Stair Treads Application

1, can be added in the peripheral welding kick plate (side plate), decorative plate guard plate, installation connector and other accessories.
2. Flat steel with different specifications of flat steel is used to wrap the edge, or Angle steel, channel steel, square pipe and so on.
3. Handles and hinges can be installed on the platform steel grid plate that needs to be moved or opened frequently.
4, the edge of the welding standard: series 1 every five welding;
Series 2, one for every four welds;
Series 3 welds one per three.
The weld shall be a single fillet welding of not less than 3mm, and the weld length shall be 20mm.

Steel Grate Stair Treads Advantages

It has the characteristics of high strength and light structure: because the product adopts the solid grid pressure welding technology, it has the high bearing capacity, and is easy to hoisting and so on;Beautiful appearance, durable;The standard surface of steel grid plate is treated with hot dip zinc to make it have good anticorrosion ability, and the surface is glossy and beautiful.Good ventilation, lighting, heat dissipation, explosion-proof and skid proof performance;Prevent accumulation of dirt.

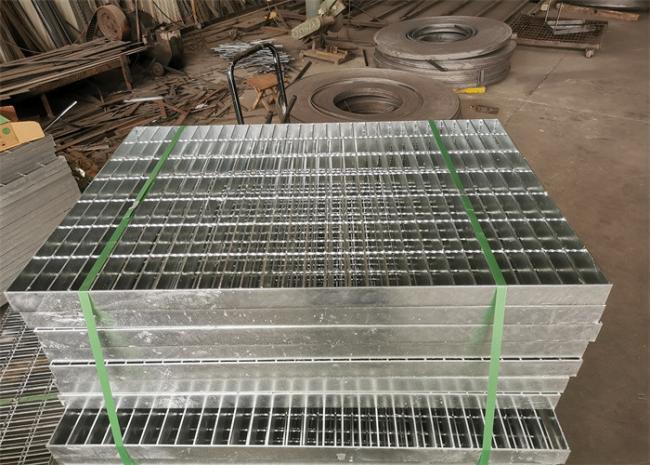

Package delivery:
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.


Pre-sale service:

After the customer orders, we will have professional technical personnel to contact with the customer, in order to meet the customer's technical inquiry and production schedule.


After-sales:
After the goods are shipped, we will have professional technical personnel to docking with customers, so that when the goods arrive, there will be unloading problems, storage and installation problems. Our technical personnel will reply online within 24 hours. If there is a problem, we will docking within 2 hours and help customers solve the problem within 5 hours.
