Panelized Walk-In Climatic Chamber Temperature Humidity Test Room 380V 3 Phase
ISO 9001:2015 certified manufacturer
RS-232, RS-485 serial communications · Stainless steel interior · USB Port for Data Storage · Door with heated viewing window & interior lights

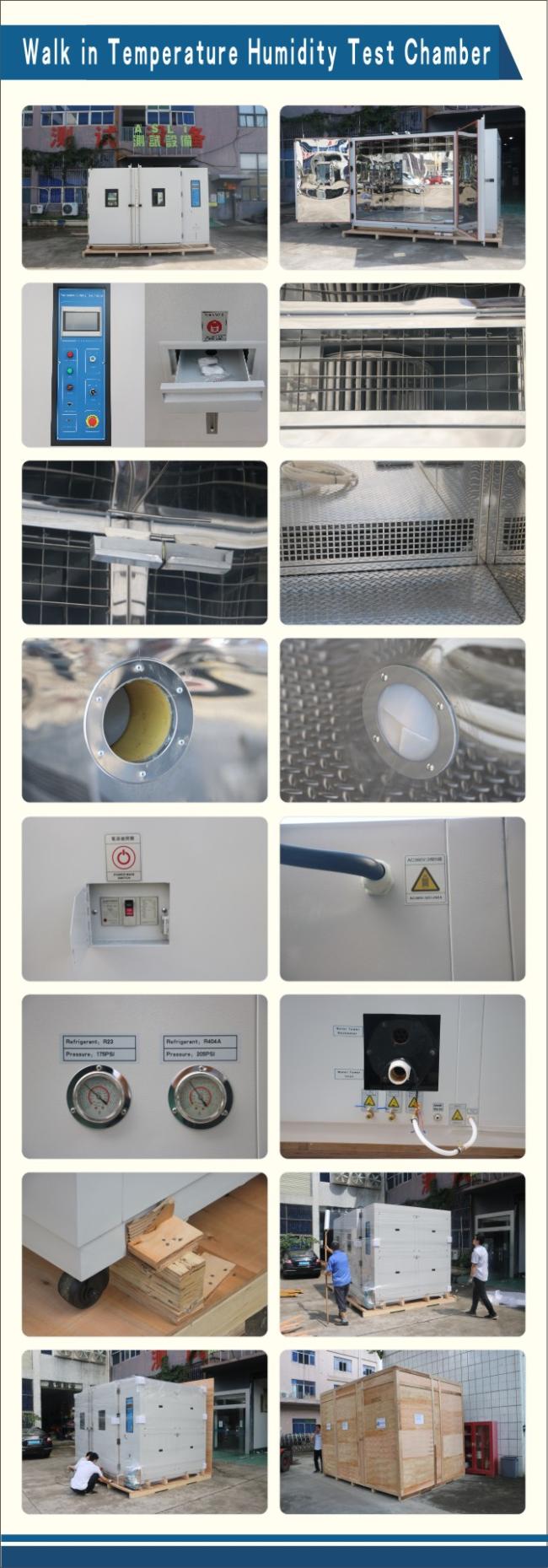

The Modular Walk-In Environmental Test Chamber with Door-to-Door Service is a custom temperature and humidity control room designed for reliability, stability, and climatic simulation testing. It is suitable for low temperature, high temperature, high and low temperature change, constant heat, and high and low temperature alternating heat tests. The size and function of the chamber can be changed according to user requirements. It features a block-type box body with an elegant appearance, and a scientific wind tunnel design that meets the needs of different customers. It adopts a touch screen and PLC program controller.
Applications: Quality inspection for all types of electronic products, electric appliances, communication equipment, instruments, automobiles, plastics, metals, food, chemicals, building materials, medical devices, and aerospace industry products.
| Parameter | Details |
|---|---|
| Model | THR-volume (low-temperature options: A ~ F) |
| Inner Dimensions (cm) | Customer designated space size and design |
| Temperature Range | Low Temperature: A: 25°C, B: 0°C, C: -20°C, D: -40°C, E: -60°C, F: -70°C High Temperature: 80°C (80°C ~ 200°C is optional) |
| Humidity Range | 20% ~ 98% R.H. (10%–98% R.H. / 5%–98% R.H. is a special optional condition, requires dehumidifier) |
| Indication Resolution / Distribution Uniformity of Temperature & Humidity | 0.1°C ; 0.1% R.H. / ±2.5°C ; ±3.5% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5°C ; ±2.5% R.H. |
| Temperature Rising / Falling Velocity | Rising: approx. 0.1 ~ 3.0°C/min Falling: approx. 0.3 ~ 1.0°C/min (Falling velocity min. 1.5°C/min is optional) |
| Cooling System | Water cooled |
| Protection Devices | Fuse-free switch, overload protection switch for compressor, high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart, Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V (±10%), 50/60 Hz, 3 phase 5 lines |
- Double-insulated airtight container, which can effectively isolate the internal temperature from leakage.
- The separation of the humidifier circuit from the electric circuit improves safety and protects the circuit against leakage from the water supply line.
- The fan motor provides greater cyclic airflow to avoid dead corners in the chamber, ensuring uniform distribution of temperature and humidity.
- The systems for heating up, cooling down, dehumidifying, and humidifying can be operated independently to reduce testing costs, extend machine operating life, and decrease failure rate.
- Refined door seal with silicone rubber ensures the body is leak-free.
- Insulation system uses ultra-fine glass fiber or rigid polyurethane foam insulation, which avoids unnecessary energy loss.
- Buzzers signal malfunctions for correction and maintenance before operation is resumed.
- Meets international test standards.

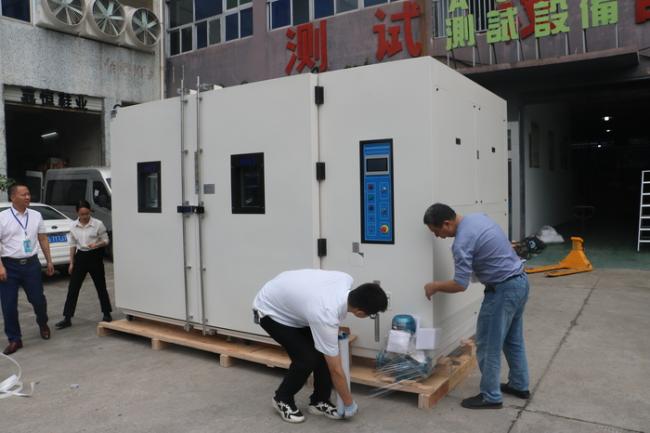

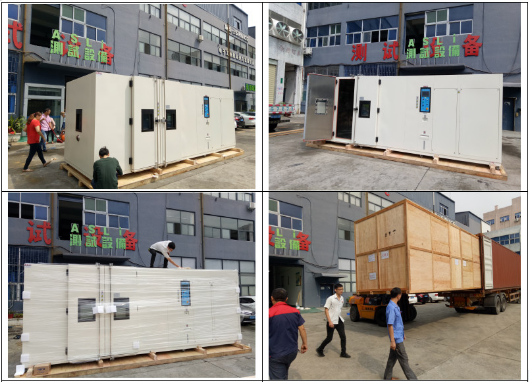

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

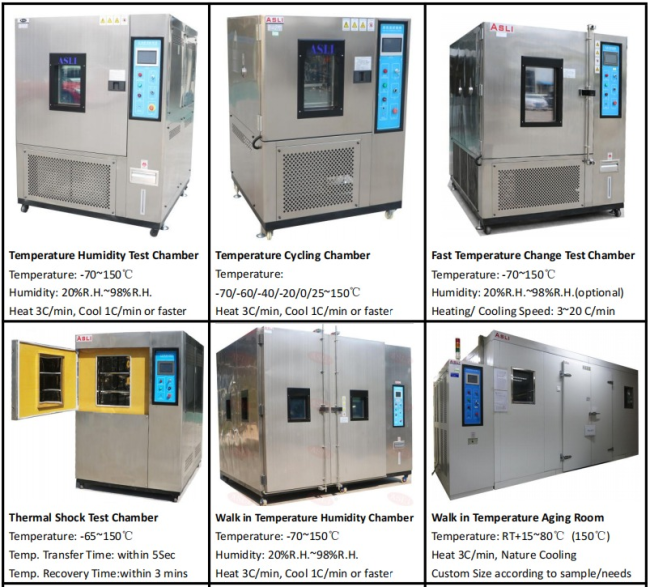

- Temperature Cycling Test Chamber
- Thermal Shock Test Chamber
- Salt Spray Test Chamber
- PCT/HAST Acceleration Aging Chamber
- High Frequency Vibration Shaker
- Mechanical Shock Impact Tester
- Drop Test Machine
A: Factory + trade (integration). We have our own factory.
A: Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
A: 1 Year warranty, but lifetime for services.
A: Our products apply to ISO, ASTM, GB, etc.
If you need more information about the Panelized Walk-In Climatic Chamber, please don't hesitate to send your inquiry.
