High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
ASLI
Product Description
High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker
Advanced electrodynamic vibration testing system designed for high-frequency vertical and horizontal vibration testing applications across various industries.
Technical Specifications
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |

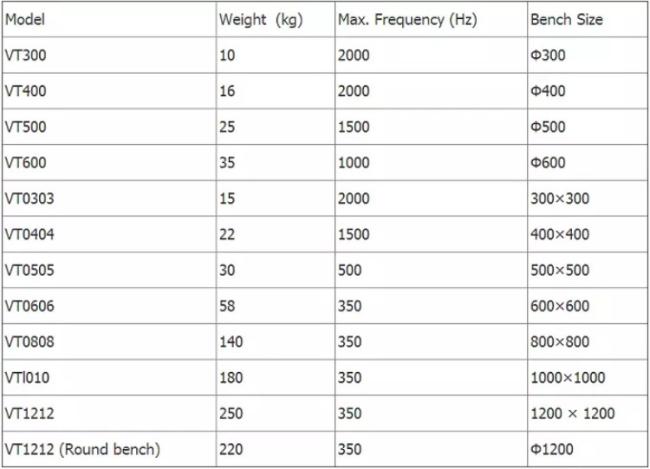

Technical Parameters of Vertical Expander

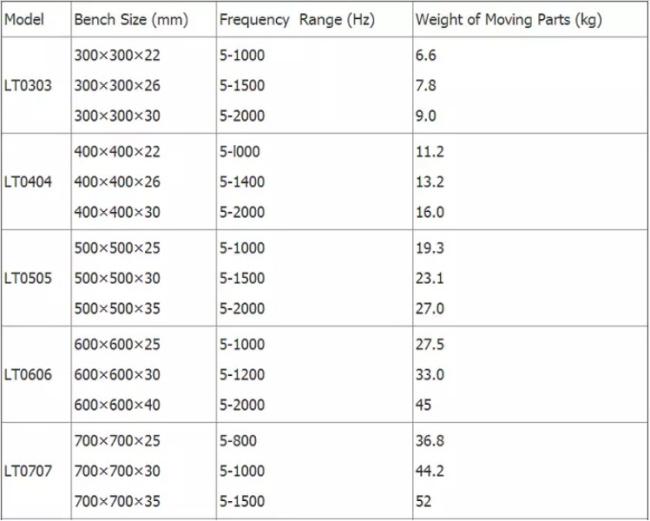

Technical Parameters of Horizontal Expander
High Frequency Vibration Test Machine Specifications
- Well-designed dynamic circle skeleton with higher stage axial resonance frequency
- Dual magnetic circuit design with low magnetic flux leakage, compact and rational structure
- Rocker rod roller bearings with import-oriented composite body stiffness orientation for superior eccentric load capacity

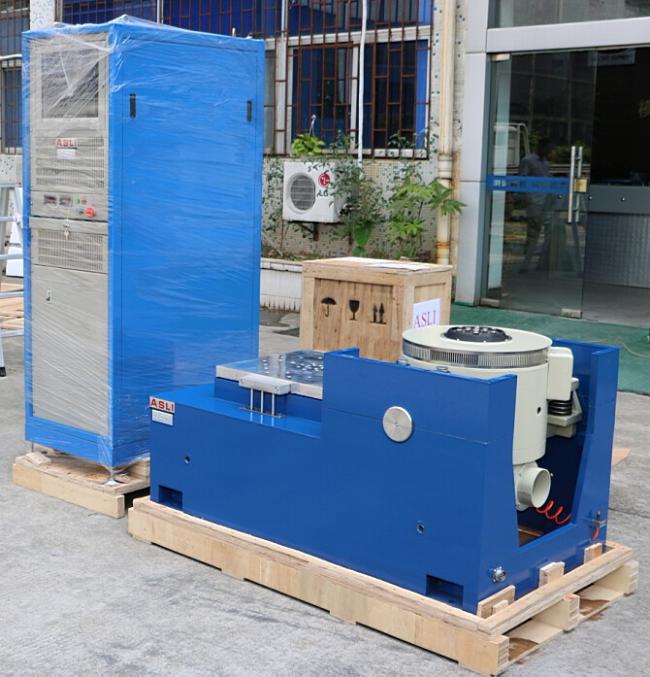

- Trunnion isolation foundation for dedicated hormone use with convenient mobile installation
- Advanced technology moving system ensuring high reliability of dynamic circle

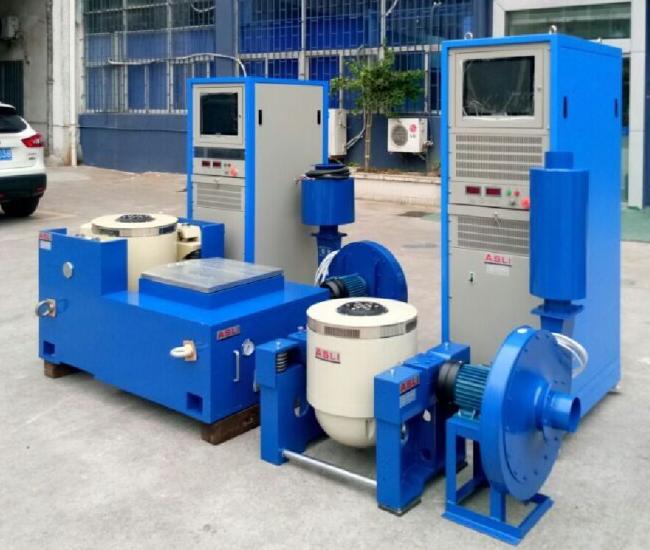

- Innovative duct design for enhanced cooling efficiency
- Superior static stiffness with minimal dynamic stiffness bearing balloon, improving vibration table bearing capacity and low-frequency performance

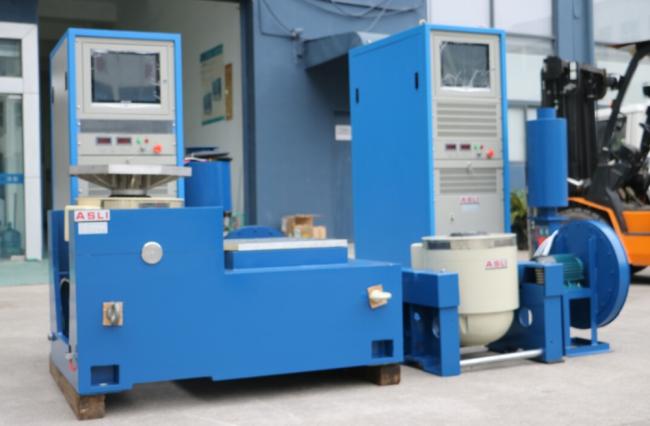

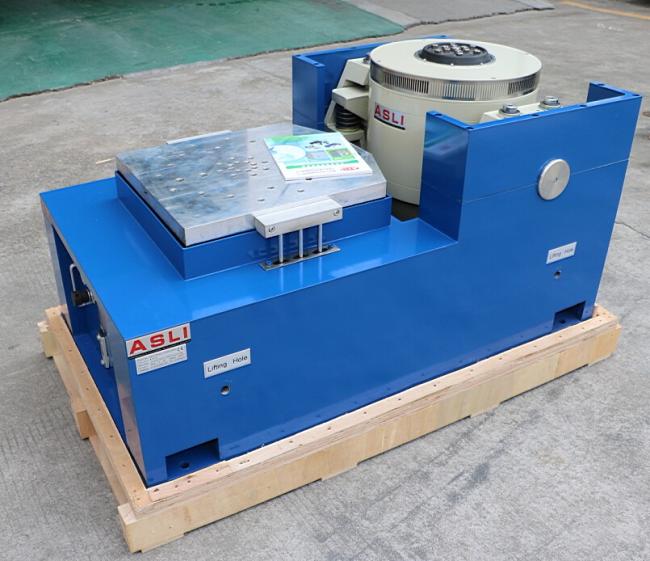

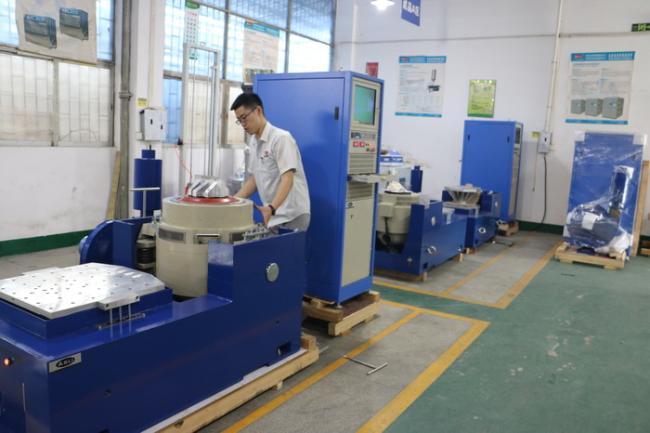

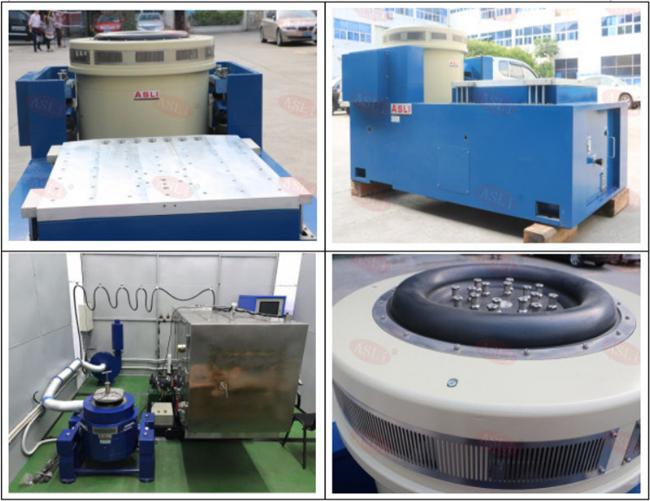

Detailed Product Images
Other Products

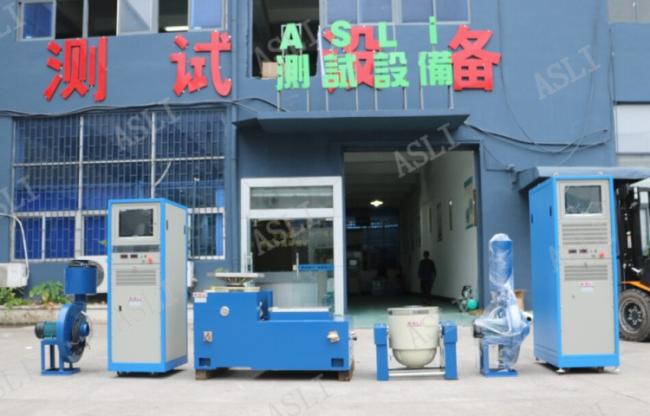

Our Company
ASLI specializes in manufacturing precision testing equipment including: climatic chambers, temperature chambers, humidity chambers, walk-in chambers, UV aging chambers, thermal shock chambers, xenon chambers, xenon combined UV aging chambers, PCT chambers, HAST chambers, vibration chambers, electrodynamic shakers, mechanical shock testers, and climatic combined vibration chambers.
Packing & Delivery
Our Service
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker, please don't hesitate to send your inquiry.
