1000kg.f Exciting Force Testing Vibration Shaker
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
ASLI
Product Description

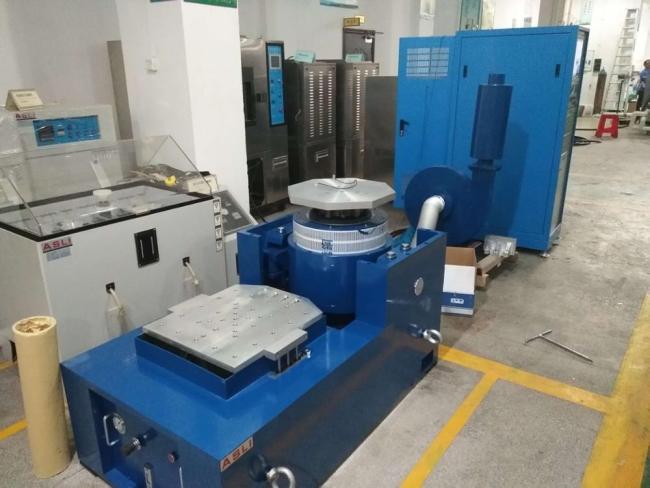

1000kg.f Exciting Force Testing Vibration Shaker
Professional electrodynamic vibration testing system designed for comprehensive vibration analysis across multiple industries including defense, aerospace, communications, and electronics.
Product Overview
High Frequency Vibration Test Machine featuring advanced double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation technology. Capable of performing X, Y, Z three-axis sinusoidal vibration tests, broadband random vibration tests, classical pulse tests (half-sine, trapezoidal, saw tooth wave), and shock response spectrum tests.
Technical Specifications
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ87 |
Key Features
- Well-designed dynamic circle skeleton with higher stage axial resonance frequency
- Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for superior eccentric load capacity
- Trunnion isolation foundation for mobile installation convenience
- Advanced moving coil system ensuring high reliability
- New duct design for enhanced cooling effect
- Superior static stiffness and dynamic stiffness with minimal bearing ballooning, increasing vibration table capacity and improving low-frequency performance
Expander Technical Parameters

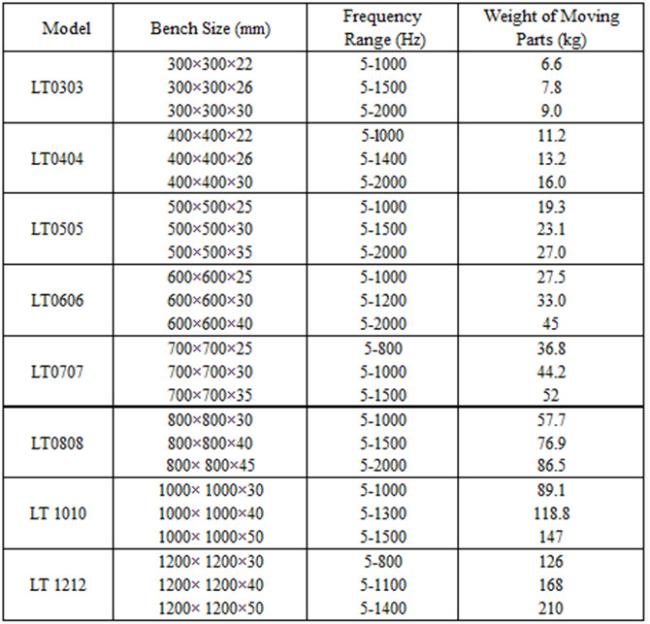

Horizontal Expander

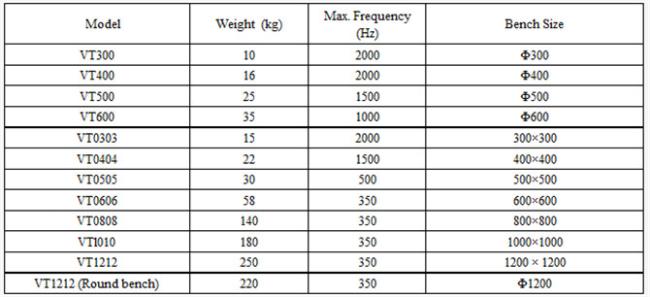

Vertical Expander

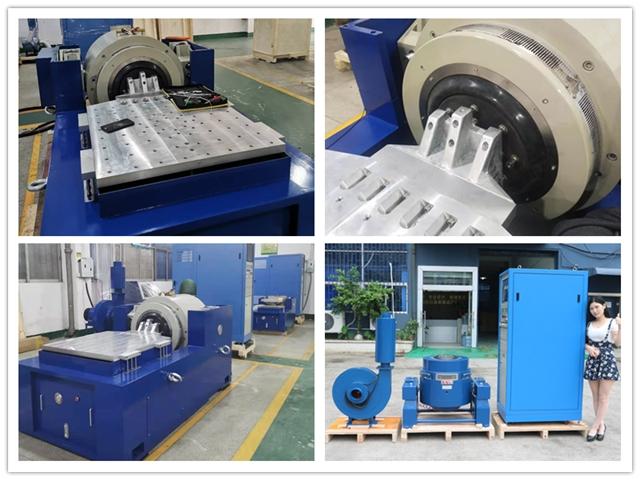

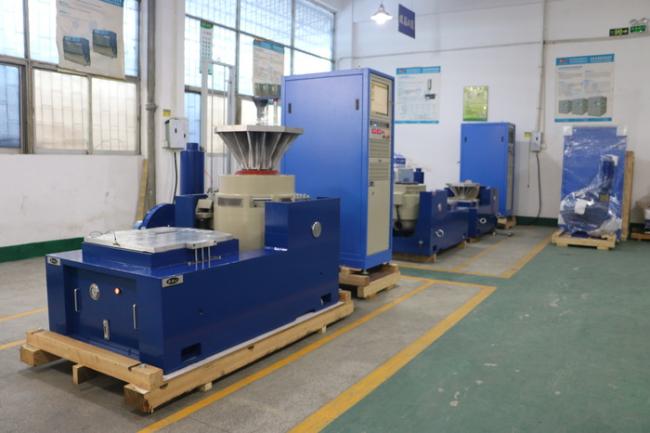

Product Gallery
Certification & Quality Assurance
Official China 3rd party calibration report and CE certification

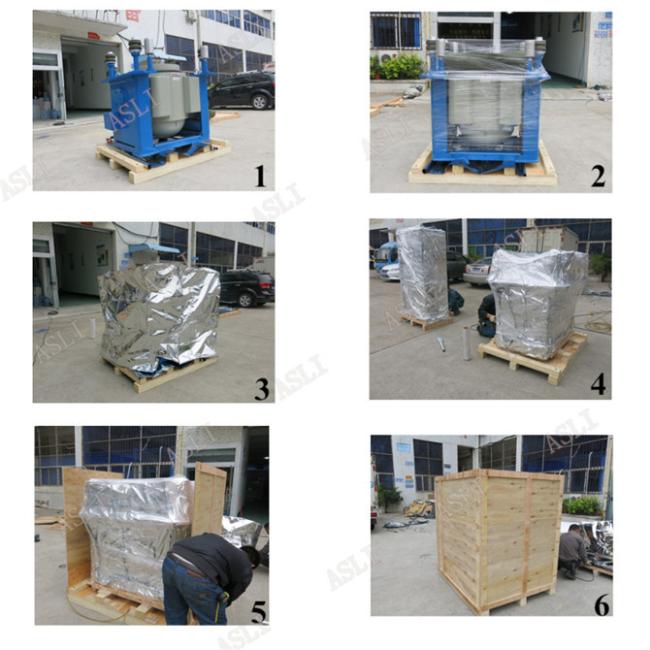

Packaging & Shipping
Comprehensive packaging protection including PP film wrapping, vacuum packaging, 10mm thickness PU foam for collision avoidance, strengthened plywood case, and standard ASLI case marking.
Customer Support & Services
- High quality guarantee with 12-month warranty
- Professional documentation and shipping
- Custom packaging with photos provided before shipment
- Quick response within 48 hours with solutions within 3 working days
- Professional after-service from experienced engineers

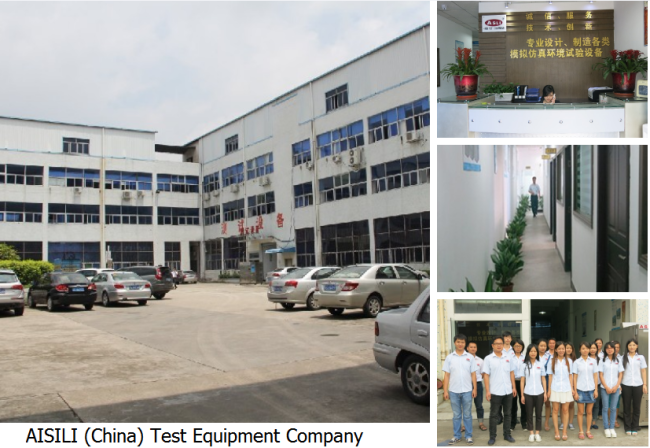

Company Information
ASLI Factory: 28-year history testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. The 1000kg.f Exciting Force Testing Vibration Shaker is our star product with CE certification.
Main Product Range
Environmental chambers, temperature (humidity) chambers, thermal shock chambers, PCT/Hast chambers (Highly accelerated stress test chambers), ESS chambers, walk-in stability chambers, vacuum ovens, electrodynamic vibration shakers, mechanical shock testers, environmental combined vibration chambers, and more.
Frequently Asked Questions
Are you a trading company or factory?
Factory with 28 years focusing on test instruments field and 4 years exporting experience.
What is the delivery time after order placement?
Generally about 20 days. If we have finished products, we can arrange shipment within 3 days. Production lead times depend on specific items and quantities.
What about warranty and after-sales services?
12 months warranty. After warranty period, our professional after-sale service team provides technical support and handles customer problems and complaints professionally and timely.
