Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Price:
Price negotiation
MOQ:
1
Delivery Time:
5-8
Brand:
Caterpillar
Product Description

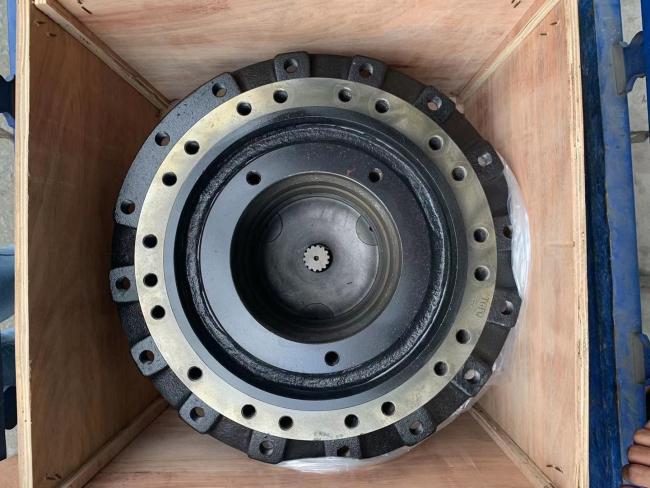

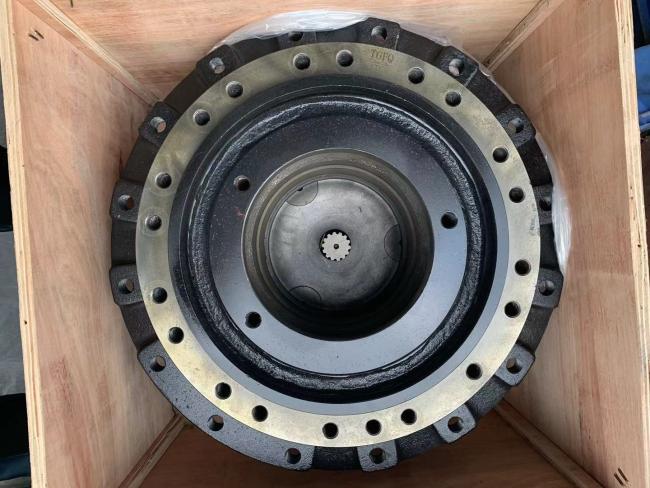

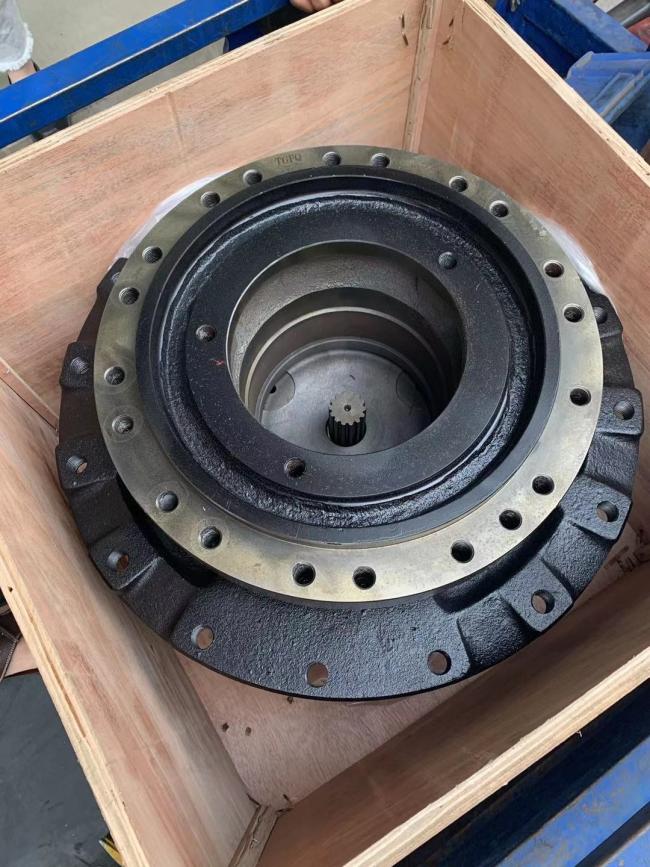

Caterpillar Excavator Final Device E315B 320C 325D 329E Travel Gearbox cat 330D 336D 345B 349D Track Drive
Product Description
CA2966218
296-6218
2966218
EXCAVATOR 328D LCR 330D 330D L 330D LN 330D MH 336D 336D L 336D LN
MOBILE HYD POWER UNIT 330D 336D L Caterpillar
DRIVE GP-FINAL
296-6218 DRIVE GP-FINAL -WITHOUT MOTOR
S/N JJM1-223
PART OF 296-6217 DRIVE GP-FI
Information OEM
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3E-2338 | [2] | PLUG-PIPE | |
| 2. | 7Y-0639 | [1] | GEAR-SUN (21-TEETH) | |
| 3. | 7Y-0642 | [1] | GEAR-RING (63-TEETH) | |
| 4. | 7Y-0643 | [1] | CARRIER | |
| 5. | 7Y-0645 | [1] | CARRIER | |
| 6. | 7Y-0659 | [3] | GEAR-PLANETARY (22-TEETH) | |
| 7. | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 8. | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 9. | 7Y-0663 | [4] | GEAR-PLANETARY (20-TEETH) | |
| 10. | 7Y-0667 | [1] | RING-RETAINING | |
| 11. | 7Y-0673 | [1] | GEAR-RING (73-TEETH) | |
| 12. | 7Y-0676 | [3] | GEAR-PLANETARY (24-TEETH) | |
| 13. | 7Y-0731 | [1] | CARRIER AS | |
| 13A. | 7Y-0656 | [3] | SHAFT-PLANETARY | |
| 14. | 7Y-1056 BJ | [1] | SHIM (0.8-MM THK) | |
| 7Y-1057 BJ | [1] | SHIM (1-MM THK) | ||
| 267-6809 BJ | [1] | SHIM (0.75-MM THK) | ||
| 267-6810 BJ | [1] | SHIM (0.85-MM THK) | ||
| 267-6811 BJ | [1] | SHIM (0.9-MM THK) | ||
| 267-6812 BJ | [1] | SHIM (0.95-MM THK) | ||
| 267-6813 BJ | [1] | SHIM (1.2-MM THK) | ||
| 267-6814 BJ | [1] | SHIM (1.4-MM THK) | ||
| 267-6815 BJ | [1] | SHIM (1.8-MM THK) | ||
| 267-6816 BJ | [1] | SHIM (2-MM THK) | ||
| 267-6817 BJ | [1] | SHIM (2.3-MM THK) | ||
| 16. | 7Y-1094 M | [14] | WASHER (66X102X1-MM THK) | |
| 17. | 7Y-5235 M | [20] | BOLT (M24X3X190-MM) | |
| 18. | 094-0577 | [1] | PLATE (7-MM THK) | |
| 19. | 094-0578 | [1] | PLATE (8-MM THK) | |
| 20. | 094-0579 | [1] | PLATE (9-MM THK) | |
| 21. | 094-0580 | [1] | PLATE (10-MM THK) | |
| 22. | 110-7231 | [1] | GEAR-SUN (18-TEETH) | |
| 23. | 114-1541 J | [6] | PIN-DOWEL | |
| 24. | 191-2521 | [1] | GEAR-SUN (23-TEETH) | |
| 25. | 191-2526 | [1] | COVER | |
| 26. | 199-4582 | [3] | BEARING AS | |
| 27. | 199-4583 | [11] | BEARING AS | |
| 28. | 227-6190 J | [1] | HOUSING-MOTOR | |
| 29. | 227-6191 J | [1] | HOUSING (SPROCKET) | |
| 30. | 227-6192 J | [1] | GEAR-COUPLING (66-TEETH) | |
| 31. | 255-2272 CJ | [1] | SEAL GP-DUO-CONE | |
| 205-9114 | [2] | RING-TORIC | ||
| 41. | 279-0344 J | [2] | BEARING AS-TAPERED ROLLER | |
| 42. | 093-1731 | [1] | RING-RETAINING | |
| 43. | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 44. | 095-0891 | [7] | PIN-SPRING | |
| 45. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 46. | 191-2645 | [1] | COUPLING | |
| 47. | 2P-3628 | [1] | SEAL-O-RING | |
| 48. | 6V-8133 JM | [10] | BOLT (M24X3X80-MM) | |
| 49. | 6V-8237 J | [10] | WASHER (26X44X4-MM THK) | |
| 50. | 7M-8485 | [2] | SEAL-O-RING | |
| 51. | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) | |
| 52. | 7Y-0644 | [1] | SPACER (163X190X8-MM THK) | |
| 53. | 8T-4167 | [20] | WASHER-HARD (26X44X4-MM THK) | |
| 54. | 8T-4240 | [3] | RING-RETAINING | |
| 55. | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 56. | 1U-8846 B | SEALANT-GASKET | ||
| AVAILABLE REPAIR KIT(S): | ||||
| 296-6219 J | [1] | KIT-HOUSING (FINAL DRIVE) | ||
