7I-8178 Engine 4N5692 Oil Ring Piston 3400 Cylinder Liner 7I8178 Piston As Ring 4N-5692

Price Negotiable

Price: Price negotiation

MOQ: 1

Delivery Time: 3-5

Brand: Caterpillar

Product Description

7I8178 PISTON AS Caterpillar parts 350 PISTON

Product Description

CA7I8178
7I-8178
7I8178

EXCAVATOR 350 Caterpillar

350 & 350 L Excavators 2ZL00001-UP (MACHINE) POWERED BY 3306 Engine

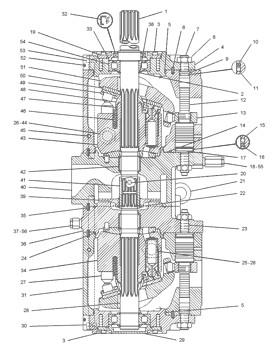

PUMP GP-PISTON

107-6478 PUMP GP-PISTON -FRONT, REAR
S/N 2ZL1-UP; 3ML1-UP
PART OF 087-4750 PUMP GP-MAIN HYDRAULIC

Information

Pos.	Part No	Qty	Parts name
1.	7I-8143	[1]	SHAFT-FRONT
2.	6V-5204	[2]	RING-RETAINING
3.	8T-1158 M	[8]	BOLT-SOCKET HEAD (M8X1.25X20-MM)
4.	107-6477	[2]	SUPPORT
5.	7I-8168	[2]	SEAL-O-RING (169.4MM ID)
6.	095-0882	[5]	PIN-SPRING
7.	7I-8174 M	[2]	SETSCREW
8.	8T-4131 M	[4]	NUT (M20X2.5-THD)
9.	7I-8167	[2]	STOP
10.	7I-8171	[2]	RING-BACKUP
11.	109-1294	[2]	SEAL-O-RING
12.	7I-8165	[2]	PISTON-SERVO
13.	7I-8182	[2]	PIN AS
14.	095-1575	[15]	SEAL-O-RING
15.	109-1296	[2]	SEAL-O-RING
16.	7I-8172	[2]	RING-BACKUP
17.	7I-8166	[2]	STOPPER
18.	3J-1907	[2]	SEAL-O-RING
	9S-4191	[2]	PLUG (9/16-18-THD)
19.	7I-8156	[1]	COVER
20.	096-1445	[5]	PLUG
21.	8T-3220 M	[2]	EYEBOLT
22.	095-1706	[1]	SEAL-O-RING
23.	7I-8175	[2]	SETSCREW
24.	7I-8169	[3]	SEAL-O-RING
25.	7I-8177	[2]	ADAPTER
26.	095-1592	[4]	SEAL-O-RING
27.	7I-8178	[2]	PISTON AS
28.	7I-8144	[1]	SHAFT-REAR
29.	7I-8157	[1]	COVER
30.	102-2564 M	[4]	BOLT-SOCKET HEAD
31.	7I-8158	[2]	BODY-CASING
32.	7I-8170	[1]	SEAL-LIP TYPE
33.	095-1715	[2]	SEAL-O-RING
34.	7I-8180	[1]	BARREL AS
35.	5I-4168	[2]	PIN
36.	7I-8160	[1]	COVER-VALVE
37.	095-1579	[2]	SEAL-O-RING
38.	7I-8148	[3]	SPACER-BEARING
39.	7I-8149	[1]	IMPELLER
40.	7I-8159	[1]	COVER-VALVE
41.	7I-8145	[1]	COUPLING
42.	7I-8147	[2]	BEARING AS-NEEDLE
43.	7I-8179	[1]	BARREL AS
44.	7I-8163	[2]	PLUG
45.	7I-8164	[4]	ORIFICE
46.	7I-8152	[18]	SPRING-CYLINDER
47.	7I-8153	[2]	SPACER
48.	099-8141	[2]	BUSHING
49.	099-8144	[2]	PLATE
50.	7I-8154	[2]	PLATE
51.	107-6476	[2]	SWASHPLATE AS
52.	8T-6759	[28]	PLUG-PIPE
53.	102-2563 M	[4]	BOLT-SOCKET HEAD
54.	7I-8146	[2]	BEARING-ROLLER
55.	107-6585	[1]	ADAPTER
56.	5I-8784	[1]	ADAPTER
