168-4538 Engine 9T2306 Pump Group Piston Cylinder Liner 1684538 Tube A Ring 9T-2306

Name: 168-4538 Engine 9T2306 Pump Group Piston Cylinder Liner 1684538 Tube A Ring 9T-2306
Brand: Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department

Price Negotiable

Price: Price negotiation

MOQ: 1

Delivery Time: 3-5

Brand: Caterpillar

Product Description

9T2306 PUMP GP-PISTON Caterpillar parts 245B PUMP

Product Description

CA9T2306
9T-2306
9T2306

EXCAVATOR 245B Caterpillar

Caterpillar SIS

245B EXCAVATOR 6MF00001-00512 (MACHINE) POWERED BY 3406 ENGINE » 9T-2306 PUMP GP-PISTON
245B EXCAVATOR 1SJ00001-00712 (MACHINE) POWERED BY 3406 ENGINE » 9T-2306 PUMP GP-PISTON
245B SERIES II EXCAVATOR 6MF00513-UP (MACHINE) POWERED BY 3406 ENGINE » 9T-2306 PUMP GP-PISTON
245B SERIES II EXCAVATOR 1SJ00713-UP (MACHINE) POWERED BY 3406 ENGINE » 9T-2306 PUMP GP-PISTON

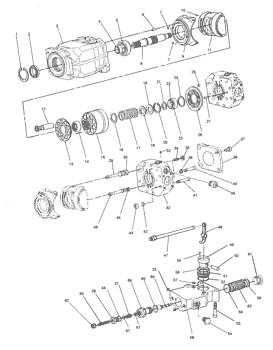

PUMP GP-PISTON

9T2306 PUMP GP-PISTON-SLIPPER
SWING
S/N 6MF68-UP

Information

Pos.	Part No	Qty	Parts name
1.	7X-2439	[1]	RING-RETAINING
2.	7X-1553	[1]	SEAL-LIP TYPE
3.	9T-7738	[1]	HOUSING
4.	9T-8096	[1]	RACE
5.	6V-8797	[1]	CUP-ROLLER BEARING
	6V-8796	[1]	CONE-ROLLER BEARING
6.	6V-7951	[1]	DOWEL
7.	9T-7708	[2]	PLUG
8.	9T-8104	[1]	SHAFT
9.	9T-8105	[1]	SUPPORT
10.	9T-5039	[1]	PLUG
11.	9T-8106	[1]	SWASHPLATE
12.	9T-7731	[9]	PISTON AS
13.	9T-7730	[1]	PLATE AS
14.	9T-7588	[3]	BEARING
15.	9T-7729	[1]	BARREL AS
16.	9T-7714	[1]	SPACER
17.	9T-7728	[1]	SPRING
18.	9T-7716	[1]	SPACER
19.	9T-8112	[1]	SHIM
20.	9T-4906	[1]	RING-RETAINING
21.	9T-8114	[1]	WASHER
22.	6Y-2737	[1]	CUP-ROLLER BEARING
23.	6Y-2736	[1]	CONE-ROLLER BEARING
24.	9T-7732 B	[1]	SHIM (.5MM THK)
	9T-7733 B	[1]	SHIM (.7MM THK)
	9T-7734 B	[1]	SHIM (.8MM THK)
	9T-7735 B	[1]	SHIM (.6MM THK)
25.	9T-7736	[1]	PIN
26.	9T-7727	[1]	PLATE
27.	8T-4231	[1]	DOWEL
28.	9T-7701	[1]	PLUG
29.	9T-7725	[1]	PISTON AS
30.	9T-7724	[1]	RING
31.	9T-7702	[1]	SPRING
32.	9T-8108	[1]	HEAD GP-PUMP
33.	9T-7711 M	[8]	PLUG-PIPE
34.	9X-2403 M	[2]	SETSCREW-HEX SOCKET
35.	9T-7720 M	[2]	NUT
36.	2Y-6458	[1]	GASKET
37.	2H-3855	[4]	BOLT
38.	9T-7719	[1]	COVER
39.	9S-8006	[2]	PLUG-O-RING
	2M-9780	[2]	SEAL-O-RING
40.	8C-8729 M	[1]	BOLT-SOCKET HEAD
41.	7X-2436 M	[8]	BOLT-HEX HEAD
42.	5P-8245	[8]	WASHER
43.	6V-8149 M	[8]	NUT
44.	6V-8399	[1]	SEAL-O-RING
45.	9T-7722	[1]	RING
46.	9T-8442	[1]	PISTON AS
47.	9T-7718	[1]	ROD AS
48.	9T-7717	[1]	LEVER
49.	9T-7715	[1]	SUPPORT
50.	7X-2438	[1]	DOWEL
51.	9T-7713	[1]	BUSHING
52.	8T-9524	[1]	SEAL-O-RING
53.	6V-5193 M	[4]	BOLT-SOCKET HEAD
54.	9S-4191	[1]	PLUG-O-RING
	3J-1907	[1]	SEAL
55.	8T-6628	[1]	DOWEL
56.	4D-5256	[1]	SEAL-O-RING
57.	8T-9528	[1]	SEAL-O-RING
58.	9T-7712	[1]	HOUSING
59.	9T-7709	[2]	RETAINER
60.	9T-7710	[1]	SPRING
61.	9T-9523	[1]	PLUG AS
62.	9T-4817 M	[1]	NUT
63.	9T-7700	[1]	PIN
64.	9T-7706	[1]	STEM
65.	9T-7705	[1]	PIN
	6V-6580	[1]	SEAL-O-RING
66.	9T-7704	[1]	PLUG
67.	9T-7703	[2]	RETAINER
