9R9408 Piston Rear Brake Cylinder Liner 165-6969 Engine 9R-9408 Ring 1656969 Piston
Price:
Price negotiation
MOQ:
1
Delivery Time:
3-5
Brand:
Caterpillar
Product Description
9R9408 PISTON-REAR BRAKE Caterpillar parts 416B, 416C, 416D, 420D, 424D, 426B, 426C, 428B, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D
Product Description
CA9R9408
9R-9408
9R9408
BACKHOE LOADER 416B 416C 416D 420D 424D 426B 426C 428B 428C 428D 430D 432D 436C 438C 438D 442D Caterpillar

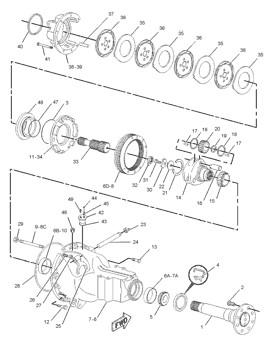

416B Backhoe Loader 8ZK00001-05999 (MACHINE) POWERED BY 3054 Engine
- 118-5834: AXLE GP-REAR » SEBP22020181
AXLE GP-REAR
118-5834 AXLE GP-REAR
S/N 8ZK1-5999
PART OF 9R-7540 AXLE & MTG GP-REAR
AN ATTACHMENT
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 118-5837 | [2] | SHAFT AS | |
| 2. | 9R-5219 | [8] | BOLT-SPECIAL | |
| 3. | 9R-9409 | [2] | SEAL-REAR BRAKE | |
| 4. | 118-5839 | [2] | SEAL-REAR AXLE | |
| 5. | 030-1957 | [2] | CONE-BEARING (TAPERED ROLLER) | |
| 6. | 115-2137 | [1] | HOUSING AS (LH) | |
| 6A. | 6Y-7652 | [1] | CUP-BEARING (TAPERED ROLLER) | |
| 6B. | 8S-9151 | [1] | CUP-BEARING | |
| 6C. | 9R-2412 | [2] | STUD | |
| 6D. | 9R-2414 | [1] | GEAR (56-TEETH) | |
| 7. | 115-2138 | [1] | HOUSING AS | |
| 7A. | 6Y-7652 | [1] | CUP-BEARING (TAPERED ROLLER) | |
| 8. | 9R-2414 | [1] | GEAR (56-TEETH) | |
| 9. | 9R-2412 | [2] | STUD | |
| 10. | 8S-9151 | [1] | CUP-BEARING | |
| 11. | 9R-9406 | [1] | HOUSING-REAR BRAKE (LH) | |
| 12. | 9X-8880 | [25] | BOLT (5/8-11X2-IN) | |
| 13. | 1A-8537 | [1] | BOLT (5/8-11X2.75-IN) | |
| 14. | 186-4117 | [2] | CARRIER AS | |
| (EACH INCLUDES) | ||||
| 15. | 7T-6652 | [1] | CONE-BEARING (TAPERED ROLLER) | |
| 16. | 9R-2421 | [3] | SHAFT | |
| 17. | 9R-2419 | [3] | KIT-BEARING | |
| 18. | 9R-2418 | [6] | WASHER (32.94X57.21X0.78-MM THK) | |
| 19. | 9R-2417 | [3] | WASHER (33.07X48.38X1.06-MM THK) | |
| 20. | 186-4118 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 21. | 9R-2420 | [1] | RETAINER | |
| 22. | 9R-2435 B | [2] | SPACER (22.86X53.85X1.25-MM THK) | |
| 9R-2436 B | [2] | SPACER (22.86X53.85X1.35-MM THK) | ||
| 9R-2437 B | [2] | SPACER (22.86X53.85X1.45-MM THK) | ||
| 9R-2438 B | [2] | SPACER (22.86X53.85X1.55-MM THK) | ||
| 9R-2439 B | [2] | SPACER (22.86X53.85X1.65-MM THK) | ||
| 9R-2440 B | [2] | SPACER (22.86X53.85X1.75-MM THK) | ||
| 9R-2441 B | [2] | SPACER (22.86X53.85X1.85-MM THK) | ||
| 9R-2442 B | [2] | SPACER (22.86X53.85X1.96-MM THK) | ||
| 9R-2443 B | [2] | SPACER (22.86X53.85X2.06-MM THK) | ||
| 9R-2444 B | [2] | SPACER (22.86X53.85X2.16-MM THK) | ||
| 9R-2445 B | [2] | SPACER (22.86X53.85X2.26-MM THK) | ||
| 23. | 9R-2505 | [1] | SEAL | |
| 24. | 9R-2504 | [1] | SHAFT | |
| 25. | 9R-2506 | [1] | FORK | |
| 26. | 9R-2507 M | [1] | SCREW-SPECIAL | |
| 27. | 2L-6267 | [1] | LOCKNUT (3/8-24-THD) | |
| 28. | 9R-2495 | [2] | SEAL | |
| 29. | 8M-3171 | [4] | NUT (1/2-20-THD) | |
| 30. | 9R-2425 | [2] | WASHER (23.088X69.6X9.52-MM THK) | |
| 31. | 9R-2466 M | [2] | BOLT (7/8-14X2.2-IN) | |
| 32. | 9R-2426 | [2] | LOCK | |
| 33. | 9R-2424 | [2] | GEAR (16-TEETH) | |
| 34. | 9R-9405 | [1] | HOUSING-REAR BRAKE (RH) | |
| 35. | 9R-9401 | [8] | PLATE | |
| 36. | 133-7234 | [8] | DISC-FRICTION | |
| 37. | 9R-2474 | [2] | PIN | |
| 38. | 055-1258 | [1] | HOUSING-BRAKE (RH) | |
| 39. | 055-1259 | [1] | HOUSING-BRAKE | |
| 40. | 9R-2427 B | [1] | SHIM (0.965-MM THK) | |
| 9R-2428 B | [1] | SHIM (1.118-MM THK) | ||
| 9R-2429 B | [1] | SHIM (1.27-MM THK) | ||
| 9R-2430 B | [1] | SHIM (1.422-MM THK) | ||
| 9R-2431 B | [1] | SHIM (1.575-MM THK) | ||
| 9R-2432 B | [1] | SHIM (1.727-MM THK) | ||
| 9R-2433 B | [1] | SHIM (1.88-MM THK) | ||
| 9R-2434 B | [1] | SHIM (2.032-MM THK) | ||
| 41. | 2B-2006 | [12] | BOLT (1/2-13X4.75-IN) | |
| 42. | 9R-9398 | [2] | MANIFOLD-BRAKE TUBE | |
| 43. | 8H-1607 | [2] | SEAL-O-RING | |
| 44. | 5L-9018 | [4] | BOLT-SOCKET HEAD (1/4-20X1.75-IN) | |
| 45. | 8M-8157 | [4] | SEAL-O-RING | |
| 46. | 8T-6760 | [2] | PLUG-PIPE (1-1/2-11-1/2 NPT) | |
| 47. | 9R-9410 | [2] | SEAL-REAR BRAKE | |
| 48. | 9R-9408 | [2] | PISTON-REAR BRAKE | |
| 49. | 9F-2167 | [2] | SCREW-PURGE (3/8-24X1.164-IN) | |
| 50. | 9R-2493 | [1] | RING | |
| 51. | 9R-2492 | [1] | WASHER (64.389X78.74X3.124-MM THK) | |
| 52. | 9R-2482 | [1] | COUPLING | |
| 53. | 9R-2486 | [1] | SPRING | |
| 54. | 9R-2483 | [1] | ADAPTER | |
| 55. | 2S-0480 | [1] | CUP-TAPERED ROLLER | |
| 56. | 2S-0479 | [1] | CONE-BEARING (TAPERED ROLLER) | |
| 57. | 9R-2485 | [8] | BOLT (1/2-13X2.87-IN) | |
| 58. | 9R-2480 | [1] | CASE AS | |
| 59. | 9R-2484 | [2] | BUSHING-TERMINAL | |
| 60. | 9R-2490 | [2] | WASHER (76.2X101.6X1.524-MM THK) | |
| 61. | 9R-2488 | [1] | GEAR (16-TEETH) | |
| 62. | 9R-2491 | [1] | SPIDER | |
| 63. | 9R-9403 | [4] | PINION | |
| 64. | 9R-2489 | [4] | WASHER-SPRING | |
| 65. | 9R-2487 | [1] | GEAR (16-TEETH) | |
| 66. | 9R-9444 | [1] | GEAR SET-REAR AXLE | |
| 67. | 5L-9656 | [1] | CONE-BEARING (TAPERED ROLLER) | |
| 68. | 2A-4576 | [1] | CUP-BEARING (TAPERED ROLLER) | |
| 69. | 9R-2446 B | [1] | SPACER (45.86X50.98X31.858-MM THK) | |
| 9R-2447 B | [1] | SPACER (45.86X50.98X31.908-MM THK) | ||
| 9R-2448 B | [1] | SPACER (45.86X50.98X31.959-MM THK) | ||
| 9R-2449 B | [1] | SPACER (45.86X50.98X32.01-MM THK) | ||
| 9R-2450 B | [1] | SPACER (45.86X50.98X32.061-MM THK) | ||
| 9R-2451 B | [1] | SPACER (45.86X50.98X32.112-MM THK) | ||
| 9R-2452 B | [1] | SPACER (45.86X50.98X32.162-MM THK) | ||
| 9R-2453 B | [1] | SPACER (45.86X50.98X32.213-MM THK) | ||
| 9R-2454 B | [1] | SPACER (45.86X50.98X32.264-MM THK) | ||
| 9R-2455 B | [1] | SPACER (45.86X50.98X32.315-MM THK) | ||
| 9R-2456 B | [1] | SPACER (45.86X50.98X32.366-MM THK) | ||
| 9R-2457 B | [1] | SPACER (45.86X50.98X32.416-MM THK) | ||
| 9R-2458 B | [1] | SPACER (45.86X50.98X32.467-MM THK) | ||
| 9R-2459 B | [1] | SPACER (45.86X50.98X32.518-MM THK) | ||
| 9R-2460 B | [1] | SPACER (45.86X50.98X32.569-MM THK) | ||
| 70. | 9R-6671 M | [12] | BOLT (1/2-20X1.62-IN) | |
| 71. | 0T-0318 | [2] | BOLT (7/16-14X1-IN) | |
| 72. | 9R-2502 | [1] | NUT (1-1/4-18-THD) | |
| 73. | 9R-2503 | [1] | BLOCK | |
| 74. | 2M-2570 | [12] | LOCKNUT (1/2-20-THD) | |
| 75. | 9R-6602 | [2] | PLUG-MAGNETIC | |
| 76. | 9R-2508 | [1] | HOUSING | |
| 77. | 3B-5302 | [1] | PIN-COTTER | |
| 78. | 9R-2494 | [1] | RING | |
| 79. | 7T-7621 | [1] | BEARING AS | |
| 80. | 7T-6654 | [1] | CONE-BEARING (TAPERED ROLLER) | |
| 81. | 9R-2512 | [1] | SEAL | |
| 82. | 9R-2407 | [1] | RETAINER AS | |
| 83. | 4K-5843 | [1] | CUP-BEARING (TAPERED ROLLER) | |
| 84. | 3N-6408 | [1] | CUP-BEARING (TAPERED ROLLER) | |
| 85. | 3B-4509 | [6] | LOCKWASHER | |
| 86. | 3K-3379 | [6] | BOLT (9/16-12X1-IN) | |
| 87. | 7T-6653 | [1] | CONE-BEARING (TAPERED ROLLER) | |
| 88. | 9R-2496 | [1] | SEAL | |
| 89. | 9R-2499 | [1] | SEAL AS | |
| 90. | 9R-2498 | [1] | RETAINER | |
| 91. | 9R-6610 | [1] | FLANGE | |
| 92. | 9R-2497 | [1] | SEAL | |
| 93. | 9R-2501 | [1] | WASHER (32.5X60.5X5.6-MM THK) | |
OEM
| 1308412 Piston | Engine | 130-8412 | Ring | 7E5214 Ring Group Piston | Cylinder Liner | 7E-5214 |
| 1589064 Piston | Engine | 158-9064 | Ring | 7N9805 Pin Hollow Piston | Cylinder Liner | 7N-9805 |
| 1590308 Piston | Engine | 159-0308 | Ring | 8J6730 Pump Group Piston | Cylinder Liner | 8J-6730 |
| 1606600 Piston | Engine | 160-6600 | Ring | 8N0822 Ring Group Piston | Cylinder Liner | 8N-0822 |
| 1607994 Body A | Engine | 160-7994 | Ring | 9R9408 Piston Rear Brake | Cylinder Liner | 9R-9408 |
| 1656969 Piston | Engine | 165-6969 | Ring | 9R9408 Piston Rear Brake | Cylinder Liner | 9R-9408 |
| 1684531 Body A | Engine | 168-4531 | Ring | 9T2306 Pump Group Piston | Cylinder Liner | 9T-2306 |
| 1684538 Tube A | Engine | 168-4538 | Ring | 9T2306 Pump Group Piston | Cylinder Liner | 9T-2306 |
| 1692969 Piston | Engine | 169-2969 | Ring | 9T3680 Pump Group Piston | Cylinder Liner | 9T-3680 |
| 1722353 Piston | Engine | 172-2353 | Ring | 9T3680 Pump Group Piston | Cylinder Liner | 9T-3680 |
| 1769273 Piston | Engine | 176-9273 | Ring | 9T6857 Pump Group Piston | Cylinder Liner | 9T-6857 |
| 1786546 Piston | Engine | 178-6546 | Ring | 9T6857 Pump Group Piston | Cylinder Liner | 9T-6857 |
| 1850232 Piston | Engine | 185-0232 | Ring | 9T8346 Pump Group Piston | Cylinder Liner | 9T-8346 |
