Product Description

1195013 PUMP GP-PISTON Caterpillar parts 14G, 16G PUMP

Product Description
CA1195013
119-5013
1195013

MOTOR GRADER 14G 16G Caterpillar

Caterpillar SIS

14G Motor Grader 96U07046-UP (MACHINE) POWERED BY 3306 Engine » 119-5013 PUMP GP-PISTON
16G Motor Grader 93U02679-UP (MACHINE) POWERED BY 3406 Engine » 119-5013 PUMP GP-PISTON

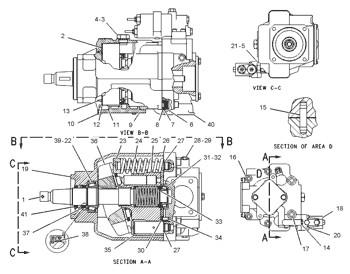

PUMP GP-PISTON

119-5013 PUMP GP-PISTON
S/N 96U7046-99999
SLIPPER

Information

Pos.	Part No	Qty	Parts name
1.	103-5690	[1]	SHAFT-PUMP
2.	6E-4237	[1]	BEARING
3.	6E-4224	[1]	PLUG-SWASHPLATE
4.	033-6036	[1]	SEAL-O-RING
5.	9S-4183	[1]	PLUG (1-1/16-12-THD)
6.	9T-1699	[1]	SPRING
7.	9T-1710	[1]	POPPET
8.	9T-1636	[1]	SEAT
9.	6E-4227	[1]	COVER
10.	6V-8837 M	[3]	BOLT (M6X1X16-MM)
11.	4F-4097	[1]	SEAL-O-RING
12.	6E-4236	[1]	BEARING
13.	3E-4302 M	[2]	SCREW-FLAT HEAD (M4X0.7X10-MM)
14.	8T-5039	[3]	SEAL-O-RING
15.	095-0888	[2]	PIN-SPRING
16.	095-0673 M	[4]	BOLT-SOCKET HEAD (M12X1.75X60-MM)
17.	095-0705 M	[2]	BOLT-SOCKET HEAD (M16X2X100-MM)
18.	6E-6044 Y	[1]	VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)
19.	103-5689	[1]	HOUSING-PUMP
20.	6V-8337 M	[4]	BOLT-SOCKET HEAD (M8X1.25X35-MM)
21.	3D-2824	[1]	SEAL-O-RING
22.	7K-8876	[1]	CUP-BEARING
23.	6E-4213	[1]	KIT-BIAS PISTON
24.	6E-4214	[1]	SPRING-BIAS
25.	6E-4216 Y	[1]	ROTATING GP-PUMP (STEERING)
26.	6E-4225	[1]	GASKET
27.	7L-9061	[2]	SEAL-O-RING
28.	3E-7417	[2]	PLUG
29.	8T-7876	[2]	SEAL-O-RING
30.	6E-4234	[1]	PLATE-VALVE
31.	005-0471	[1]	CONE-BEARING
32.	005-0469	[1]	CUP-BEARING
33.	103-6282 B	[1]	SHIM PACK (INCLUDES 17-SHIMS)
34.	9T-1652	[1]	PIN
35.	6E-4215	[1]	KIT-PISTON
			(KIT INCLUDES PACKING, ROD, & PISTON)
36.	6E-4221 Y	[1]	SWASHPLATE GP
37.	6L-8797	[1]	RING-RETAINING
38.	9X-7547	[1]	SEAL-LIP TYPE
39.	7K-8877	[1]	CONE-BEARING
40.	103-5691	[1]	HEAD-PUMP
41.	108-4818	[1]	SHIELD-SEAL
