6E1109 Piston As Engine 6E-1109 Ring 2255437 Piston Assy W/Rings Cylinder Liner 225-5437

Price Negotiable

Price: Price negotiation

MOQ: 1

Delivery Time: 3-5

Brand: Caterpillar

Product Description

6E1109 PISTON AS Caterpillar parts D8N, D8R, D8R II, D8T

Product Description

CA6E1109
6E-1109
6E1109

TRACK-TYPE TRACTOR D8N D8R D8R II D8T Caterpillar

D8N TRACTOR / POWER SHIFT / 5TJ00001-UP (MACHINE) POWERED BY 3406 ENGINE

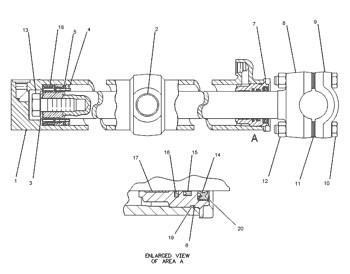

6E-1102: CYLINDER GP-BULLDOZER LIFT » c591636

CYLINDER GP-BULLDOZER LIFT

6E1102 CYLINDER GP-DOZER LIFT (CHGS 02-07)
TYPE 1
114.3 MM (4.5 IN) BORE X 1425 MM (56.1 IN) STROKE
BULLDOZER S/N 6AH1-99999,6LH1-99999,6NH1-99999,9AH1-UP,9BH1-UP,9CH1-UP,5TJ1-UP
PART OF 1013455, 1013456 CYLINDER & LINES
AN ATTACHMENT

Information

Pos.	Part No	Qty	Parts name
1.	6E-1103	[1]	CYLINDER AS
2.	6E-1108	[2]	BEARING-SLEEVE
3.	106-1017	[1]	WASHER
4.	6E-1109	[1]	PISTON AS
5.	9X-7269	[1]	SEAL AS
6.	1K-7095	[1]	RING-BACKUP
7.	6E-1113	[1]	HEAD
8.	6E-1111	[1]	ROD AS
9.	3G-0910	[1]	CAP-BEARING
10.	8T-0671 M	[4]	BOLT
11.	3G-0911 B	[28]	SHIM
12.	7X-0851 M	[4]	NUT
13.	8T-1605 M	[1]	BOLT
14.	8C-5218	[1]	SEAL-LIP TYPE
15.	5J-8300	[1]	SEAL-U-CUP
16.	8C-9126	[1]	SEAL AS
17.	9T-0094	[1]	RING-WEAR
18.	4J-3745	[1]	RING-WEAR
19.	3E-6703	[1]	SEAL-O-RING
20.	7M-2275	[1]	RING-RETAINING

OEM

2W4841 Piston Gp	Engine	2W-4841	Ring	7R6541 Retainer Piston Pin
3145006 Piston A	Engine	314-5006	Ring	8N2275T Bushing Piston Pin
3W8158 Piston As	Engine	3W-8158	Ring	8N8064 Retainer Piston Pin
3W8160 Piston As	Engine	3W-8160	Ring	Rs9Y7212 4 Ring Set Piston
4I6448 Piston As	Engine	4I-6448	Ring	Tak9372 Piston Kit (See T)
4I8834 Piston As	Engine	4I-8834	Ring	10R7727 Piston 3066T/0.25Mm
4P3953 Piston As	Engine	4P-3953	Ring	1290359 Piston Body W/O Pin
4T3272 Piston As	Engine	4T-3272	Ring	1T1426 Piston Lockup Clutch
