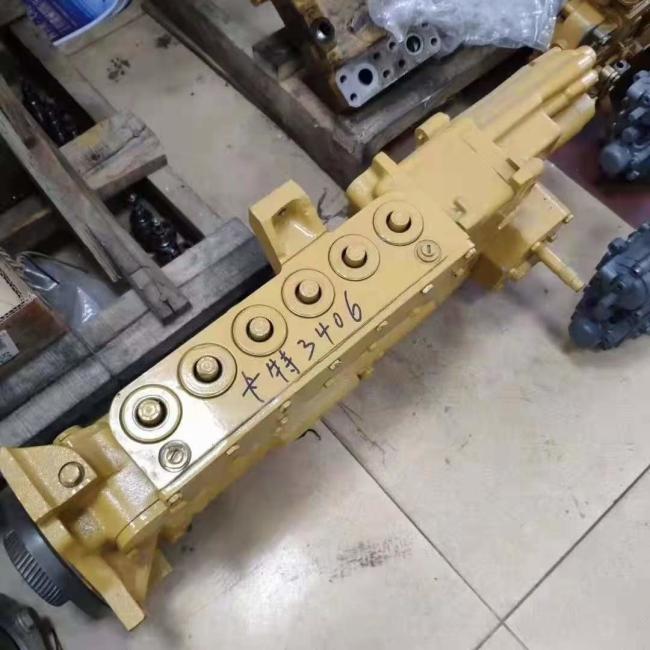

6n4913 Pump Gp-Fuel Injection Caterpillar Parts Excavator Fuel Pump
Price:
Price negotiation
MOQ:
1
Delivery Time:
3-5
Brand:
Caterpillar
Product Description
6N4913 PUMP GP-FUEL INJECTION Caterpillar parts 245, 3406, 621B PUMP
Product Description
CA6N4913
6N-4913
6N4913
EXCAVATOR 245
INDUSTRIAL ENGINE 3406
MARINE ENGINE
TRUCK ENGINE
WHEEL TRACTOR 621B Caterpillar
- 245 EXCAVATOR 94L00001-00254 (MACHINE) POWERED BY 3406 ENGINE » 6N-4913 PUMP GP-FUEL INJECTION
6N4913 FUEL INJECTION PUMP GROUP
Engine Serial No. 70V3506 to 70V3510 & 70V3512-Up
Part of 6N2539 Fuel Pump Housing and Governor Group shown on Page 64A
6N1043 Fuel Injection Pump parts are shown on Page 66
Information
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1M-1077 | [6] | SEAL | |
| 2. | 2M-4314 | [6] | BUSHING | |
| 3. | 8H-9204 | [6] | WASHER | |
| 4. | 6N-1043 Y | [6] | PUMP GROUP | |
| (Separate Illustration) | ||||
| 5. | 9S-4181 | [1] | PLUG | |
| 6. | 7M-8485 | [1] | O-RING | |
| 7. | 2P-8617 | [1] | RACK | |
| 8. | 4N-7354 | [1] | SPACER | |
| 9. | 5M-2697 | [6] | SPACER .1700 in.(4.32 mm) thick | |
| 2M-4208 | [6] | SPACER .1740 in.(4.42 mm) thick | ||
| 2M-4209 | [6] | SPACER .1780 in.(4.52 mm) thick | ||
| 2M-4210 | [6] | SPACER .1820 in.(4.62 mm) thick | ||
| 2M-4211 | [6] | SPACER .1860 in.(4.72 mm) thick | ||
| 2M-4212 | [6] | SPACER .1900 in.(4.83 mm) thick | ||
| 5M-2691 | [6] | SPACER .1940 in.(4.93 mm) thick | ||
| 5S-7189 | [6] | SPACER .1980 in.(5.03 mm) thick | ||
| 10. | 4N-7353 | [1] | PLATE | |
| 11. | 6N-4923 | [1] | PLATE | |
| 12. | 3S-9736 | [6] | LIFTER ASSEM. | |
| 13. | 0S-1618 | [4] | BOLT | |
| 14. | 7F-8036 | [1] | LOCK | |
| 9M-1974 | [2] | WASHER | ||
| 6N-1172 | [2] | SLEEVE | ||
| 15. | 4N-0631 | [1] | GEAR ASSEM. | |
| [1] | GEAR (72 teeth) | |||
| 16. | 4N-2483 | [1] | SPRING | |
| 17. | 4N-4051 | [1] | YOKE | |
| 18. | 6D-9953 | [2] | PIN (spring) | |
| 19. | 4N-0627 | [1] | PIN | |
| 20. | 4N-0818 | [1] | CAMSHAFT ASSEM. | |
| 21. | 9F-7882 | [1] | DOWEL | |
| 22. | 6N-4448 | [1] | HOUSING ASSEM. | |
| 23. | 4B-9782 | [1] | BALL | |
| 24. | 4M-1474 | [3] | PIN | |
| 25. | 9S-4160 | [1] | BEARING | |
| 26. | 5M-6214 | [3] | PLUG | |
| 27. | 1P-0232 | [6] | BALL | |
| 1P-0234 | [6] | DOWEL | ||
| 28. | 1S-7101 | [2] | BEARING | |
| 29. | 9F-2247 C | [1] | PLUG | |
| 30. | 9S-9702 | [2] | DOWEL | |
| 31. | 1S-7103 | [1] | BEARING | |
| 32. | 1S-1953 | [1] | BEARING | |
| 33. | 4B-4158 | [4] | SCREW | |
OME
| 6N2809 | 6N-2809 |
| 6N2793 | 6N-2793 |
| 6N2792 | 6N-2792 |
| 6N2792 | 6N-2603 |
| 6N2790 | 6N-2790 |
| 6N2642 | 6N-2642 |
| 6N2603 | 6N-2460 |
| 6N2460 | 6N-2450 |
| 6N2450 | 6N-2450 |
| 6N2450 | 5R-1615 |
| 6N1813 | 6N-1813 |
| 6N1043 | 6N-1043 |
| 6N1030 | 6N-1030 |
| 6L8963 | 6L-8963 |
| 6L3044 | 6L-3044 |
| 6J7876 | 6J-7876 |
| 6I8480 | 6I-8480 |
| 6I3890 | 6I-3890 |
| 6I2665 | 6I-2665 |
| 6I2358 | 6I-2358 |
