PVC Coated Pressed Spear Top Tubular Steel Ornamental Fence For Protection

PVC Coated Pressed Spear Top Tubular Steel Ornamental Fence Factory In China

PVC coated Pressed Spear Top Tubular Steel Ornamental Fence introdcution

The common size:
(1) Horizontal rail: 32x32x1.2mm(thick.)
(2) Vertical rail: 16x16x1.0mm(thick.)
(3) Spacing:13cm

Australia Standard Welded Tubular Steel Picket Fencing

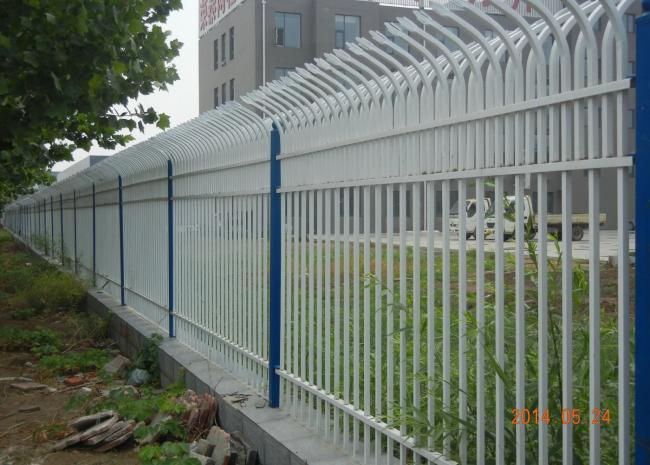

Spear-top picket fences with pressed spears top on the tubular posts
provide the classic outlook, bringing an aesthetically pleasing visual appeal to the residences. Spear-top picket fence railing has decorative rings. Scrolls can be added for an even more ornamental look.

PVC coated Pressed Spear Top Tubular Steel Ornamental Fence detail:

Material: Steel tube, or galvanized steel tube.

Surface: Hot dipped galvanized, Powder coated.

Color: Any RAL colors are available.

Application: Residential and villa fencing; also security of business and industry area, factories and workshops, public buildings, parks, roads.

PVC coated Pressed Spear Top Tubular Steel Ornamental FenceMajor Fencing System Types:

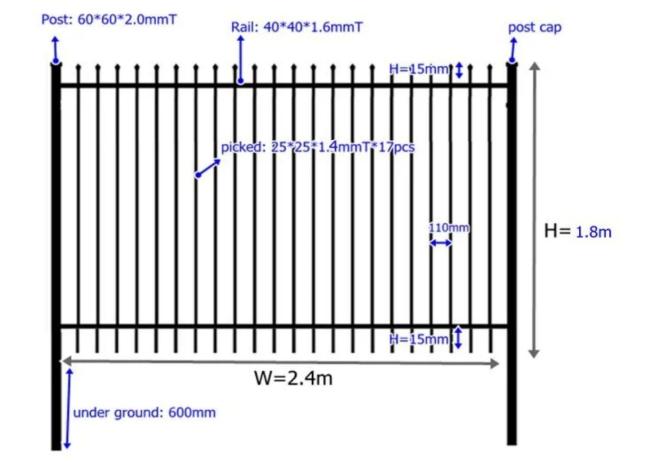

Fence Panel Types	Height	Width	Rail Size	Picket	Post Size	Post Length	Flange Option
	900	1800 2000 2400	32*32*1.0 32*32*1.2	16*16*0.8 16*16*1.0	50*50*1.2 60*60*1.5	1200	120*120*4.0 150*150*5.0
	1200					1500
	1500					1900
	1800					2300
	1500	2400 2750 3000	40*40*1.2 40*40*1.5	19*19*1.0 19*19*1.2	50*50*1.5 60*60*2.0	1900	120*120*4.0 150*150*5.0
	1800					2300
	2100			25*25*1.2 25*25*1.5		2700
	2400					3000
	1800	2400 2750 3000	50*50*2.0 50*50*2.5	25*25*1.5 25*25*2.0	60*60*2.0 80*80*3.0	2300	150*150*5.0 200*200*6.0
	2100					2700
	2400					3000
	2700					3500
