Silver Galfan Wire Gabion Baskets 80mmx100mm Gabion Factory
Price:
USD1.0-2.5/SQUARE METER
MOQ:
1000 square meter
Delivery Time:
10-15DAYS
Brand:
XINGEBIN
Product Description
galfan wire gabion basket,gabion introduction
1)Electric galvanized wire, zinc coated ≥10g/㎡
2)Hot dip galvanized wire
Heavy zinc-coated wire,EN10244-2 Zinc coated ≥240g/㎡
3)Pvc coated wire( Pvc thickness:0.38-0.5mm)
4)Galfan wire,5%Alu+95% zinc,10%Alu+90% zinc
Gabion basket mesh Type: Double twisted hexagonal
Gabion basket mesh size: 5x7cm,6x8cm,8x10cm,8x12cm,10x12cm etc.
Gabion basket size: can be design as per the clients' requirement.
The normal size:2x1x0.5m,3x2x0.23m,4x2x0.23m and so on.
galfan wire gabion basket,gabion detail:
| Gabion basket | |||
| Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
Strands |
| 60X80 | f2.0-2.8 | f2.0/3.0-2.5/3.5 | 3/5 |
| 80X100 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3/5 |
| 80X120 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3/5 |
| 100X120 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3/5 |
| 100X150 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3/5 |
| 120X150 | f2.0-4.0 | f2.0/3.0-3.0/4.0 | 3/5 |

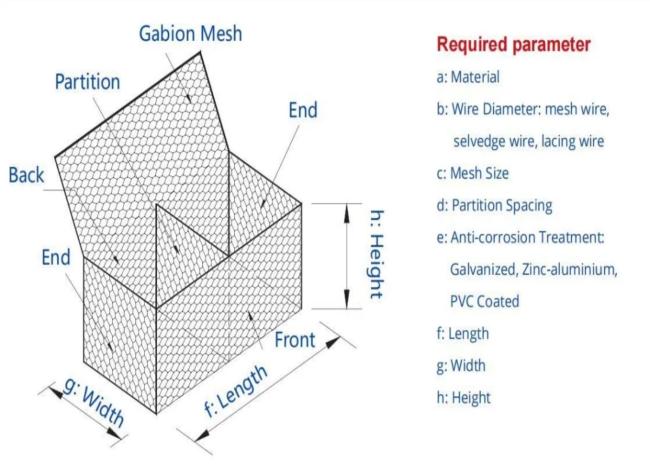

galfan wire gabion basket,gabion drawing:
