Barbed Wire Concertina Coil , Anti Climb Zinc Coated Razor Tape Wire
high quality concertina razor blade tape steel wire,razor tape wire facotry introduction
razor tape wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire and steel pickets, it is used to form military wire obstacles.
During World War I soldiers manufactured concertina wire themselves, using ordinary barbed wire. Today, it is factory-made.
high quality concertina razor blade tape steel wire,razor tape wire facotry feature

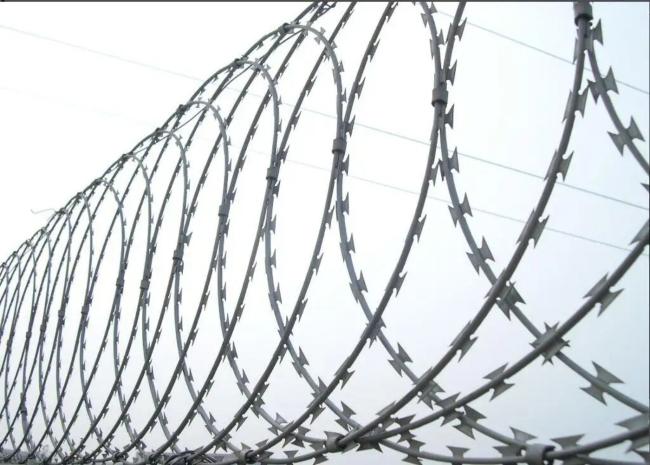

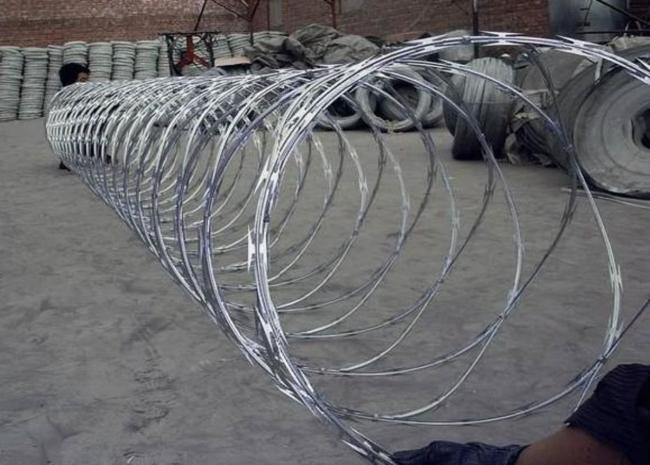

1) Concertina Wire
Concertina Wire is also known as crossed razor barbed wire. Two pieces of stainless steel razor wire or zinc-coated razor wire are bound together by clips to make it stronger.
The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

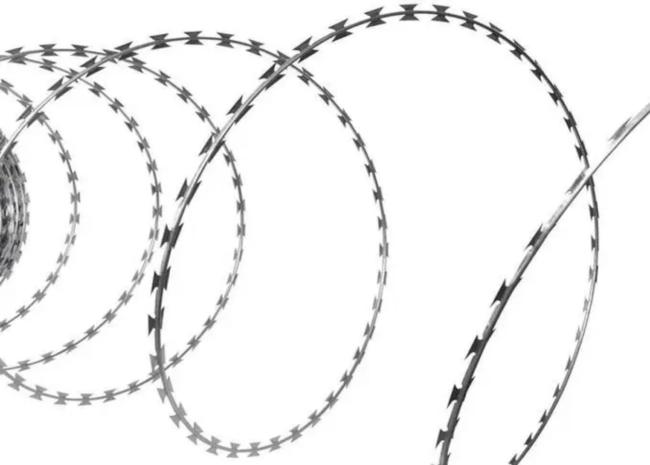

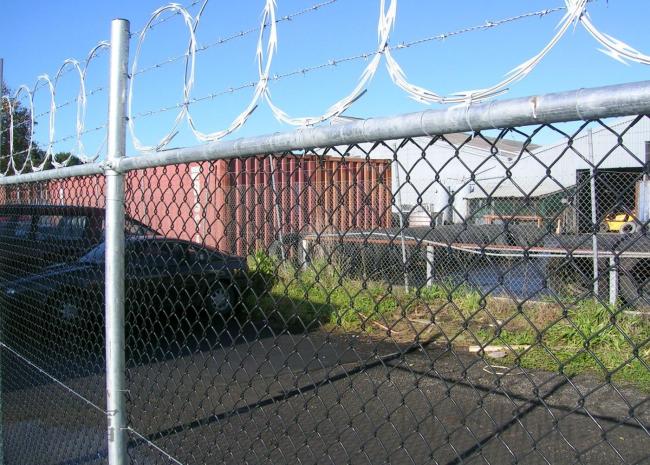

2) Single Coil Razor Wire
Single coil barbed tape wire is installed without clips, it runs in natural loops on walls or fencings. Single coil razor wire is ostless and can be easily installed
3) Razor Flat Fence
Razor flat fence is one of our newly developed razor product (flat wrap).
Common sizes available for razor flat fence:
500mm x 15m
700mm x 15m
900mm x 15m

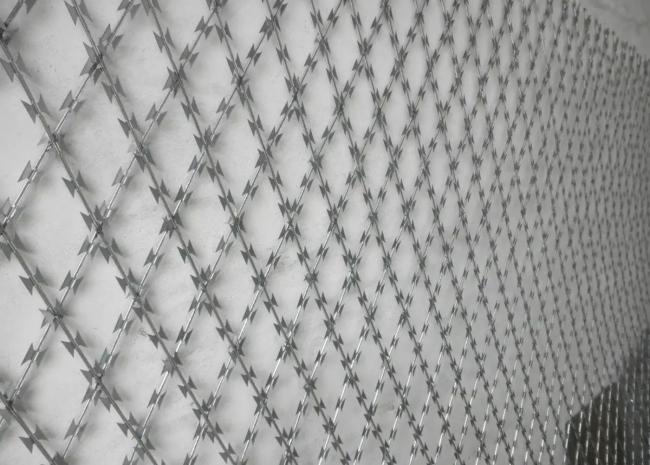

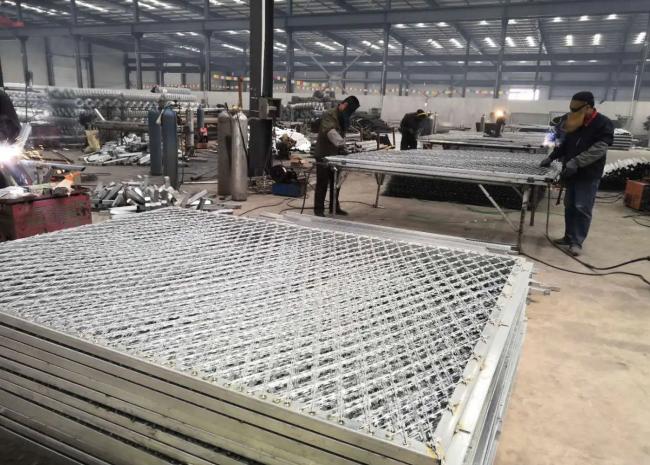

4) Welded Razor Wire Mesh
Welded Razor Wire Mesh Fence is a new form of razor barbed wire for security. With blade, this kind of razor wire fence is very practical and it looks beautiful.
Razor wire mesh fence can be used as guarding fence, for doors and windows. It can also be used in military.
Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request
high quality concertina razor blade tape steel wire,razor tape wire facotry technical sheet
| Blade spec | Blade profile |
Blade thickness mm |
Core wire diameter mm |
Blade length mm |
Blade width mm |
Blade space mm |
|
10
|
|
0.5±0.05
|
2.5±0.1
|
10±1
|
13±1
|
26±1
|
|
12
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
18
|
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
22
|
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
28
|
|
0.5±0.05
|
2.5
|
28
|
15
|
45±1
|
|
30
|
|
0.5±0.05
|
2.5
|
30
|
18
|
45±1
|
|
60
|
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±2
|
|
65
|
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
