Hot dipped galvanized concertina razor wire BTO-22 security fence
Concertina razor wire fence
Concertina Razor Wire
Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.
Concertina razor wire types
Single Coil Razor Wire Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

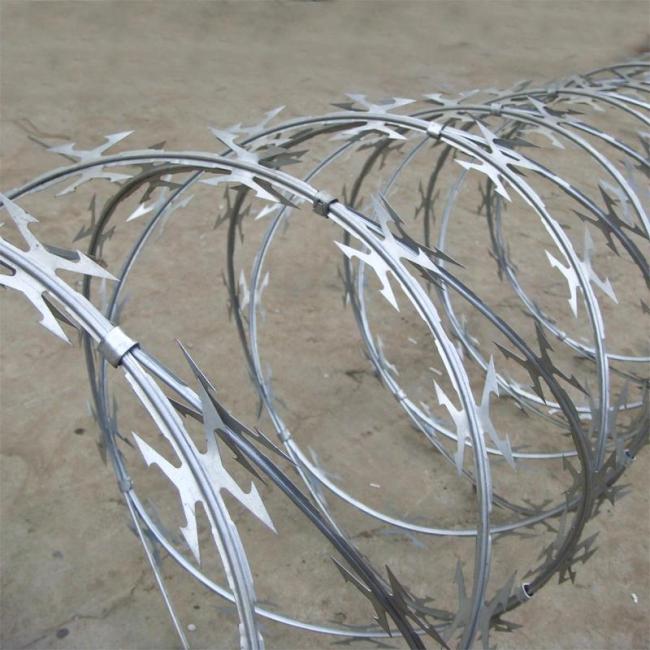

Crossed Razor Wire Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an ntersecting shape after opening with beautiful feature and practicality.
Flat warp razor wire Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.
Razor Wire Fence Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very
| Concertina Wire Coils Specification: | ||||
| Type | Outside Diameter | No. of Loops | Standard Length per Coil | Notes |
| CBT-65 | 450mm | 33 | 8M | Single coil |
| CBT-65 | 500mm | 41 | 10M | Single coil |
| CBT-65 | 700mm | 41 | 10M | Single coil |
| CBT-65 | 960mm | 53 | 13M | Single coil |
| BTO - 10.15.22 | 500mm | 102 | 16M | Cross type |
| BTO - 10.15.22 | 600mm | 86 | 14M | Cross type |
| BTO - 10.15.22 | 700mm | 72 | 12M | Cross type |
| BTO - 10.15.22 | 800mm | 64 | 10M | Cross type |
| BTO - 10.15.22 | 960mm | 52 | 9M | Cross type |
| Outside Diameter | No. of Loops | Standard Length per Coil | Razor Type | Notes |
| 450mm | 33 | 7M-8M | CBT-60, 65 | Single Coil |
| 500mm | 56 | 12M-13M | CBT-60, 65 | Single Coil |
| 700mm | 56 | 13M-14M | CBT-60, 65 | Single Coil |
| 960mm | 56 | 14M-15M | CBT-60, 65 | Single Coil |
| 450mm | 56 | 8M-9M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 500mm | 56 | 9M-10M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 600mm | 56 | 10M-11M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 600mm | 56 | 8M-10M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 700mm | 56 | 10M-12M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 800mm | 56 | 11M-13M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 900mm | 56 | 12M-14M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 960mm | 56 | 13M-15M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 980mm | 56 | 14M-16M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
Concertina razor wire material
Material: high quality galvanized steel sheet and galvanized steel wire, or stainless steel sheet and stainless steel wire.
Accoring to different material,Razor Barbed Wire is divide into:
• Galvanized Razor Barbed Wire(zinc coating 30g/m2,60-100g/m2.200-250g/m2).
• Stainless steel Razor Barbed Wire(AISI 304,AISI 316,AISI 304lL,AISI316L etc).
• PVC coated Razor Barbed Wire.

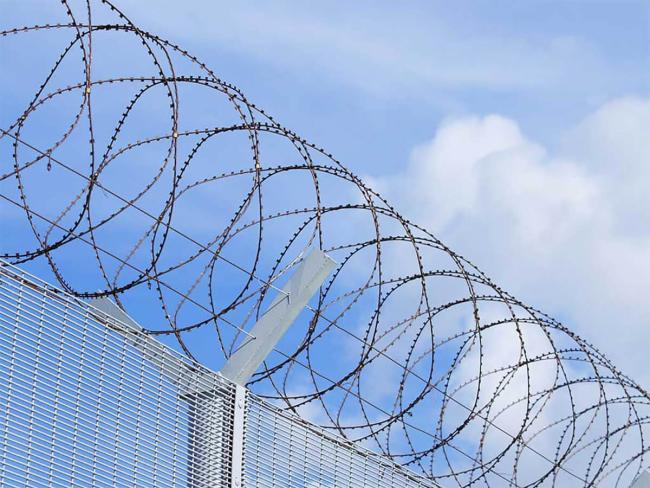

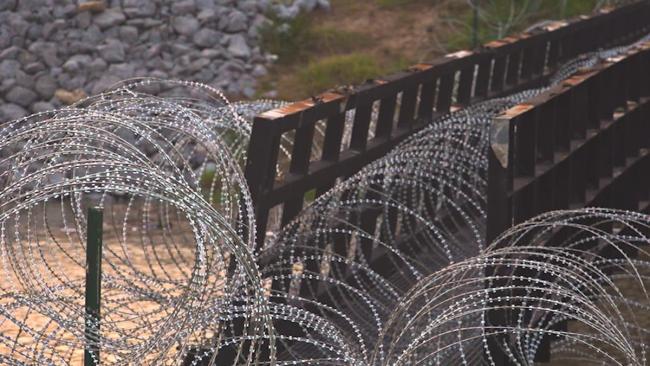

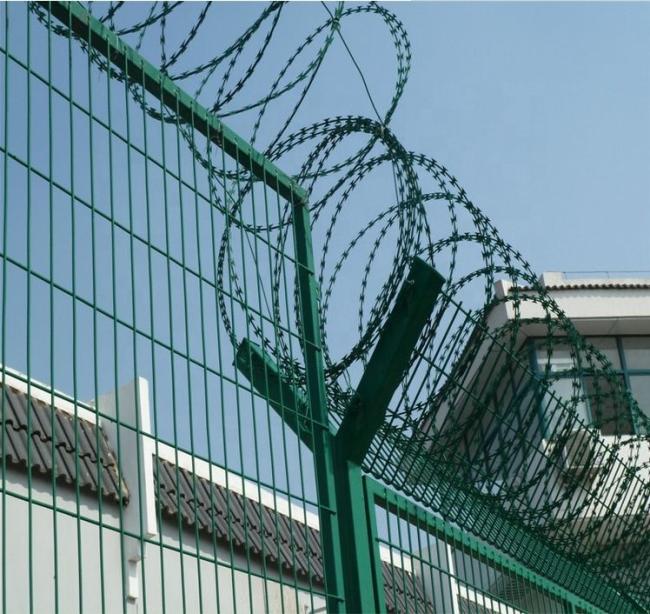

Application of the concertina razor wire:

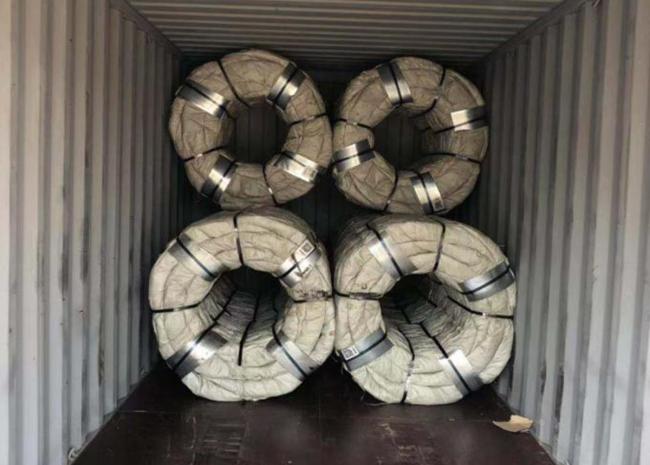

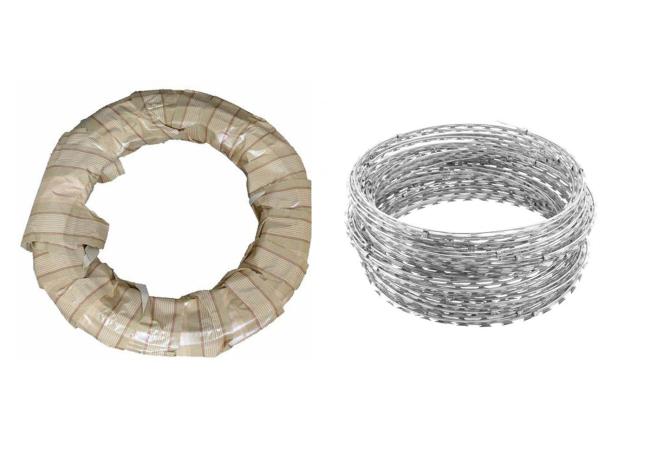

Package of Concertina razor wire:
