Hot dipped galvanized BTO-22 concertina razor wire security fence for border

Price Negotiable
Price: USD3.0-10.2/ROLL
MOQ: 100 roll
Delivery Time: Negotiable
Brand: NEW GABION
Product Description

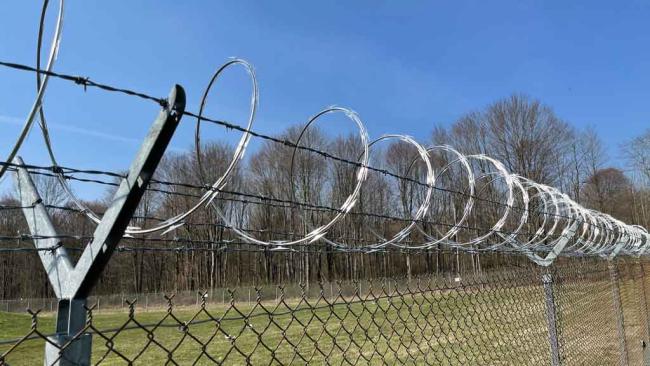

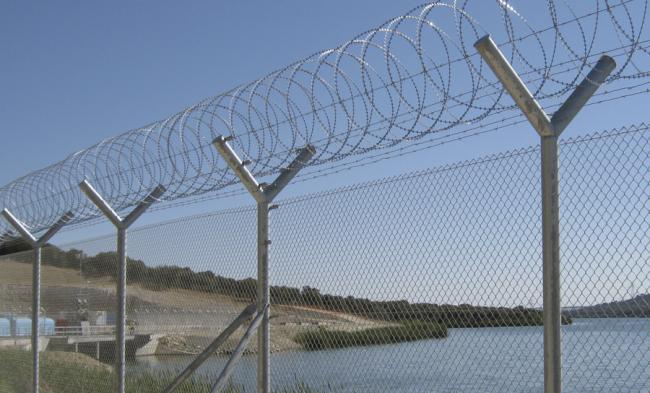

Concertina razor wire fence

Concertina Razor Wire


Concertina razor wire as a greater sense of security option, concertina wire coil is the most defensive barrier for multiple purposes.
The center wire diameter of concertina razor wire is 2.5 mm , around the center wire there is consists of a continuous mild steel strip that is enclosed with sharp blades. All coils are clipped together to obtain a stable and homogeneous network.

The concertina razor wire adds an anti-climb quality to almost all fences.





Concertina razor wire types



Single Coil Razor Wire Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.



Crossed Razor Wire Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an ntersecting shape after opening with beautiful feature and practicality.



Flat warp razor wire Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.



Razor Wire Fence Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very







Concertina Wire Coils Specification:
Type Outside Diameter No. of Loops Standard Length per Coil Notes
CBT-65 450mm 33 8M Single coil
CBT-65 500mm 41 10M Single coil
CBT-65 700mm 41 10M Single coil
CBT-65 960mm 53 13M Single coil
BTO - 10.15.22 500mm 102 16M Cross type
BTO - 10.15.22 600mm 86 14M Cross type
BTO - 10.15.22 700mm 72 12M Cross type
BTO - 10.15.22 800mm 64 10M Cross type
BTO - 10.15.22 960mm 52 9M Cross type



OutsideDiameter No. of Loops Standard Length per Coil Razor Type Notes
450mm 33 7M-8M CBT-60, 65 Single Coil
500mm 56 12M-13M CBT-60, 65 Single Coil
700mm 56 13M-14M CBT-60, 65 Single Coil
960mm 56 14M-15M CBT-60, 65 Single Coil
450mm 56 8M-9M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
500mm 56 9M-10M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 10M-11M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 8M-10M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
700mm 56 10M-12M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
800mm 56 11M-13M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
900mm 56 12M-14M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
960mm 56 13M-15M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
980mm 56 14M-16M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type

Concertina razor wire material



The material of concertina razor wire:

  • Stainless steel 304
  • Stainless steel 316
  • Stainless steel 316L
  • Hot dipped galvanized
  • PVC coated

Application of the concertina razor wire:





Package of Concertina razor wire:
