Q235 Welded Mesh Fencing 4mm Hot Dipped Galvanized 358 Security Wire Mesh Fence
hot dipped galvanized wire 358 security wire mesh fence introduction
1. Material:Q235 low carbon cold drawn steel wire
2. Mesh specification: 76.2mm x 12.7mm welded at each intersection.
3. Horizontal Wires: 4mm diameter at 13mm centres.
4. Vertical Wires: 3.5mm diameter at 75mm centres.
5. Panel finish: Hot dip galanized afer maufacture or power coating afer manufacture.
6. With razor wire on the top fo welded fence

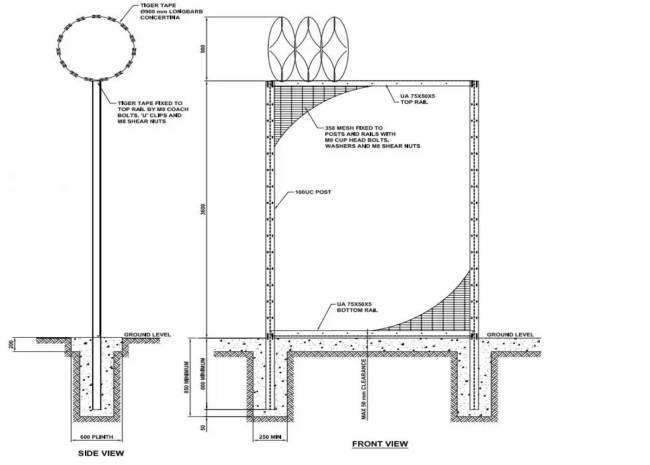

hot dipped galvanized wire 358 security wire mesh fence drawing

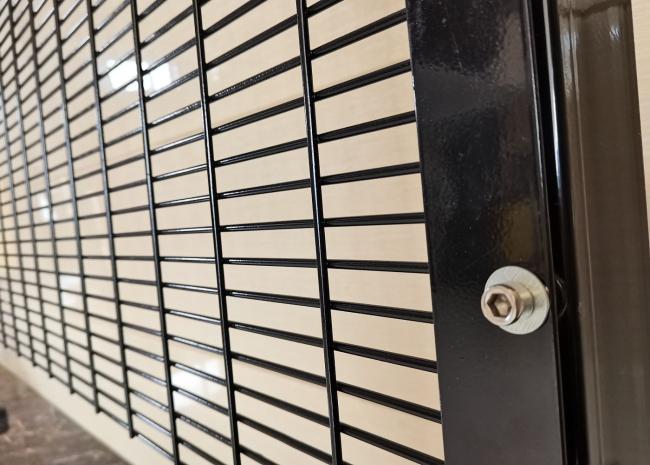

hot dipped galvanized wire 358 security wire mesh fence detail:
| Specification of 358 Anti Climb Anti Cut Fence Panel | ||||
| Mesh | Wire Diameter | Panel Width | Panel Height | Post Type |
|
76.2*12.7mm 75.0*12.5mm 75.0*25mm 75.0*50mm |
Horizontal Wire :3.2/3.5/4mm Vertical Wire :4mm |
1m-3m popular:2.2m/2.5m/3m |
1m-6m popular:2.5m/3m |
Square Post (SHS) 60*60*2.0/2.5/3.0mm 80*80*2.0/2.5/3.0mm Rectangular Post (RHS) 40*60*2.0/2.5/3.0mm 40*80*2.0/2.5/3.0mm 60*80*2.0*2.5*3.0mm
|
|
Surface Treatment :hot dipped galvanized ,galvanized+powder coated V-top :including angle iron, barbed wire ,raror barbed wire Connecting Methods :iorn bar, hexagonal clamp ,sercews Colour:RAL 6005 green, RAL 7016 gray .ALL RAL colour can be custonized Product specifications can be customized according to your needs |
||||
