Gabion Military Hesco Barriers Corrosion Resistance ISO9001 Approved
Hesco Defensive Flood Barrier Welded Gabion With Hot Dipped Galvanized Wire
Hesco defensive barrier for flood

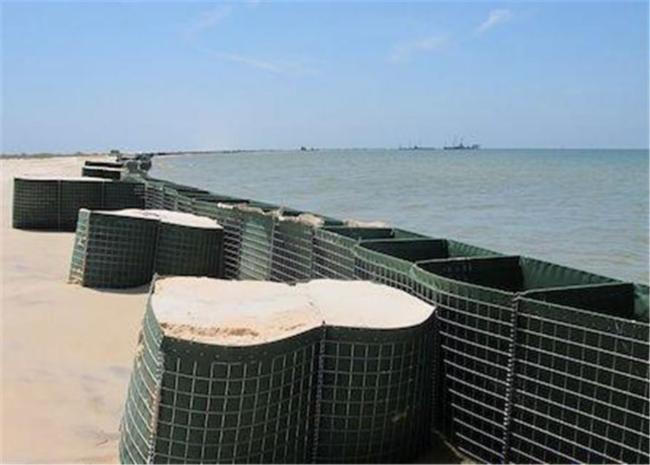

What is Hesco defensive flood barrier ?
Hesco defensive barrier for flood is made of of the hot galvanized wire, the galvanized wire is welded as a gabion, and then the geotextile is lined and sewed together with the gabion.
The Hesco defensive barrier for flood can be used separated and it also can be used together as a barrier, it can be made different length as the requirements.
The advantages of the Hesco flood barrier.

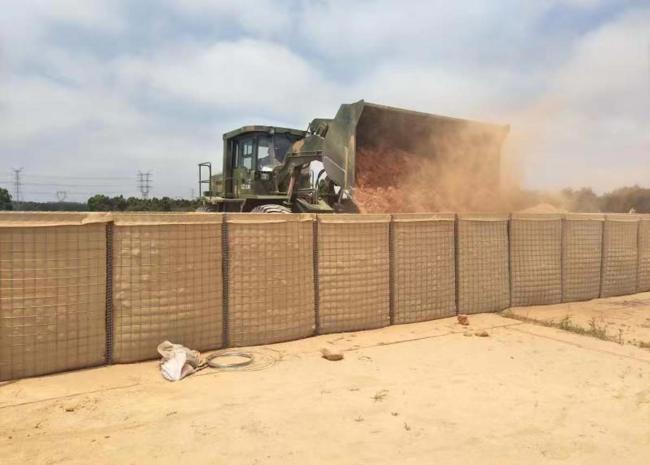

- The structure of the Hesco flood barrier can be developed easily and quickly.
Different from the traditional gabion basket, it can not only load stones, but even finer sands. The filling materials are locally sourced, especially suitable for use in the lower reaches of rivers or seashores where stones are scarce. The Hesco flood barrier will be filled using excavators, forklifts and other tools, the installation efficiency is dozens or even hundreds of times that of traditional sandbags.
- When the defensive flood barrier units are connected and filled, it can resist floods and typhoons, Because the flood barrier is welded by low-carbon steel wire, the tensile force is very strong, the flood barrier wall is very firm.
- Because the surface is hot-dip galvanized, it also has very strong corrosion resistance.
The Production process of Hesco defensive barrier
Material of hot galvanized wire and spring---welded together as a sheet of mesh--connected together as a gabion--lined geotextile in the gabion and sewed together--unloaded and filled
Specification of Hesco barrier gabion.
Customized is acceptable in our factory, we can make the gabion as customer’s requirements, following is the standard gabion size.
Military hesco barrier bastion detail sheet:
Unit |
Height |
Width |
Length |
Mil 10B Mil 10G |
7' (2.12m) |
5' (1.52m) |
95' (03.5m) |
Mil 9B Mil 9G |
3' 3" (1.0m) |
2' 6" (0.76m) |
30' (9.14m) |
Mil 8B Mil 8G |
4' 6" (1.37m) |
2' (1.22m) |
32' (10m) |
Mil 7B Mil 7G |
7' 3" (2.21m) |
7' (2.13m) |
90' (27.74m) |
Mil 6B Mil 6G |
5' 6" (1.68m) |
2' (0.61m) |
10' (3.05m) |
Mil 5B Mil 5G |
2' (0.61m) |
2' (0.61m) |
10' (13.05m) |
Mil 4B Mil 4G |
2' (0.61m) |
5' (1.5m) |
32' (10m) |
Mil 3B Mil 3G |
3' 3" (1.0m) |
3' 3" (1.0m) |
32' (10m) |
Mil 2B Mil 2G |
2' (0.61m) |
2' (0.61m) |
4' (1.21m) |
Mil 1B Mil 1G |
4' 6" (1.37m) |
3' 6" (1.06m) |
32' (10m) |
WIRE DIAMETER: 4.0MM, 4.5MM, 5.0MM
MESH OPENING: 75MMX75MM, 100MMX100MM
WIRE MATERIAL: HOT DIP GALVANIZED WIRE, ZINC-ALUMINUM COATED WIRE
GEOTEXTIL WEIGHT : 300G/M2, 250G/M2
GEOTEXTIL CLOUR: BEIGE, GREEN, WHITE ETC.
Military hesco barrier bastion packing:
Company information:
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
