Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets
Hesco bastion barrier basket
What is Hesco bastion barrier basket ?

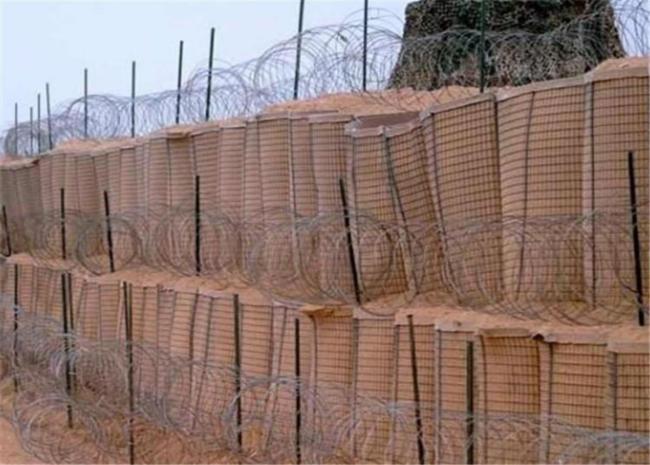

Hesco bastion barrier basket is also called hesco defensive barrier basket, which can be used as an important defense product in military exercises and wars. When used, stones, sand or soil are loaded into the cage to form a solid protective wall.
Because it is easy to install,it is widely used in modern Wars!
The production process of Hesco bastion barrier basket.
The Hesco defensive barrier is made of hot dipped galvanized wire, first the galvanized wire is welded as a sheet of mesh, with different holes.
Second put the geotextile in the gabion and sew the together with the gabion, the Hesco defensive barrier is finished.
Third, when the defensive barrier basket is complete, it will be folded and packed.
Forth, put the defensive barrier basket on the ground, unfolded and connect with the pin as requirements, to make the wall with different length.
Fifth, the defensive barrier is filled with stone and sand.
The advantages of Hesco defensive barrier:
1. It is easy to delivery, because the Hesco defensive barrier basket can be fold, it is easy to pack and delivery to save the freight.
2. It is easy to install, there will be two person to install the Hesco defensive barrier basket, to unfold and connect the basket easily.
3. To protection the environment, the Hesco defensive barrier basket can be reused.
Specification of Hesco barrier gabion.
Customized is acceptable in our factory, we can make the gabion as customer’s requirements, following is the standard gabion size.
Military hesco barrier bastion detail sheet:
Unit |
Height |
Width |
Length |
Mil 10B Mil 10G |
7' (2.12m) |
5' (1.52m) |
95' (03.5m) |
Mil 9B Mil 9G |
3' 3" (1.0m) |
2' 6" (0.76m) |
30' (9.14m) |
Mil 8B Mil 8G |
4' 6" (1.37m) |
2' (1.22m) |
32' (10m) |
Mil 7B Mil 7G |
7' 3" (2.21m) |
7' (2.13m) |
90' (27.74m) |
Mil 6B Mil 6G |
5' 6" (1.68m) |
2' (0.61m) |
10' (3.05m) |
Mil 5B Mil 5G |
2' (0.61m) |
2' (0.61m) |
10' (13.05m) |
Mil 4B Mil 4G |
2' (0.61m) |
5' (1.5m) |
32' (10m) |
Mil 3B Mil 3G |
3' 3" (1.0m) |
3' 3" (1.0m) |
32' (10m) |
Mil 2B Mil 2G |
2' (0.61m) |
2' (0.61m) |
4' (1.21m) |
Mil 1B Mil 1G |
4' 6" (1.37m) |
3' 6" (1.06m) |
32' (10m) |
WIRE DIAMETER: 4.0MM, 4.5MM, 5.0MM
MESH OPENING: 75MMX75MM, 100MMX100MM
WIRE MATERIAL: HOT DIP GALVANIZED WIRE, ZINC-ALUMINUM COATED WIRE
GEOTEXTIL WEIGHT : 300G/M2, 250G/M2
GEOTEXTIL CLOUR: BEIGE, GREEN, WHITE ETC.
Military hesco barrier bastion packing:
Company information:
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
