Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile

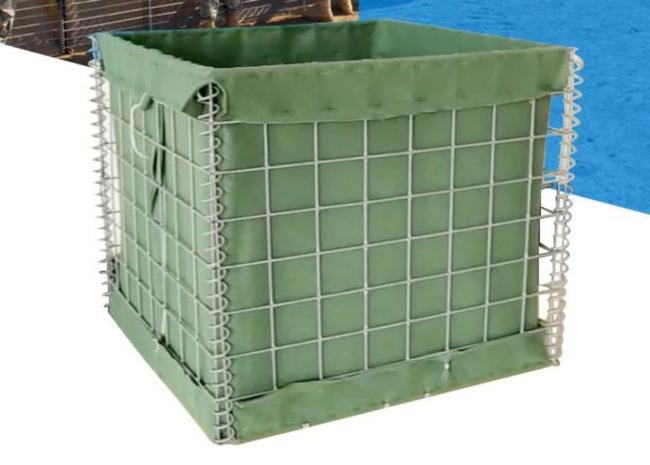

Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile Introduction
Hesco barrier, also know as Hesco bastion barrier,Hesco basket wall, defensive wall, welded gabion, sand cage and stone box ect.
Hesco barrier is for military and flood protection, it made of a welded gabion and lined high duty geotextile, the size of the welded gabion can be customized, and the geotextile with UV resistant treatment, min class 3 or equivalent, the color is military green or military yellow.
The Hesco barrier basket can be used separated, and it can be connect with pin to make a wall, the different length of the wall according to the requirements.
The advantages of Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile

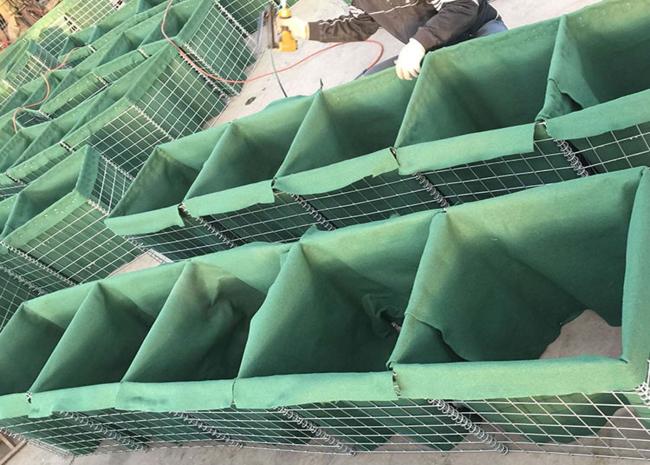

1. Easy to handle and install, the Hesco barrier can be installed two person easily, only to put the Hesco barrier on the earth and unfolded it, if necessary connect one by one with the pin.
2. High strength and impact resistance, the material is low-carbon steel wire, welded together.
3. Long service life and normal use, the surface treatment is hot dipped galvanized.
4. It can be filled with sand, cement, stone and soil, It can be manually or mechanically, such as excavators, it will be quickly to make a Hesco defensive barrier wall.
Specification of Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile
Customized is acceptable in our factory, we can make the gabion as customer’s requirements, following is the standard gabion size.
Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile sheet:
Unit |
Height |
Width |
Length |
Mil 10B Mil 10G |
7' (2.12m) |
5' (1.52m) |
95' (03.5m) |
Mil 9B Mil 9G |
3' 3" (1.0m) |
2' 6" (0.76m) |
30' (9.14m) |
Mil 8B Mil 8G |
4' 6" (1.37m) |
2' (1.22m) |
32' (10m) |
Mil 7B Mil 7G |
7' 3" (2.21m) |
7' (2.13m) |
90' (27.74m) |
Mil 6B Mil 6G |
5' 6" (1.68m) |
2' (0.61m) |
10' (3.05m) |
Mil 5B Mil 5G |
2' (0.61m) |
2' (0.61m) |
10' (13.05m) |
Mil 4B Mil 4G |
2' (0.61m) |
5' (1.5m) |
32' (10m) |
Mil 3B Mil 3G |
3' 3" (1.0m) |
3' 3" (1.0m) |
32' (10m) |
Mil 2B Mil 2G |
2' (0.61m) |
2' (0.61m) |
4' (1.21m) |
Mil 1B Mil 1G |
4' 6" (1.37m) |
3' 6" (1.06m) |
32' (10m) |
WIRE DIAMETER: 4.0MM, 4.5MM, 5.0MM
MESH OPENING: 75MMX75MM, 100MMX100MM
WIRE MATERIAL: HOT DIP GALVANIZED WIRE, ZINC-ALUMINUM COATED WIRE
GEOTEXTIL WEIGHT : 300G/M2, 250G/M2
GEOTEXTIL CLOUR: BEIGE, GREEN, WHITE ETC.
Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile packing:
