304 Stainless Steel Floor Grating Anti Corrosion Steel Flat Bar Grating Drain Grill
Stainless Steel Floor Grating Drain Grill For Floor Grating,Drain , Trench And Ship With Material Of SS 304 & Hot

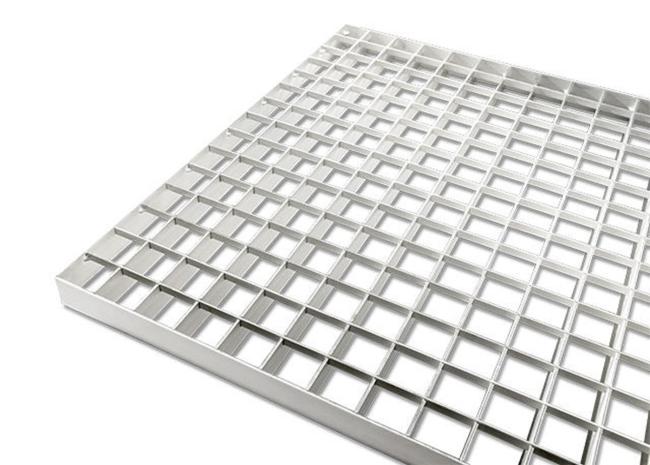

Stainless steel floor grating introduction
The cost of stainless steel floor grating is much higher than that of conventional galvanized steel grating. It is generally used in food factories, kitchen drainage, pharmaceutical factories and other areas with high anti-corrosion requirements.
Stainless steel floor grating is a steel grating made of stainless steel.
Its production process is similar to that of hot-dip galvanized steel grating, except that it does not need anti-corrosion treatment such as painting or hot-dip galvanization, but needs surface polishing treatment to remove welding slag or scar left during spot welding.
Application of Stainless steel floor grating
The price of stainless steel floor grating is higher than that of other materials, but it is also widely used.
It is generally used in environments with strict anti-corrosion requirements, such as power plants, chemical plants, oil refineries, steel plants, machinery manufacturing plants, shipyards, paper mills, cement plants, medicine, food processing plants and bridge projects, municipal engineering projects, sewage treatment, etc
Advantage of the stainless steel floor grating
- Material saving: stainless steel has good load-bearing effect and can reduce the material of supporting structure accordingly.
- Simple construction: the pre installed support is clamped with bolts or fixed with steel grating installation clamps, and one person can complete the work.
- Saving construction period: stainless steel floor grating does not need to be reprocessed on site, and the installation is very fast.
- Durable: the stainless steel floor grating is treated with acid or polishing before leaving the factory. It has strong impact resistance and heavy pressure resistance.
- Beautiful appearance: design specification of stainless steel grating, ventilation and light transmission.
- Light structure: stainless steel floor grating has less materials, light structure and convenient on-site construction.
- Convenient care: the hole structure of the steel grating makes the steel grating not accumulate rain, snow and dust, and also has anti-skid effect
Stainless steel bar grating drawing
Stainless steel bar grating fastener
Specification of the stainles steel bar grating
| Product Name | steel grating,walkway steel grating,building materials steel bar grating,galvanized steel grid |
| Material Standard | Stainless steel |
| Bearing Bar (width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; |
| I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc | |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment | pickling |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing | packed on the pallets,Other special package :according to customers' requirements. |
| Remarks: Other sizes also can be customized according to customers’ requirement. | |
Hot dipped galvanized steel floor grating welding machine
Package of the stainless steel floor grating
