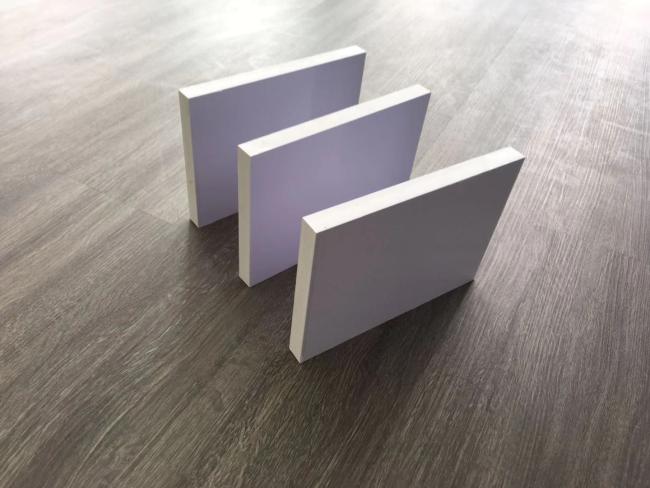

Anti Aging 18mm PVC Board , ISO9001 PVC Furniture Board
Furniture PVC Foam Board, Lead Free Foam PVC, Co-Extrusion , Glossy,5/7“, 0.5, White
Lead free PVC foam board are widely used to replace wood for furniturer manufacturer. With characteristic of fire retardant, water proof, light weight, straight hard and strong screw holding force, 18mm foam PVC co-extrusion sheets are made for kitchen cabinet, bathroom cabinet, cupboard, wadrobe, storage and lockers,etc.
| Density | size (mm) | thickness(mm) | Size(ft) | thickness(in) | weight(kg) |
| 0.5 | 1220x2440 | 18 | 4x8 | 5/7" | 26.8 |
QA Standard ( Physical Data )
| Test Item | Standard | ||||||
| A | B | C | |||||
| 1 | Density/(g/cm3) | ρ≤ 0.5 | 0.5＜ρ≤0.65 | ρ＞0.65 | |||
| 2 | Shore Durometer (D) | ≥50a | ≥55 | ≥70 | |||
| 3 | Vicat Softening/℃ | ≥60 | ≥70 | ≥70 | |||
| 4 | Heated Size Difference/% | ±2 | ±2 | ±2 | |||
| 5 | Water Absorbance/% | ≤4 | ≤2 | ≤1 | |||
| 6 | Screw Holding Force/N | － | ≥600 | ≥800 | |||
| 7 | Tensile Strength/MPa | Latitude | ≥6 | ≥8 | ≥15 | ||
| Horizontal | ≥4 | ≥6 | ≥12 | ||||
| 8 | Tensile Strain/% | Latitude | ≥5 | ≥8 | ≥10 | ||
| Horizontal | ≥4 | ≥6 | ≥8 | ||||
| 9 | Charpy Impact Strength/(kJ/m ²) | Latitude | ≥8 | ≥12 | ≥15 | ||
| Horizontal | ≥6 | ≥10 | ≥12 | ||||
| 10 | Bending Strength/MPa | Latitude | ≥10 | ≥15 | ≥20 | ||
| Horizontal | ≥6 | ≥10 | ≥15 | ||||
| 11 | Flexural modulus of elasticity /MPa | Latitude | ≥600 | ≥800 | ≥1000 | ||
| Horizontal | ≥400 | ≥600 | ≥800 | ||||
| A type with thickness ≥5mm requires Shore D≥50,Thickness＜5mm, No shore D test is required. | |||||||
PVC foam board is a new type of green environmental protection material using plastic instead of wood and steel. It is widely used
by furniture manufacture for making kitchen and bathroom cabinets, lockers, storage, etc. There are many advantages:
* cost effective,
* light-weight, durable and anti-aging,
* moisture resistance,
* fire retardance, heat preservation.
* sound insulation, sound absorption,
* strong ability, can be sawed, planed, drilled, nailed, screwed and glued as wood and steel,
* thermal bonding and plastic welding that wood does not have,
* beautiful and fashionable decorative.
Why choose us ?
* BT is a famous brand in China.

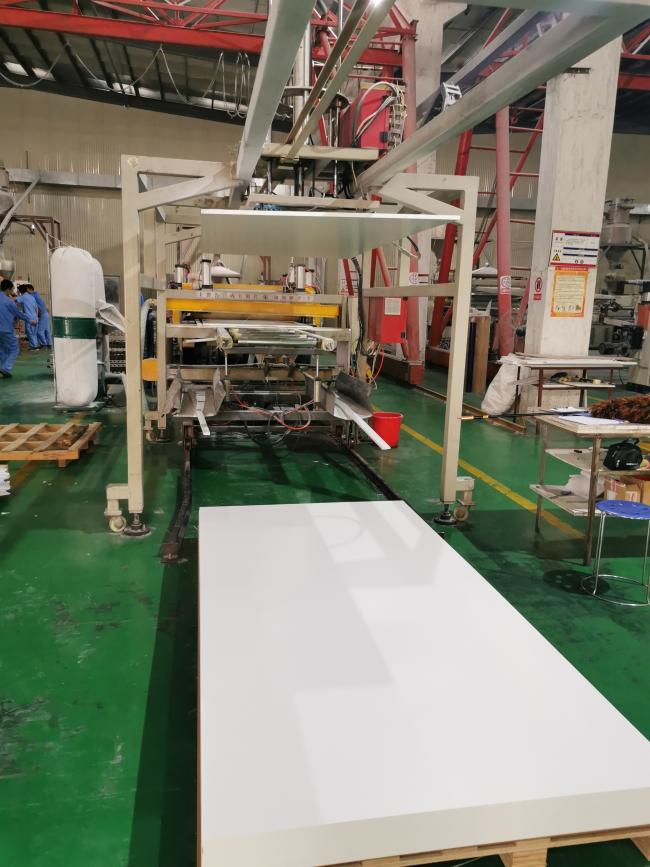

* We are real manufacturer , have 20,000 sqm plant with 6 production lines.
* Our team has more than 15-30 years professional experiences.
* On-time delivery and good service.
* Stable quality with competitive price.
* Strict QA/QC system.
