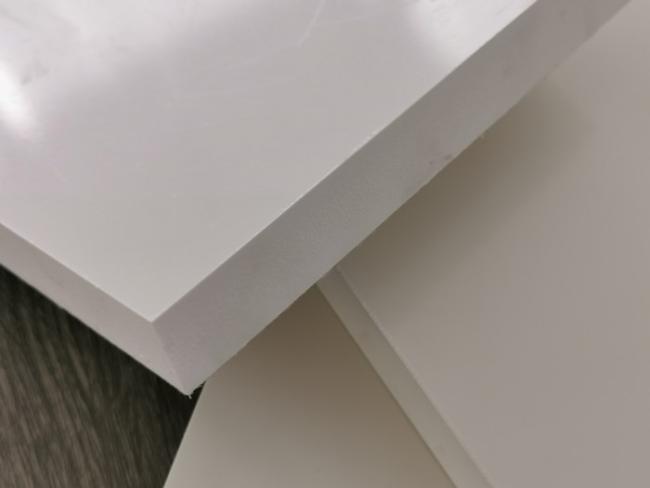

Celuka 15mm 4x8ft PVC Foam Board For Cabinet Furniture
15mm Kitchen Cabinets Pvc Foam Board High Density Pvc Sheet Pvc Celuka Foam Board
PVC Foam Board is a very lightweight man-made material used as a substitute of wood, plywood vim board. PVC board has become popular in building and construction appliances due to its light-weight, durability and cost effectiveness. Suitable for both indoor and outdoor purposes, PVC Foam Boards can be produced with a density range varying from 0.5 to 0.85 gm/cc which is less than the wooden materials. It is ECO friendly and are mostly used in office and residential projects, public buildings, indoor and outdoor decorations, wall panels, ceiling panels, toilets, wash rooms, kitchen cabinets, display panels for advertisement, interiors of public or private transport and industrial purposes.
This 15mm 0.55-0.6 density celuka board is used for Kitchen and bothroom cabinets, lockers and vehicle interior equip, like frame, shelf, also used in the big bus as the bottom and side supporting basis. In Building construction site, Celuka boards have multi-functional applications in indoor / outdoor use, like floor, door, window and fence, bench, partition and decoration etc. Their High density of 0.55-0.6 with high impact of resistance is firm enough, show a durable quality performance.
| Density | size(mm) | thickness(mm) | size(ft) | thickness(in) | Weight(kg) |
| 0.55-0.6 | 1220x2440 | 15 | 4x8 | 3/5" | 24.58-26.82 |
Physical Data
| Test Item | Standard | ||||
| A | B | C | |||
| 1 | Density/(g/cm3) | 0.40＜ρ≤ 0.5 | 0.50＜ρ≤0.65 | ρ﹥0.65 | |
| 2 | Shore Durometer (D) | ≥50 | ≥55 | ≥60 | |
| 3 | Vicat Softening/℃ | ≥60 | ≥70 | ≥70 | |
| 4 | Heated Size Difference/% | ±2 | ±2 | ±2 | |
| 5 | Water Absorbance/% | ≤4 | ≤2 | ≤1 | |
| 6 | Screw Holding Force/N | ≥600 | ≥800 | ≥1000 | |
| 7 | Tensile Strength/MPa | Latitude | ≥5 | ≥6 | ≥10 |
| Horizontal | ≥4 | ≥5 | ≥6 | ||
| 8 | Tensile Strain/% | Latitude | ≥6 | ≥8 | ≥10 |
| Horizontal | ≥5 | ≥6 | ≥8 | ||
| 9 | Charpy Impact Strength/(kJ/m ²) | Latitude | ≥10 | ≥12 | ≥20 |
| Horizontal | ≥7 | ≥9 | ≥16 | ||
| 10 | Bending Strength/MPa | Latitude | ≥14 | ≥18 | ≥22 |
| Horizontal | ≥8 | ≥12 | ≥16 | ||
| 11 | Flexural modulus of elasticity /MPa | Latitude | ≥600 | ≥800 | ≥1000 |
| Horizontal | ≥600 | ≥800 | ≥1000 | ||
| Note:A type with thickness ＜10mm No shore D test requirement, B&C type＜3mm No Shore D test requirement . | |||||
Boto PVC boards Processing Spec:
| tem | Foam Tech | Part No. | Length(mm) | Width(mm) | Thichness(mm) | Density(g/cm3) | Note |
| 1 | Free Foam | BTZ-0X0-X | 2440/3050 | 1220 | 1-5mm | 0.5-0.9 | Matt Surface |
| 2 | Celuka | BTJ-0X0-X | 2440/3050 | 1220 | 5mm-30mm | 0.45-0.75 | Smooth/Matt surface option |
| 3 | Co-Extrusion |
BTG-0X0-X
|
2440/3050 | 1220 | 3mm-18mm | 0.45-0.75 | Glossy Surface |
| 4 | Color |
Current Y1. Y2 . Y3 available. Custom Made Optional |
|||||
