Outdoor Strip Transparent Glass LED Screen 4416pixel/Sqm
Outdoor Strip Transparent Glass LED Screen 4416pixel/Sqm
Minvol has been specialized in LED field since 2011. We are a leading manufacturer an provider of technical solution of full color indoor and outdoor led display,rental LED display, led modules where in Shenzhen city ,Guang dong province,China. Transparent glass LED display is a special product in LED display industry. It looks cool and attractive. Because it is transparent, it will not block the sight view behind the glass. Main applications sites are: shopping mall, 4S store, corporate building, etc.
Product parameters
| Product Name: | P10.4 transparent glass screen |
| Item No: | MH-ZHP-P10.4 |
| Light Source Model: | 2121 |
| Size/Unit: | 1500mm(L)*500mm(H) |
| Viewing Angle: | H120°/V120° |
| Power(W)/㎡: | 400W/㎡ |
| Average Power/㎡(W): | 120W/㎡ |
| Voltage: | AC220V |
| Pixel Pitch(mm): | 10.4mm(H)*10.4mm(V) |
| Resolution: | 92pixel*48pixel/Unit |
| LED quantity/㎡(PCS): | 4416 pixel/㎡ |
| Brightness(CD/㎡): | ＞4200CD/㎡ |
| Grey Scale: | 65536 |
| Refresh Rate(Hz): | ＞3840Hz |
| Transparency: | ＞90% |
| Weight: | 10kg/Unit |
| Protection Grade: | IP66 |
| Operation Temperature: | -20℃~45℃ |
| Life Time: | ≥100000 hours |
| Related Cert.: | CE RoHS FCC |

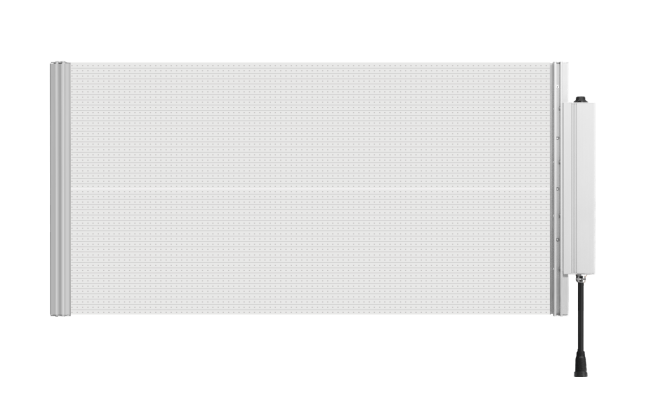

Product pictures
Module size
Product Installation Schematic
Projects pictures
