Triangle Transparent Outdoor Advertising LED Screen Foldable
Triangle Transparent Outdoor Advertising LED Screen Foldable
Product features
1.Easy control
Adopting parallel transmission, each light bar can work independently, do not effect other light bars work, and light bar can be any customized, so that can meet any different requirements.
2. High brightness
LEDs on the LED light bars adopt SMD3535 with good color uniformity, brightness up to above 6500CD per sqm., completely can meet requirements of daytime display.
3.High level protection
IP66, it suitable for indoor or outdoor, use aircraft aluminum extrusion, the surface is treated with special environmentally-friendly dichromate solution, with good cooling and anti-corrosion function.
Product parameters
| Product Name: | P16 LED Triangle mesh screen |
| Item No: | MH-TRI-SMD-P16A/B |
| Light Source Brand: | Epistar |
| Light Source Model: | SMD3535 |
| Size/Unit: | 591.2mm(L)*495.4mm(H) |
| Viewing Angle: | H120°/V120° |
| Power(W)/㎡: | 600W/㎡ |
| Average Power/㎡(W): | 200W/㎡ |
| Voltage: | AC85~265V |
| Pixel Pitch(mm): | 16mm(H)*16mm(V) |
| LED quantity/㎡(PCS): | 3383pixel/㎡ |
| Brightness(CD/㎡): | ＞6500CD/㎡ |
| Grey Scale: | 65536 |
| Refresh Rate(Hz): | ＞11520Hz |
| Transparency: | ＞32% |
| Weight: | 2.7kg/unit |
| Protection Grade: | IP66 |
| Operation Temperature: | -20℃~45℃ |
| Life Time: | ≥50000 hours |
| Related Cert.: | CE RoHS FCC |

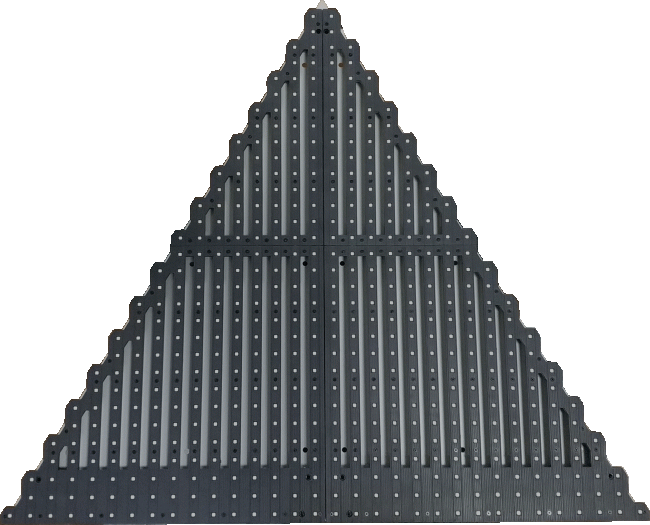

Product pictures

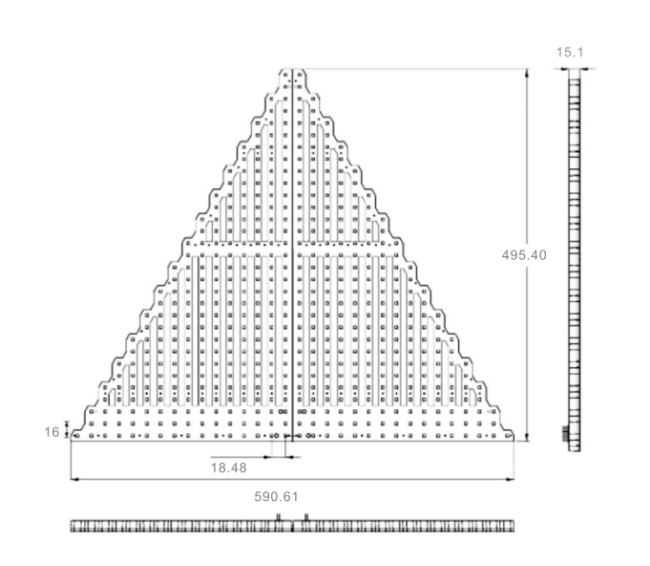

Structure picture

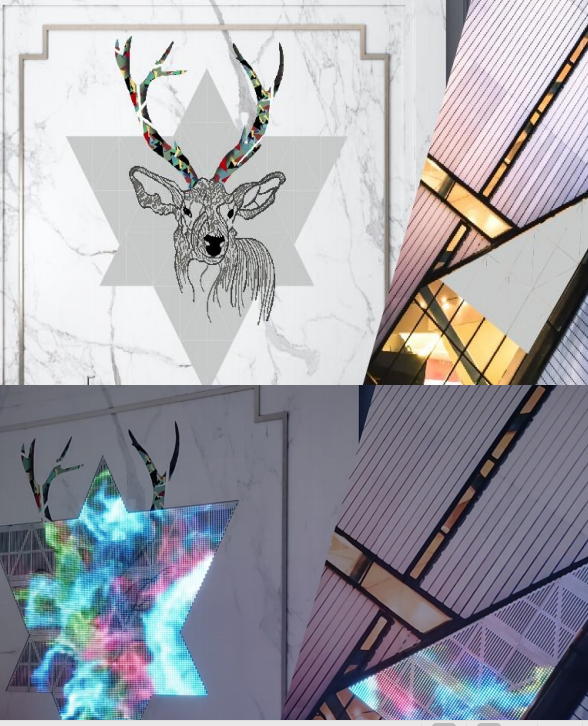

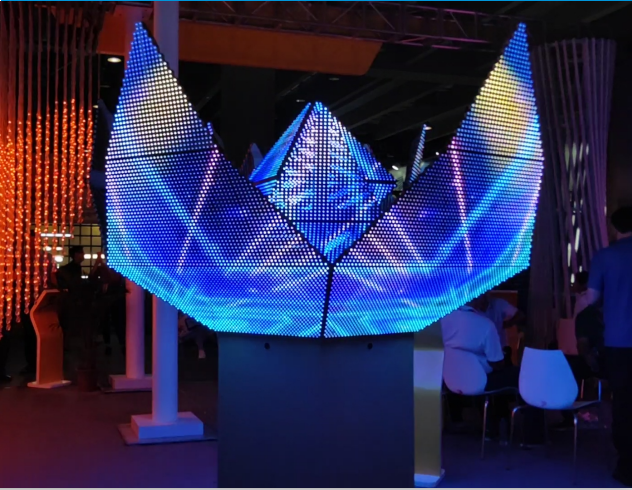

Projects pictures
