P31.25 Foldable Flexible See Through Led Screen Building Soft Led Screen
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
negotiable
Brand:
Minvol
Product Description
Product description
P31.25 Transparent Wall Outdoor Foldable Flexible Led Pixel Screen Led Grid Screen For Building Outdoor Led Mesh Media
LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display.
Product parameters
| Product Name: | P31.25*50 LED transparent media screen |
| Item No: | MH-G-2R2G2B-P31.25*50E |
| Light Source Brand: | Epistar |
| Light Source Model: | 346 2R2G2B DIP |
| Size/Unit: | 1500mm(L)*800mm(H) |
| Viewing Angle: | H120°/V60° |
| Power(W)/㎡: | 210W/sqm |
| Average Power/㎡(W): | 70W/sqm |
| Voltage: | DC36-48V |
| Pixel Pitch(mm): | 31.25mm(H)*50mm(V) |
| Light Bar Size(mm): | 14mm*1500mm |
| Resolution: | 16pixel*48pixel/Unit |
| LED quantity/㎡(PCS): | 640 pixel/sqm |
| Brightness(CD/㎡): | ＞5760CD/sqm |
| Grey Scale: | 65536 |
| Refresh Rate(Hz): | ＞5000Hz |
| Transparency: | ＞72% |
| Weight: | 9kg/sqm |
| Protection Grade: | IP67 |
| Operation Temperature: | -20℃~50℃ |
| Life Time: | ≥50000 hours |
| Related Cert.: | CE RoHS FCC |
Product pictures

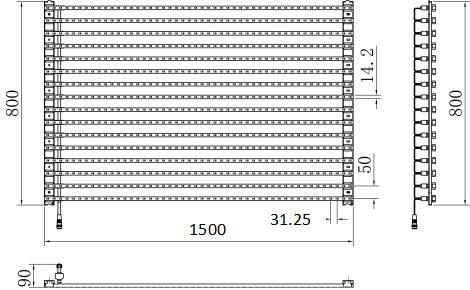

Module size
Product Installation Schematic
Control Diagram
Projects pictures
