Extrem Thin Ultra Light High Transparency P25 Screen Easy Replacement Digital Signs transparent screen
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
15-25 Days
Brand:
Minvol
Product Description
Extrem Thin Ultra Light High Transparency P25 Screen Easy Replacement Digital Signs Transparent Screen
Product description
LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display. The screen adopts aluminum alloy light bar splicing, each group of light adopts signal isolation technology, even single bar has been broken, still can not influence cach other.
Product parameters
| Product Name: | P25*50 LED louver screen |
| Item No: | MH-G-2R2G2B-P25*50E |
| Light Source Brand: | Epistar |
| Light Source Model: | 346 2R2G2B DIP |
| Size/Unit: | 1200mm(L)*800mm(H) |
| Viewing Angle: | H120°/V60° |
| Power(W)/㎡: | 260W/sqm |
| Average Power/㎡(W): | 90W/sqm |
| Voltage: | DC36-48V |
| Pixel Pitch(mm): | 25mm(H)*50mm(V) |
| Light Bar Size(mm): | 14mm*1200mm |
| Resolution: | 16pixel*48pixel/Unit |
| LED quantity/㎡(PCS): | 800 pixel/sqm |
| Brightness(CD/㎡): | ＞7200CD/sqm |
| Grey Scale: | 65536 |
| Refresh Rate(Hz): | ＞5000Hz |
| Transparency: | ＞72% |
| Weight: | 10.8kg/sqm |
| Protection Grade: | IP67 |
| Operation Temperature: | -20℃~50℃ |
| Life Time: | ≥50000 hours |
| Related Cert.: | CE RoHS FCC |
Product pictures
Module size
Product Installation Schematic
Control Diagram

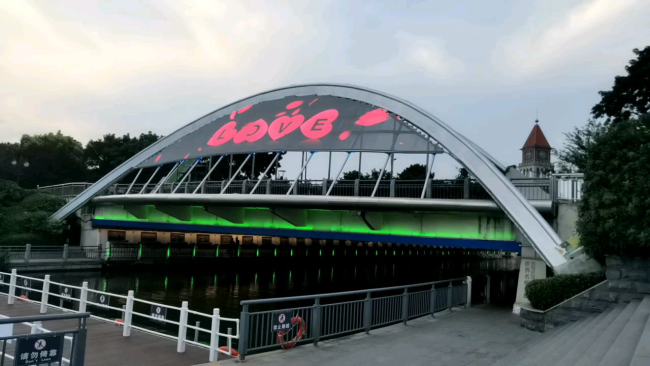

Projects pictures
